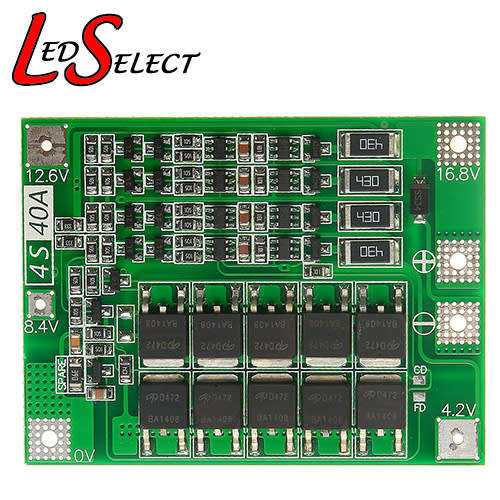

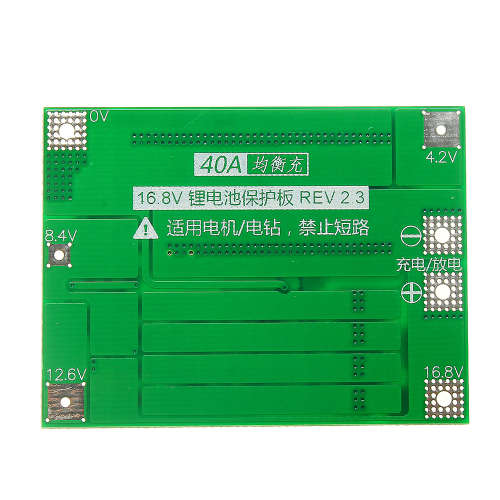

Battery 18650 Protection and Balance Board 4s 16.8V 40A LOCAL STOCK

Name: Battery 18650 Protection and Balance Board 4s 16.8V 40A **LOCAL STOCK**
SKU: BAT284A
Price: 85.00 ZAR
Availability: SoldOut
Rating: 5 (2 reviews)

5 were available / new

R85.00

Shipping

R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Led Select - Cape Town29868

100.00 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Product details

Condition

New

Location

South Africa

Customer ratings:

2 ratings

Product code

BAT284A

Bob Shop ID

483523815

Battery 18650 Protection and Balance Board 4s 12.6V 40A:

Category: 1100312645 / 1104312645 - Battery 18650

Specifications:

Charge Voltage: 16.8 - 18.1V
Continuous Current: Discharge: 40A / Charge: 20A
Size: 60 x 46 x 1.5mm

Note 1: The successful start of the drill requires three 15C-20C power battery, or six 10C-15C power battery (ordinary 18650 can not start the drill).

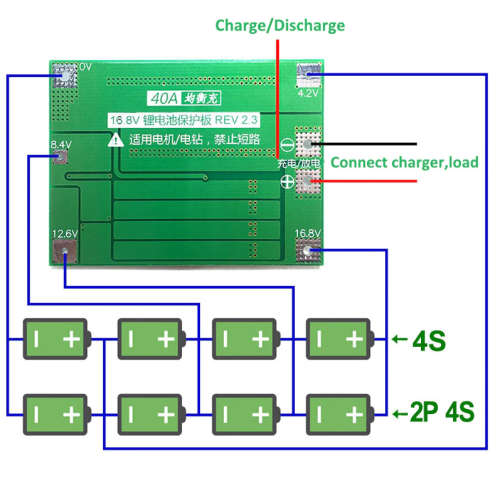

Note 2: strictly according to map wiring 0V, 4.2V, 8.4V, 12.6V, do not deliberately short circuit.
Note 3: When the load of the brush motor is used, try to connect a non-polar capacitor (withstand voltage above 25V, capacity 10uF-100uF) to the motor's positive and negative terminals to prevent the reverse spike from the motor. Break the MOS tube.
Note 4: 3 groups of batteries in series, please ensure that the voltage of each group of batteries, if not the same, please fill each battery separately and then use in series.

For some of the poor basis of electronic customers to explain: balanced charge is only auxiliary functions, try not to put a good battery and poor battery mixed together! 3 sets of battery capacity / resistance closer to the better! (2 good battery +1 Poor battery use effect = 3 poor battery use effect).
