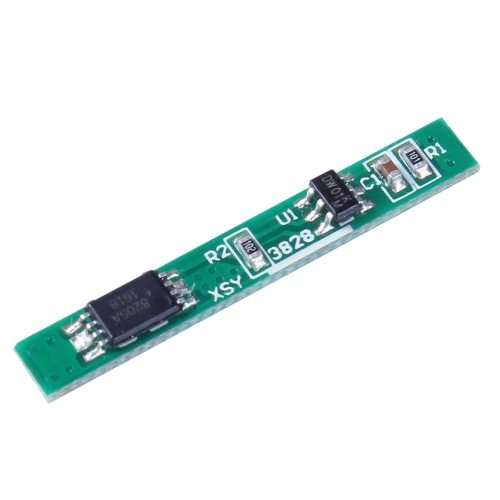

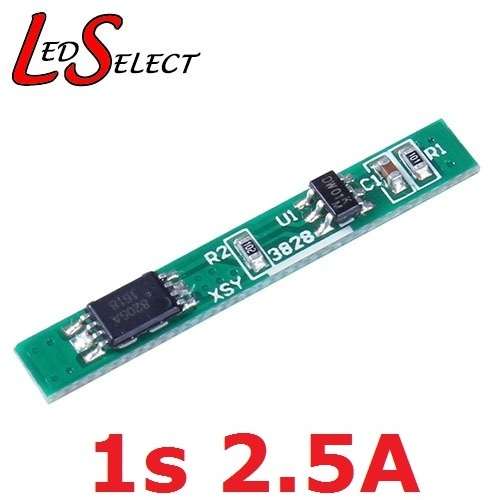

Battery 18650 Protection Board 1S 4.2V 2.5A:
Specifications:
Overcharging Detection Voltage: 4.2 V +-0.025V
Overdischarging Detection Voltage: 2.75V +-0.1V
Working Current: 2.5A
Size: 28 x 3.8 x 1.2mm

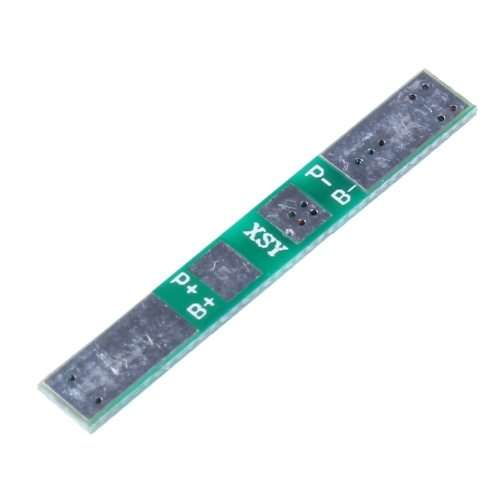

Soldering Point Layout:
1.B+:connect with power positive
2.B-:connect with power negative
3.P+:connect with charging/discharging port positive(charging port/discharging port common used)
4.P-:connect with charging/discharging port negative(charging port/discharging port common used)
