Product details

Condition
New
Location
South Africa
Product code
BAT283
Bob Shop ID
492991385

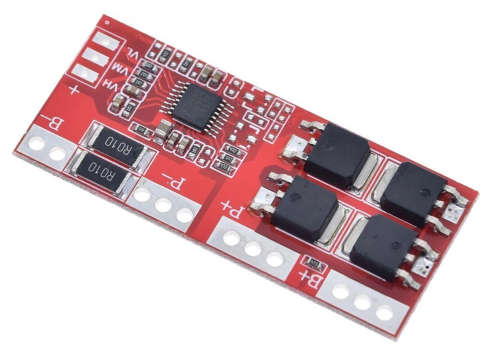

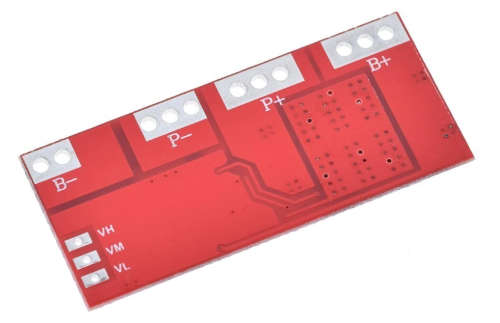

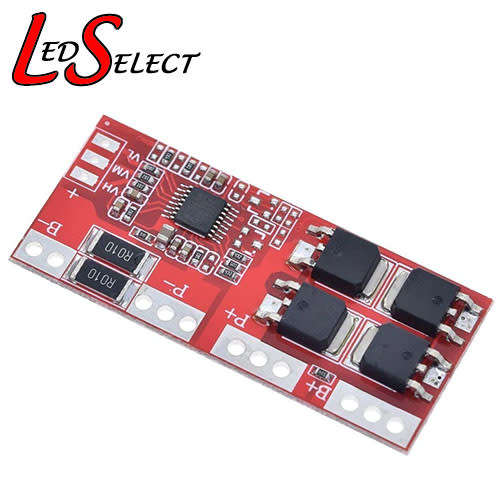

Battery 18650 Protection Board 4s 30A:

Category: 1100312645 / 1104312645 - Battery 18650



Specifications:

Type: Polymer lithium battery protection board
Overcharge Detection Voltage: 4.25V
Overcharge Release Voltage: 4.15V
Over-discharge Detection Voltage: 2.5V
Over Discharge Termination Voltage: 3V
Overcurrent: 20-30A
Operating Current: 30A (free cooling: 10A, plus heatsink: 15A, maximum instantaneous current: 30A)
Termination Condition: Release of protection condition, and then automatic recovery without activation (optional charger activation)
Operating Temperature: -40 to 85 deg C
Connection: Welding output
Size: 50 x 22 x 4mm

Main functions: the overcharge protection function, overdischarge protection, short-circuit protection, over current protection.

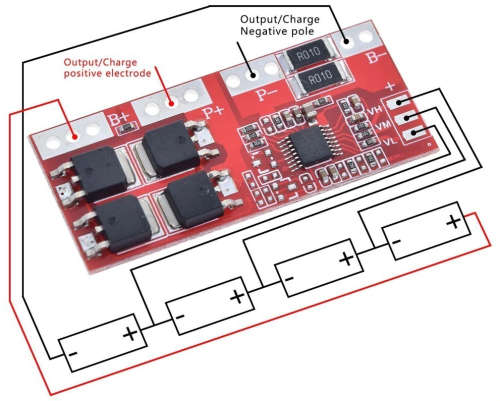

The protection board can be used as a four-series polymer lithium battery pack with a nominal voltage of 14.4V, 14.8V, and 16.8V; there is no high-current-activated current in power applications, and false trigger protection is avoided in inverter applications. Therefore, it is more convenient to use.
