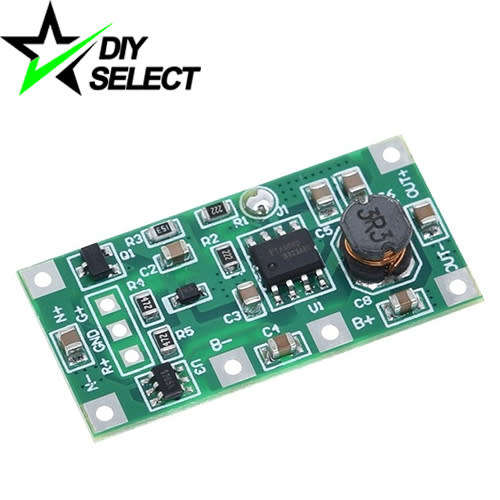

Battery 18650 Step Up UPS Module 5V to 5V 1A **LOCAL STOCK**

Step Up UPS Module 5V to 5V 1A:

Specifications:

Properties: UPS Voltage Converter Module
Working Voltage: 5V DC 1A
Output Voltage: 5V DC 1A
Output Power: 5W
Support Battery: 3.7V Lithium or polymer battery 10Ah(Max)
Working Temperature Range: -40 to 85
Working Humidity Range: 0%-95% RH
Size: 33 x 17 x 4mm

Instructions:

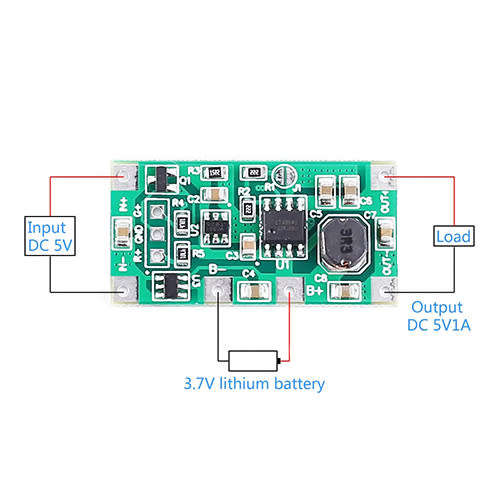

1. Connect right input voltage at input terminal
2. Check output voltage by voltmeter and ammeter
3. Connect battery at B+ and B-

Note:

Its max output current is 1A and can not keep output 1A.
The positive and negative poles of the input power supply cannot be reversed Otherwise the module will be damaged.
Users can install a common anode Red-Blue LED by yourself as charging indicators. Blue light indicates whether there is a load at output. Keep Red is charging. There is no battery if Red flashing. Red OFF if charged.
Due to the large current, it is recommended to use a thicker wire. Wire cross-section greater than 1.5 square millimeters.


Application:

Ordinary power supply; Battery charger; Mobile power; Power conversion; Infrared alarm; Camera. Network equipment such as switches; Router; Battery car modification
