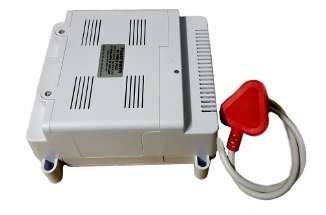

Battery Back-up Power Supply (3.2A)

Battery back-up power supply capable of supplying an uninterrupted 12V supply during power failures.

FEATURES:
¿ Input voltage range from 90VAC to 265VAC
¿ LED status indicator
¿ Input and output fused
¿ Short circuit protected
¿ Overload protected (resettable fuse)
¿ Reverse polarity protected
¿ Deep discharge protection (battery will cut out when voltage falls below 10V)
¿ Input is lightning and surge protected
¿ Changeover from mains to battery is automatic
¿ Mains fail output (can trigger a cellswitch or external LED to warn of a power failure)
¿ Neat and robust flame retardant PVC housing
¿ Supports a 7AH sealed lead acid battery (NOT SUPPLIED)

SPECIFICATIONS:
¿ Input voltage: 90-265VAC
¿ Input frequency: 47Hz to 63Hz
¿ Input current: 800ma (under full load)
¿ Charger output: 13.8V
¿ Output current: 2200mA
¿ Charger current: 1000mA
¿ Total power supply current: 3200mA

DIMENSIONS:
¿ 195mm(w) x 190mm(d) x 80mm(h)
