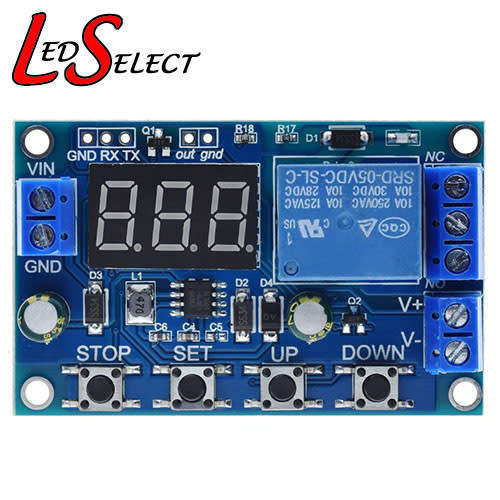

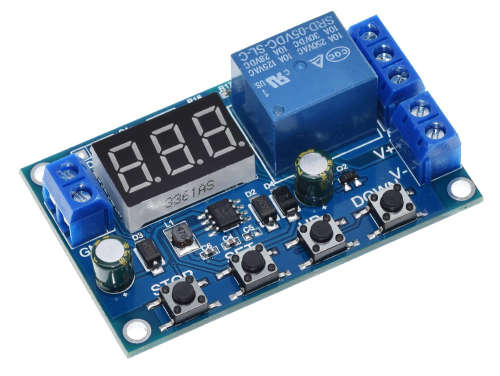

Battery 6-40V Lithium Battery Charger Controller Board:
Category: 1200312645 / 1206312645 - Battery Other
Specifications:
Input Voltage: 6 - 40V DC
Charge / Discharge Time Range: 0 - 999 minutes
Size: 64 x 40 x 18mm
- Battery charge and discharge intelligent control;
- You can set the charge and discharge time;
- With serial communication function, real-time monitoring of the working status of the relay through the serial port;
- Additional signal output, when the relay to meet the conditions, the output high, you can control other equipment.
- A key emergency stop function (STOP button), with reverse protection, reverse does not burn.
How do I set parameters?
1. First, according to their needs, to determine the requirements of the work model;
2. According to the working mode of the relay, in the main interface (when the module is powered on, it will flash the current mode of operation, the default U-1 mode, and then enter the main interface) press the SET button for 2 seconds and then release, enter the selection Mode interface, UP, DOWN button to select the mode to be set (U-1 ~ U-6);
3. After selecting the mode, assume that we have selected the U-1 mode and press the SET button to set the corresponding parameter. The parameter to be set will flash (UL1 voltage upper limit, nL1 voltage lower limit, OP conduction time), press UP, DOWN Key to increase or decrease, you can always press the key to quickly increase or decrease, press the SET button to set the current mode of the next parameter, the process above;
4. Set the parameters, and then press the SET button for 2 seconds to release, the current setting mode will flash, and then return to the main interface, set the parameters of success!
5. In the main interface, press the DOWN key to achieve voltage and time switching.
Mode selection interface: press the SET button for a long time to enter the mode selection interface, set the finished, a long time press the SET button and then release the exit mode selection interface, back to the main interface.
