Battery Charger 12v 24v

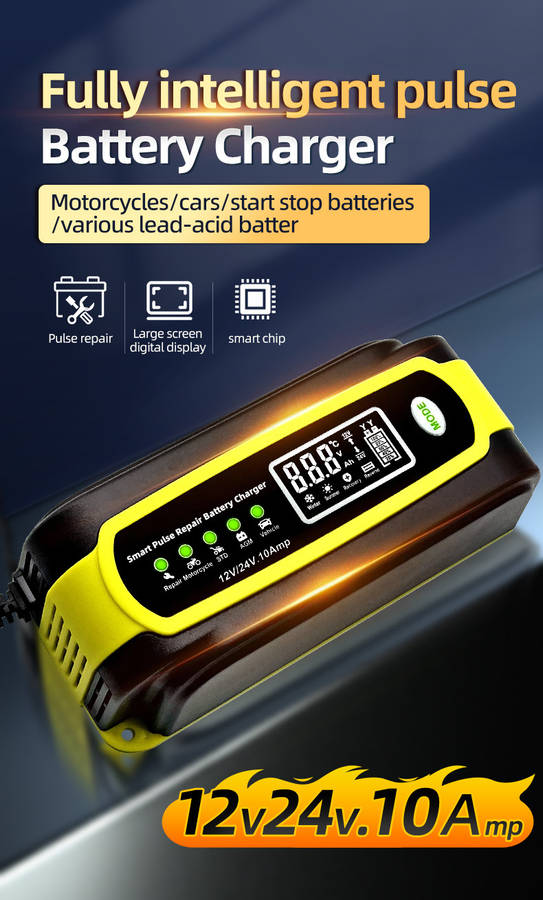

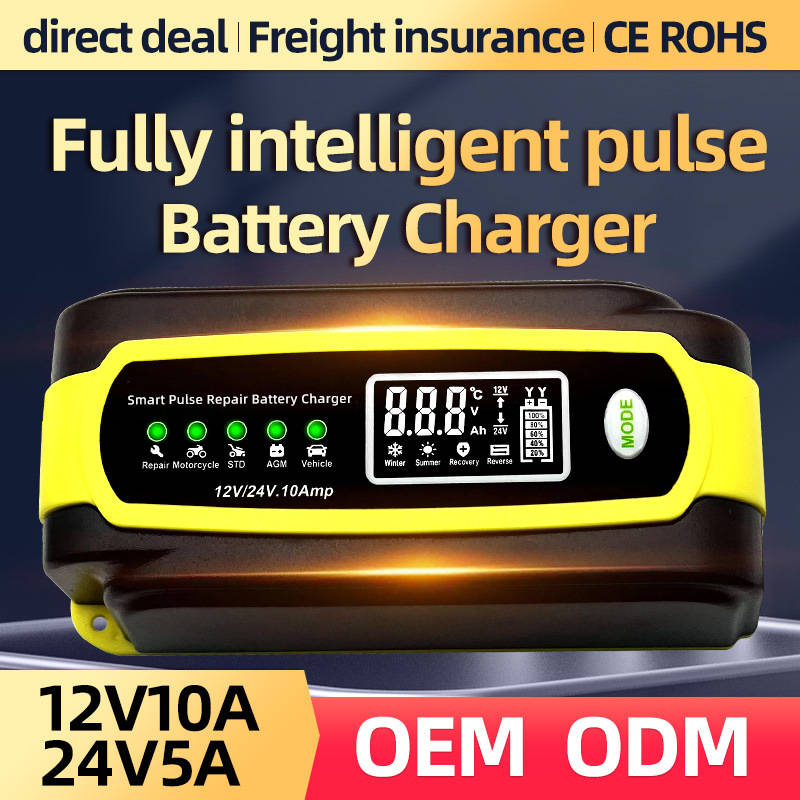

Battery Charger 12v 24v 10Amp Smart General Motors Motorcycle Lead Acid Battery Charger Car Battery Charger

Feature:

One Click Repair Charging: This car battery features a high and low frequency pulse repair mode which helps restore drained batteries.

Temperature Adaptation Mode: The automatically detects the environmental temperature and selects the appropriate charging mode, preventing overcharging in summer.

Digital Display: The has a digital display that cycles through current voltage, current, battery level, and environmental temperature, providing critical battery and charging information.

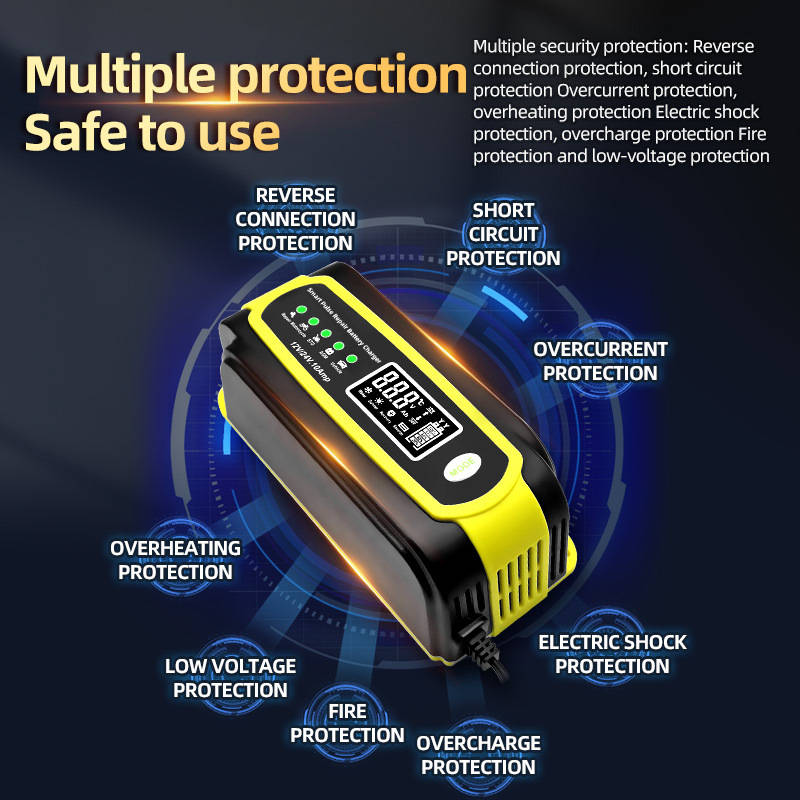

Short Circuit Prevention: The automatically shuts off the output in the event of an accidental short circuit in the output line, offering added security and reliability.

Reverse Polarity Proof: Protect against reverse polarity, if the output lines are connected inversely, the will shut off automatically and issue an audible warning.

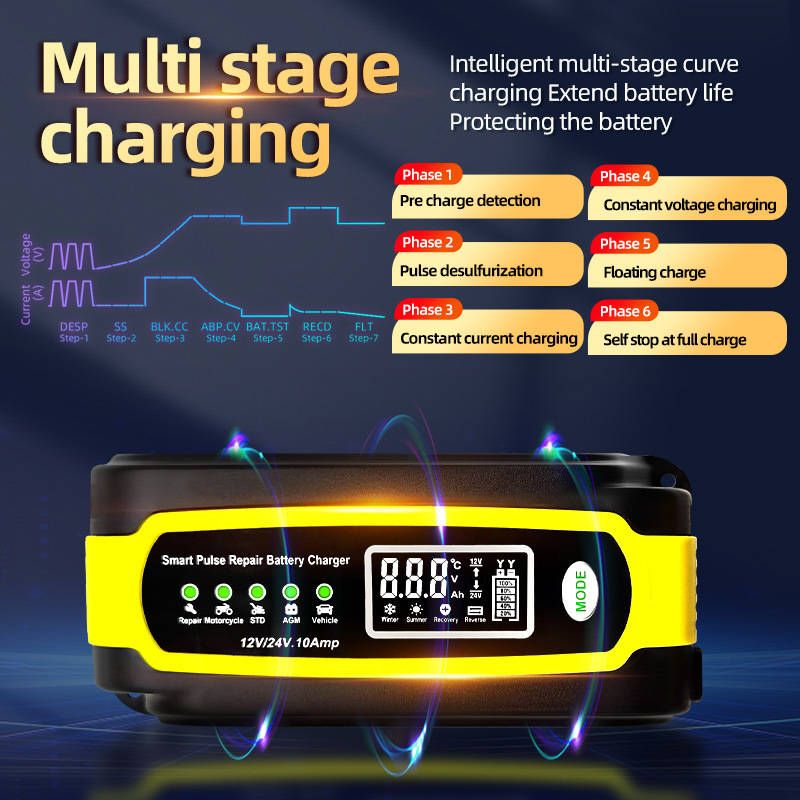

Multi Stage Charging: The includes sulfation, constant current, constant voltage, pulse, float, and full stop modes, ensuring optimal and safe charging for your vehicle's battery.

Specification:

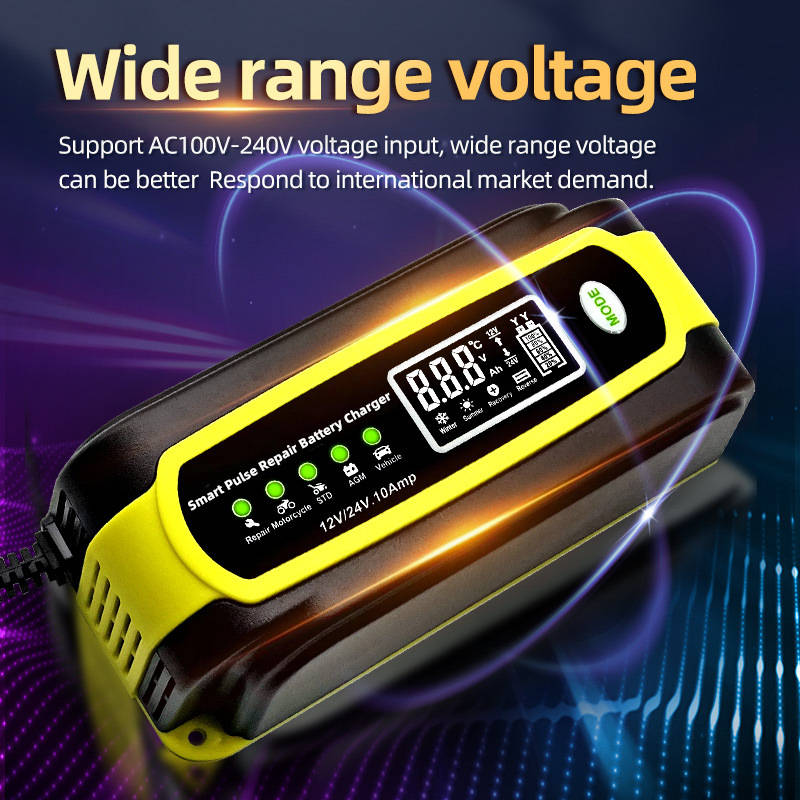

Input Voltage: AC100-240V 50/60HZ

Output Voltage: DC14.4/28.8V±0.3V

Output Current: Charging 12V System: 3A 5A 8A 10A, Charging 24V System: 2A 3A 4A 5A

Peak Power: AC 200W

Efficiency: 85%

Input Line Length: Approx. 900mm / 35.43in

Output Line Length: Approx. 750mm / 29.53in

5 Charging Modes: for 12V System: 10A, 8A, 5A, 3A, Pulse Repair Mode; for 24V System: 5A, 4A, 3A, 2A, Pulse Repair Mode

Plug Voltage 100-240V

Compatible Battery Type: 4AH-150AHA Battery (Lithium Batteries is Forbidden)

Compatibility: Suitable for various 12V 24V 4AH-150AH batteries, such as car batteries, for AGM start stop batteries, batteries, motorcycle batteries, gel batteries, maintenance batteries
