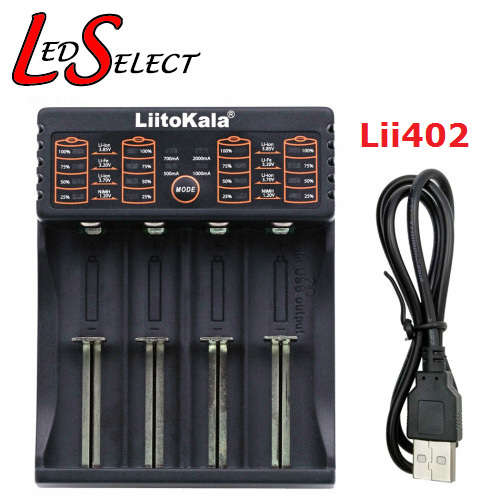

Battery Charger 18650 3.7V Lithium 18650 Liitokala Lii402 **LOCAL STOCK**

Battery Charger 18650 Liitokala Lii402:

Category: 1100312645 / 1106312645 - Battery 18650

Specifications:

Input: Micro USB DC 5V/2A
Output: -1.42V, -4.2V±0.05V, -3.65±0.05V, -4.35±0.05V
Current: 2000mA x1 / 1000mA x2 / 700mA x3 / 500mA x4
Constant Voltage, Cut-off Current: less than 100mAh
Standby Current: less than 15mAh
Size: 112 x 90 x 30mm
Weight: 150 grams
Compatibility: Li-ion IMR: 18650, 18490, 18350, 17670, 17500, 16340(RCR123), 14500, 10440, NiMH, NiCd


USB Output Functions:

Open-circuit Voltage of USB Output: 4.9-5.3V; and the 4th slot is fixed for the USB discharge power source
Output Current: 1000mAh
Open Circuit Current: <1mAh
The corresponding voltage is 4.75-5.25V under 1000mAh current
Cut-off Voltage for Discharge Protection: 3.0±0.1V


Cautions:

1. The charger can charge cylindrical lithium-ion li-ion 1.2V Ni-MH/Ni-Cd, 3.7V LiFePO4 (Li-ion) batteries.
2. Read this manual before use and pay special attention to the recommended charge current, must avoid to charge battery beyond the recommended current limit.
3. 5V USB adapter (adapter current 2A) is recommended.
4. Remove the charger from power source after charging complete, and remove the battery from the charger at the same time.


Specification and Function:

1. Micro USB DC 5V input, four independent charging and micro computer management system
2. Four charging current mode (500mAh/700mAhn/1000mAh/2000mAh), 2000mAh current mode is fixed only on the fourth slot
3. The LED indicators shows the charging status (25%, 50%, 75%, 100%) and also shows the battery type when insert into battery (1.2V Ni-MH , 3.2V Li-Fe, 3.7V Li-ion, 3.85V li-ion)
4. Identify Li-ion and Ni-MH batteries automatically and adjust manually the charging mode for LiFePO4 and 3.85V li-ion batteries
5. Refresh for OV battery. It don’t charge any battery of1.65 -1.85V (refresh current can be detected only)
6. Protection for over-charge and over-discharge and short circuit. Identify broken battery and polar reverse inspection
7. Charging under constant voltage and current
8. Input by DC interface and working voltage is 5V-2A (Micro plug)
9. Built with 5V/1000mAh USB discharge (output) function


Button, LED and Function:

1. Buttons: While electricity is connected,  1) press the button to change the battery type, it will start to charge 5 seconds after setting the battery type (3.2V or 3.85V),  1.2V Ni-MH and 3.7V li-ion ca be detected automatically, so it need set for only 3.2V and 3.8V batteries;  2) change the charging current amount 4 current at any time during charging by long press the button

2. LED: While connect it to 5V input, all LED light up immediately  1) If no battery is put in, 500mAh LED keeps on and others will go out.  2) When battery is detected in, 4 LED lights on AND 3.7V LED keep flicker to indicate to set the battery type, if no operation, it begin to charge 5 seconds later automatically under detection, four LED lights will display the charging status. 3) Tap the button .can show the battery type for 5 seconds. 4) No electricity is connected, insert a battery can quick shows the remaining battery volume.

3. USB Output Indicator: When USB discharging port detected, indicator of battery volume will light up for 10 seconds and go out, press button to light up again.


* Please Note: Batteries shown in picture are not included
