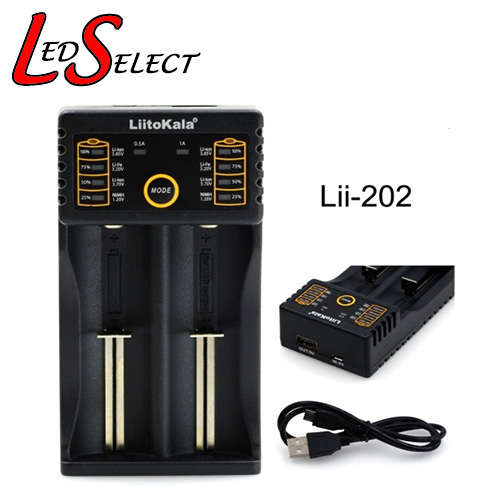

Battery Charger 18650 Liitokala Lii202:
Category: 1100312645 / 1106312645 - Battery 18650
* Please note: Batteries shown in picture are not included.
Cautions:
1. The charger can charge cylindrical lithium-ion li-ion 1.2V Ni-MH/Ni-Cd, 3.7V LiFePO4 (Li-ion) batteries.
2. Read this manual before use and pay special attention to the recommended charge current, must avoid to charge battery beyond the recommended current limit.
3. 5V USB adapter (adapter current 2A) is recommended.
4. Remove the charger from power source after charging complete, and remove the battery from the charger at the same time.
Specification and function:
1. Micro USB DC 5V input, four independent charging and micro computer management system.
2. Two charging current mode (500mAh1000mAh)
3. The LED indicators shows the charging status (25%, 50%, 75%, 100%) and also shows the battery type when insert into battery (1.2V Ni-MH , 3.2V Li-Fe, 3.7V Li-ion, 3.85V li-ion)
4. Identify Li-ion and Ni-MH batteries automatically and adjust manually the charging mode for LiFePO4 and 3.85V li-ion batteries
5. Refresh for OV battery. It don’t charge any battery of1.65 -1.85V (refresh current can be detected only)
6. Protection for over-charge and over-discharge and short circuit. Identify broken battery and polar reverse inspection
7. Charging under constant voltage and current
8. Input by DC interface and working voltage is 5V-2A (Micro plug)
Button, LED and function:
1. MODE Button:
Press the button to select the battery type when insert into a battery. It begin to charge the battery after fixing the battery type (please noted that it identify Li-ion and Ni-MH automatically, don’t need to select manually)
Press the button and hold it for 2 seconds whenever after connection to power, it can switch the charging current between 0.5A and 1.0A;
2. LED Indicator:
Connect the charger to power, all LED indicators will be on, when no battery insert after 5 seconds, LED indicators will be off except the 0.5A current indicator
When battery is inserted into the charger, 4 LED indicator will be on and 3.7V LED indicator flicker, then, please click the MODE button to fix the correct battery type. It will begin to charge the battery 5 seconds later, and the LED indicator will show the charging status.
Press the MODE button to show the battery type (5 seconds) during charging and return to show the charging status
It can shows the battery’s remaining power when put battery into the charger (no connection with charging power)
3. USB output indictor:
When USB output is detected, the battery volume indictors will be on for 10 seconds and then off, click the button to show the battery’s volume rate.
Specifications:
1. Input: Micro USB DC 5V/2A
2. Output:-1.42V, -4.2V±0.05V, -3.65±0.05V, -4.35±0.05V
3. Current: 500/1000mAh
4. Constant voltage, cut-off current: less than 100mAh
5. Standby current: less than 15mAh
6. Weight: 86 grams
7. Size: 112mm x 60mm x 30mm (L x W x H)
8. Compatibility: Li-ion/IMR: 18650, 18490, 18350, 17670, 17500, 16340(RCR123), 14500, 10440
USB Output functions:
1. Open-circuit voltage of USB output : 4.9-5.3V
2. Output current: 1000mAh
3. Open circuit current: <1mAh
4. The corresponding voltage is 4.75-5.25V under 1000mAh current
5. Cut-off voltage for discharge protection: 3.0±0.1V
