Name: Battery Charger Time Start Stop Display DC 6-60V 10A XY-L10A **LOCAL STOCK**
SKU: BAT614B
Price: 129.00 ZAR
Availability: InStock

Battery Charger Time Start Stop Display DC 6-60V 10A XY-L10A **LOCAL STOCK**

1 available / new

Only 1 left – grab it before it’s gone!

R129.00

Shipping

Free shipping is available from Diy Select - Cape Town for all orders above R2,000.00, using one of our trusted couriers.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Diy Select - Cape Town8497

100.00 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Product code

BAT614B

Bob Shop ID

645246416

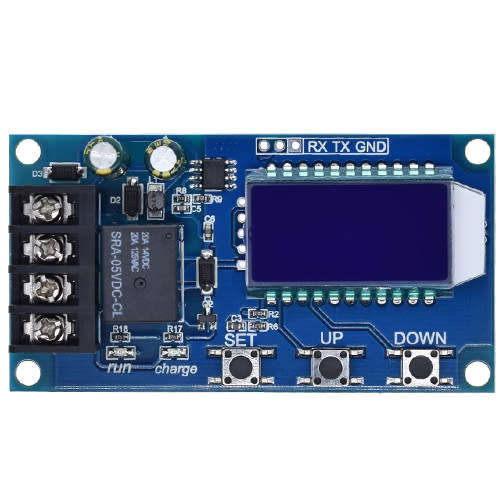

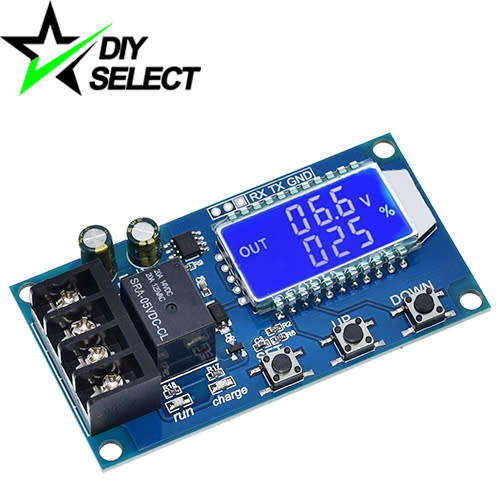

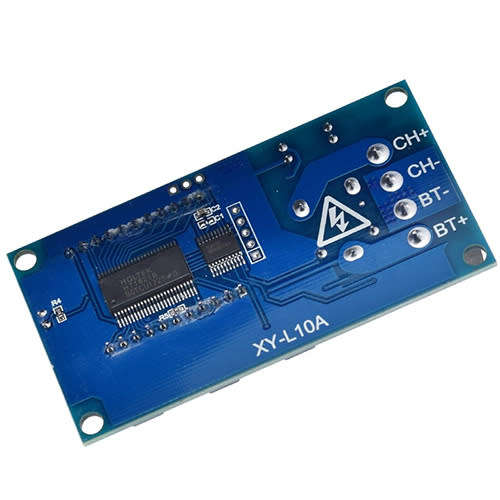

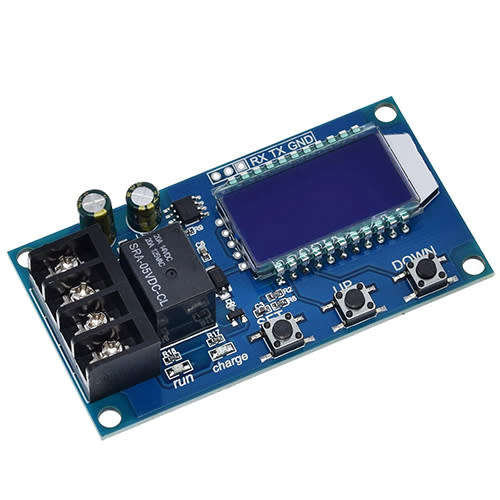

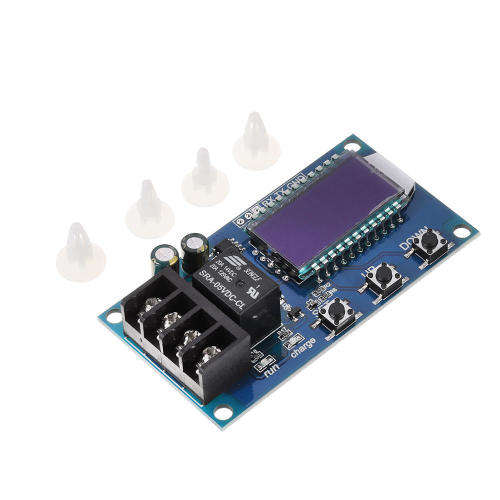

Battery Charger Controller Board with Timer:

Specifications:

Control Voltage: DC 6-60V
Control Current: 10A (Max)
Control Precision: 0.1V
Output Type: Direct output
Suitable for battery: Storage Battery, Lithium battery
Physical Size: Approx.79 x 42 x 18mm
Application: Car, Electric car, Factory, Communications room, Radar station, Computer room

- LCD display
- Display battery voltage
- Percentage of electricity
- Time adjustable
- Working status indicator
- Support UART Set
- Automatic protection battery

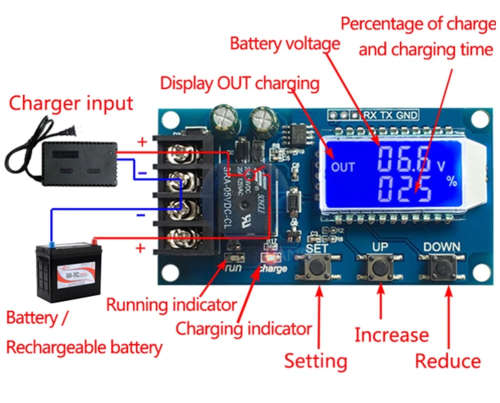

Explanation: This is a voltage charge start and stop control board, where you are able to set/adjust the stop and start charge voltage for any type of battery. (eg. 12V Lithium Battery) for example set the stop charge voltage at 14.6V and the start charge voltage for example at 11V. You still need to connect your 14.4-14.8V DC Power supply to the input and connect your Battery to the output of the control Board. When the battery reaches the set full charge voltage, then the Control board will disconnect your DC power supply from charging the battery, and when your battery reaches the set low voltage, then the control Board will reconnect your DC power supply and charge the battery until it reaches full charge voltage again. Check the specs of your battery such as: Max full charge voltage to ensure you set the stop charge voltage accordingly on the control board. Also check the Max charging current of your battery to enable you to select the correct DC Power Supply to purchase.
