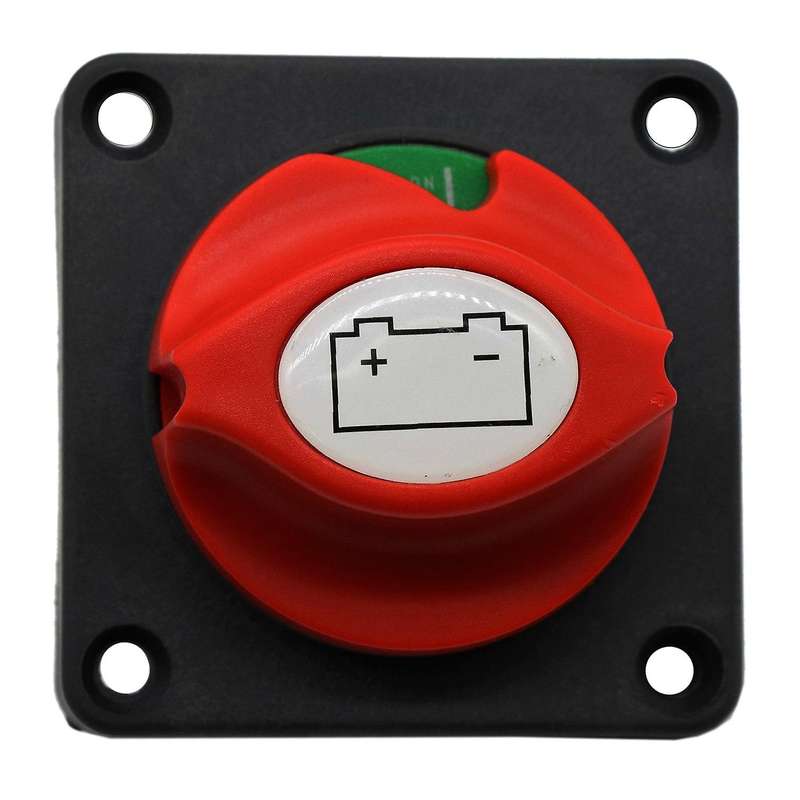

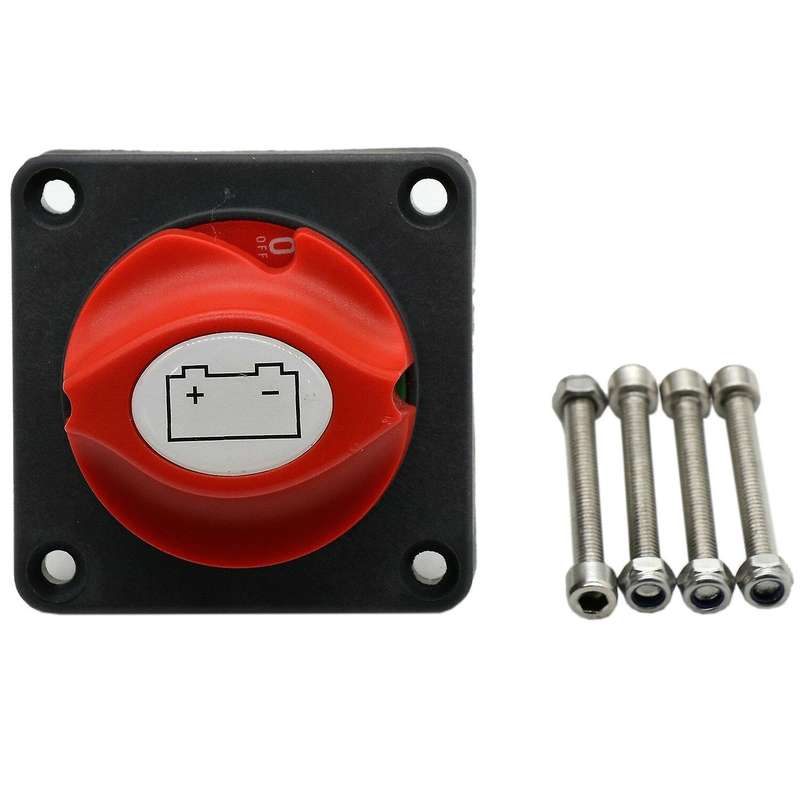

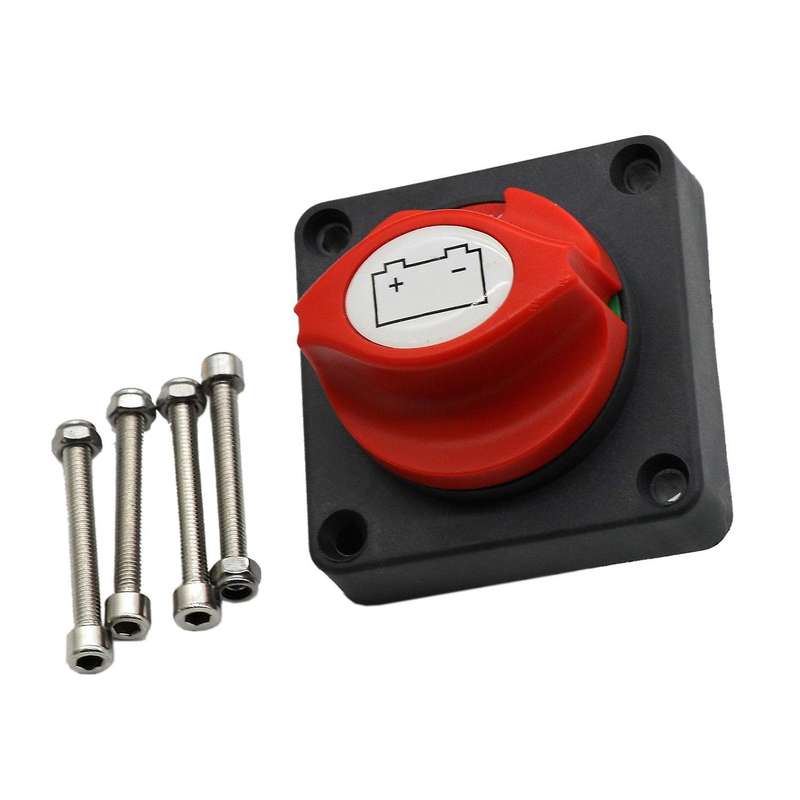

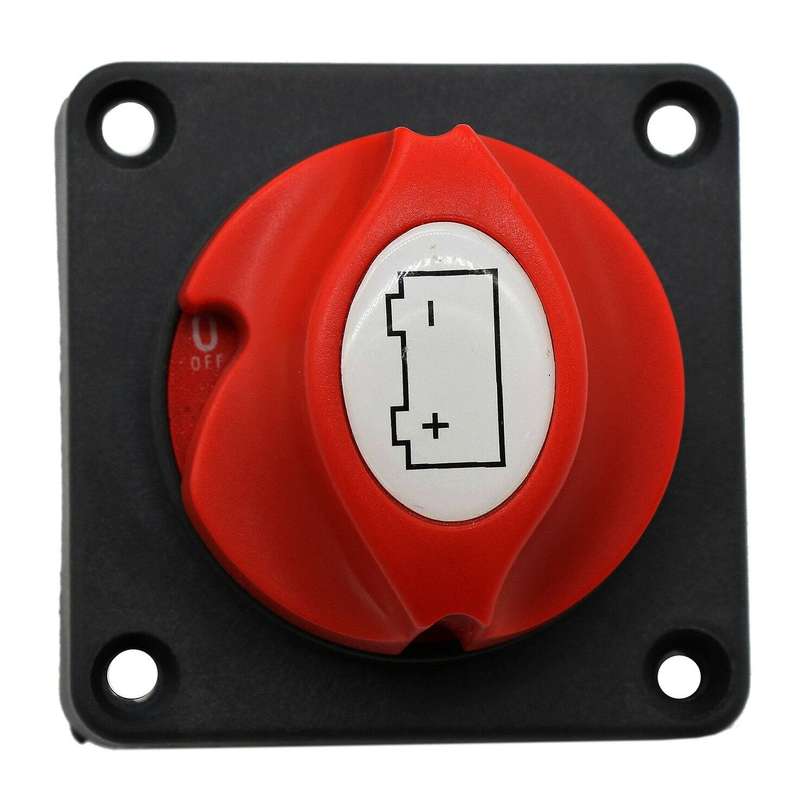

Battery Disconnect Cut On/off Rotary Switch 12v Boat Rv Atv

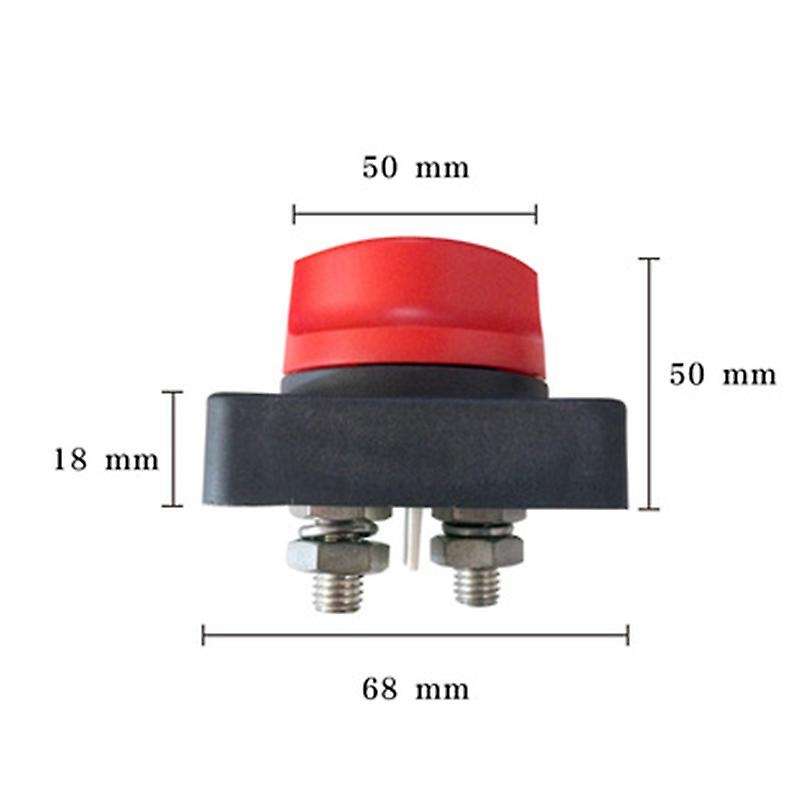

This item is widely used in all kinds of RV ,boats, , winch power cable, both apply to the inside or the outside electrical equipment's switch ,such as flashing light, chassis light, fog light, dome light and soon.durable, non-corrosive, ABS plastic housing to resist the harsh marine conditions.Easy to install, it could stand alone, or locked together with other switches to isolate and secure the electrical system with 12V up to 48V systems.Switch to an counterclockwise 45 degree position to remove the control konb. this control knob has an interchangeable labeling system allowing a full range of applications.Three removable side plates provide access of up to 1/0 cables.The rear cover insulating the rear terminals against any short circuits to meet ABYC requirementsEngine must be stopped before selecting OFF.this is to protect the alternator.Eliminate any power draw from the battery when are not in use.Specifications:Voltage:12V, 24V, 48V DCContinuous current:275ARated current:600AStart current:1250AIntermittent current:455ADielectric strength:1500VAC/1minElectric Current:100A-600AMounting Screw Diameter:10mmDimensions: 68x50mm Operation:On/OffColor:Black and RedMaterial: ABSPackage Contents:1 x battery switch4 x mounting screws4 x nutOnly the above package content, other products are not included.Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
