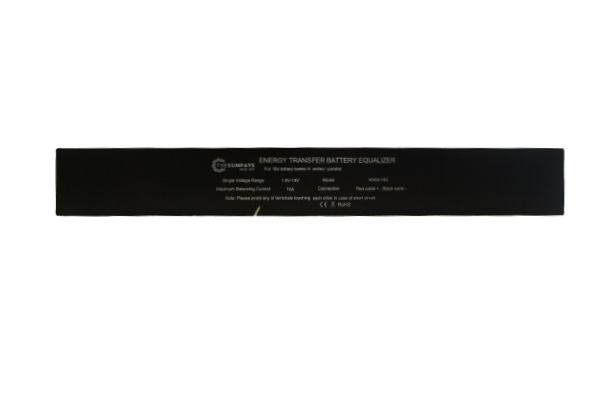

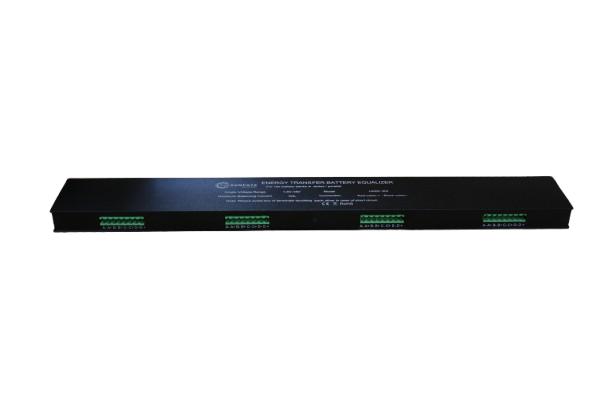

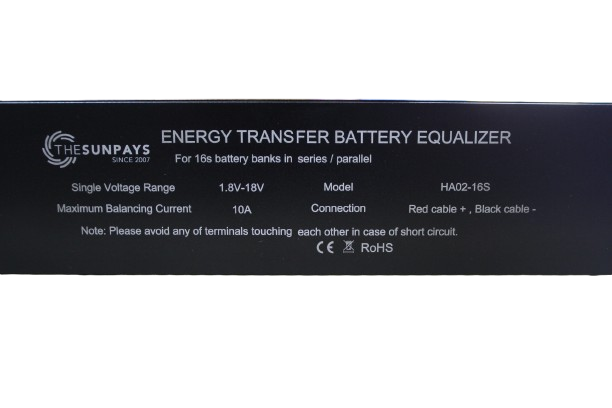

Battery equalizer for up to 16 batteries

Model : HA02-16S

Features :

• Can equalize 2 batteries up to 16 batteries.
• Works with series-connected batteries or parallel connected batteries.
• Battery nominal Voltage : 2.4V, 3.6V, 6V, 9V or 12V
• Optimizing current : 0 - 10A
• Will not work with batteries lower than 1.8V
• Starts equalizing when a difference of 10mV is detected between batteries.
• Uses energy transfer from higher voltage batteries to lower voltage batteries.
• Suitable for lead-acid (VRLA), Lithium Iron Phosphate (LFP), Nickel Cadmium secondary (Ni/CD) & Nickel-metal Hydride secondary (Ni/MH) batteries.
• Protection : reverse-polarity protection.

PLEASE NOTE :

• NOT SUITABLE for Lithium batteries with built-in battery manage systems (BMS)
• When connected to only 4, 8 or 12 batteries, the remaining cable-connectors can be left vacant.

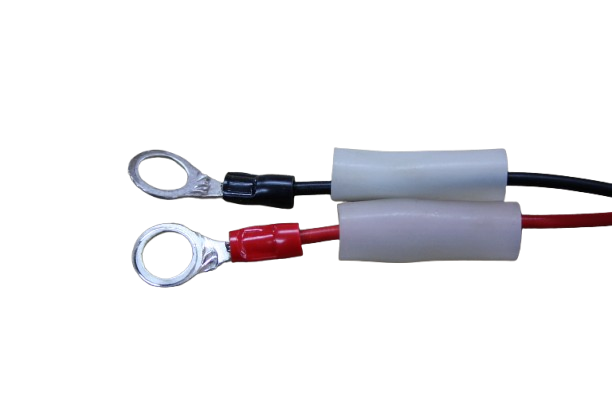

• ALWAYS leave plastic sleeve protection on the lugs that are not connected to anything, to avoid short-circuit.
• First connect all POSITIVE lugs, then all NEGATIVE lugs.
• Avoid any of the terminals touching each other.
• 12 month warranty

What's in the box ?

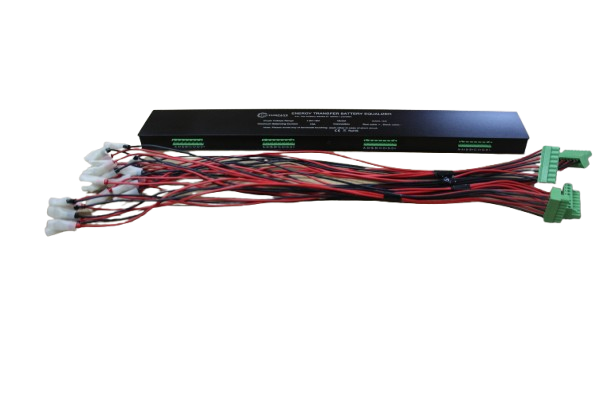

• 1 x 16 batteries-equalizer.

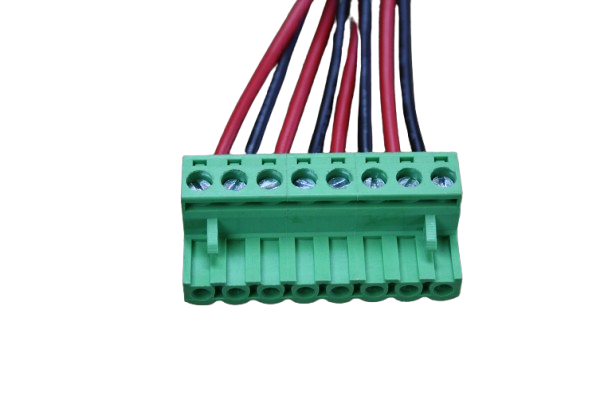

• 4 x 8-way screw connectors with lugs.
• User manual

Dimensions :

489 x 66 x 23mm and approx 3kg
