Battery LifePO4 Protection and Balance Board 4s 20A:



Specifications:

Charging Voltage: 14.4V (3.6V x 4 batteries = 14.4V Fully Charged)
Over Charging Voltage: 3.75V
Over Discharge Voltage: 2.1V
Balance Voltage: 3.6V
Max Working Current: 20A

Led Display: Yes
Size: 36 x 18mm

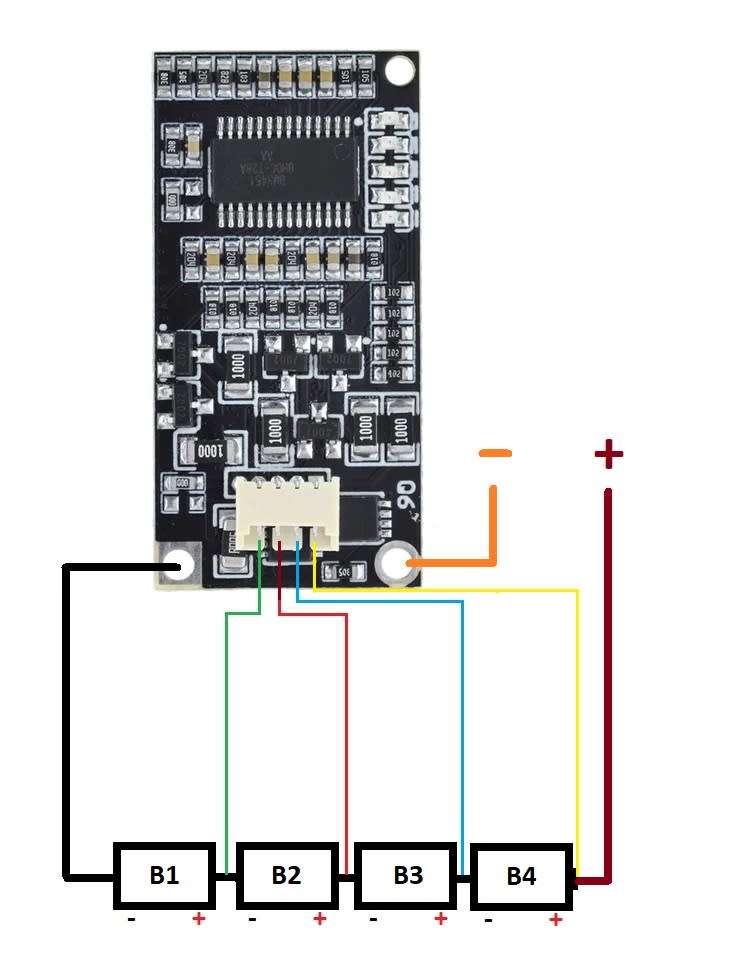

Welding Points:

Connect Black Wire to battery 1 negative
Connect Green Wire to the point between battery 1 and battery 2
Connect Red Wire to the point between battery 2 and battery 3
Connect Blue Wire to the point between battery 3 and battery 4
Connect Yellow Wire to battery 4 positive

First contact the Black Wire to battery one and add one battery at a time till the last B4, otherwise it may cause the damage to the board. Wire colour in diagram is just an example to show the order of connection and does not reflect the actual wire colours.
