Battery LifePO4 Protection and Balance Board 4s 20A **LOCAL STOCK**

Battery LifePO4 Protection and Balance Board 4s 20A LOCAL STOCK

Name: Battery LifePO4 Protection and Balance Board 4s 20A **LOCAL STOCK**
SKU: BAT229
Price: 99.00 ZAR
Availability: InStock

3 available / new

Only 3 left – grab it before it’s gone!

R99.00

Add to watchlist Watch

Shipping

Free shipping is available from Diy Select - Cape Town for all orders above R2,000.00, using one of our trusted couriers.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Diy Select - Cape Town8498

100.00 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Product details

Condition

New

Location

South Africa

Product code

BAT229

Bob Shop ID

645206639

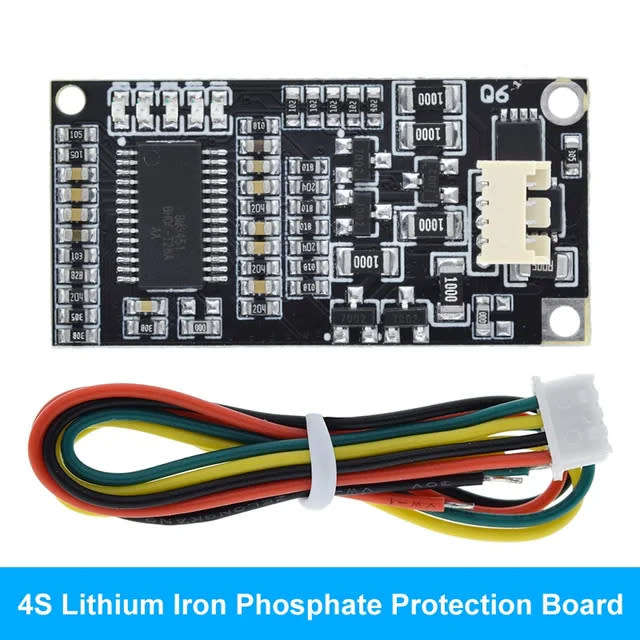

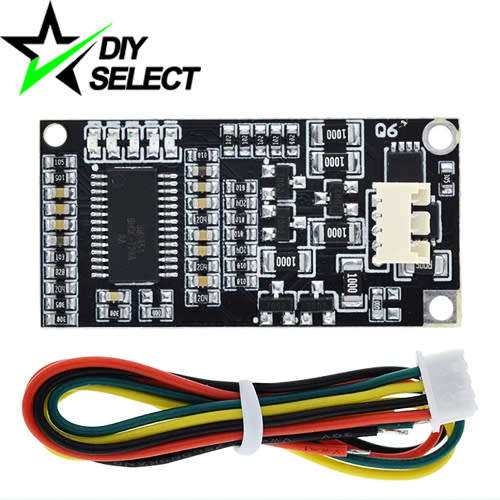

Battery LifePO4 Protection and Balance Board 4s 20A:

Specifications:

Charging Voltage: 14.4V (3.6V x 4 batteries = 14.4V Fully Charged)
Over Charging Voltage: 3.75V
Over Discharge Voltage: 2.1V
Balance Voltage: 3.6V
Max Working Current: 20A
Led Display: Yes
Size: 36 x 18mm

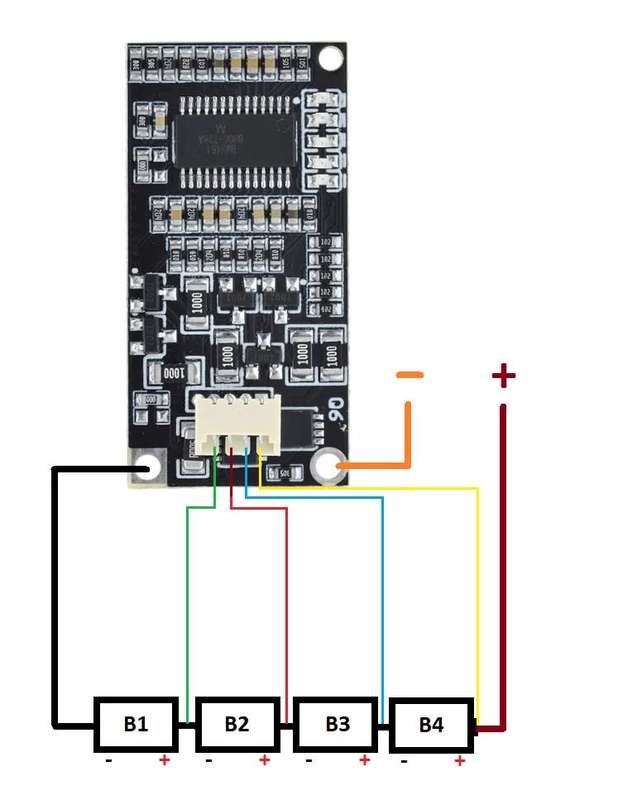

Welding Points:

Connect Black Wire to battery 1 negative
Connect Green Wire to the point between battery 1 and battery 2
Connect Red Wire to the point between battery 2 and battery 3
Connect Blue Wire to the point between battery 3 and battery 4
Connect Yellow Wire to battery 4 positive

First contact the Black Wire to battery one and add one battery at a time till the last B4, otherwise it may cause the damage to the board. Wire colour in diagram is just an example to show the order of connection and does not reflect the actual wire colours.
