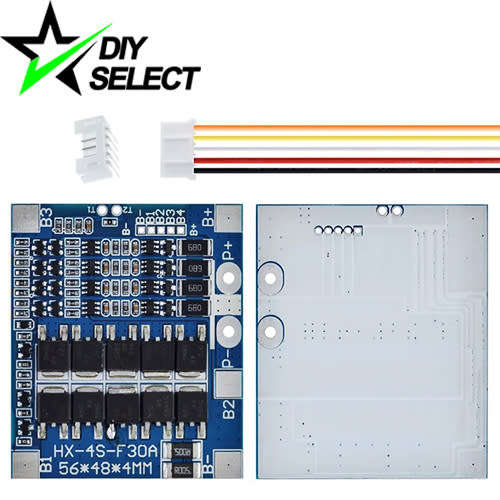

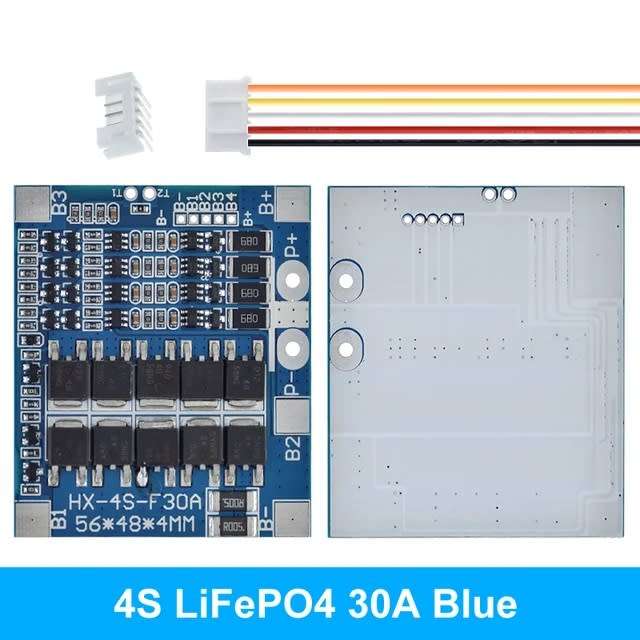

Battery Lifepo4 Protection and Balance Board 4s 14.4V 30A:



Specifications:

Charging Voltage: 15V Max (3.6V x 4 batteries = 14.4V Fully Charged)
Working Current:
30A
Over Charging Voltage:
3.75V
Over Discharge Voltage:
2.1V
Size:
56 x 48mm

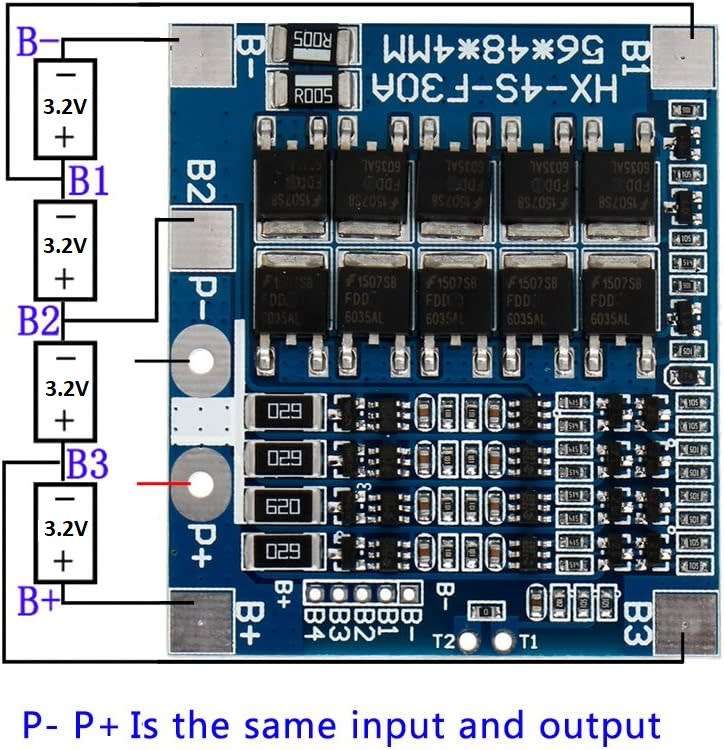

Welding Points:

B- : Connect to battery 1 negative
B1 : Connect the point between battery 1 and battery 2
B2 : Connect the point between battery 2 and battery 3
B3 : Connect the point between battery 3 and battery 4
B+ : Connect to battery 4 positive

First contact the B- pin and add one battery at a time till the last B+, otherwise it may cause damage to the board.

P + charging/discharge correct poles (charging end/discharge end sharing)
P - charging/discharge terminal negative terminal (charging end/discharge end sharing)
