Battery LiFePO4 Protection Board 2s 13A **LOCAL STOCK**

Battery LiFePO4 Protection Board 2s 13A LOCAL STOCK

Name: Battery LiFePO4 Protection Board 2s 13A **LOCAL STOCK**
SKU: BAT217
Price: 46.00 ZAR
Availability: InStock

4 available / new

Only 4 left – grab it before it’s gone!

R46.00

Add to watchlist Watch

Shipping

Free shipping is available from Diy Select - Cape Town for all orders above R2,000.00, using one of our trusted couriers.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Diy Select - Cape Town8411

100.00 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Product details

Condition

New

Location

South Africa

Product code

BAT217

Bob Shop ID

642596139

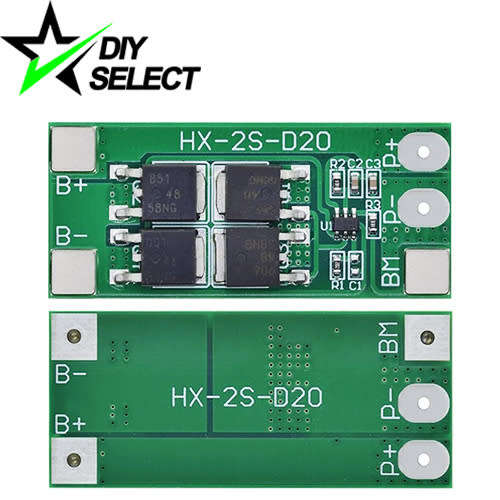

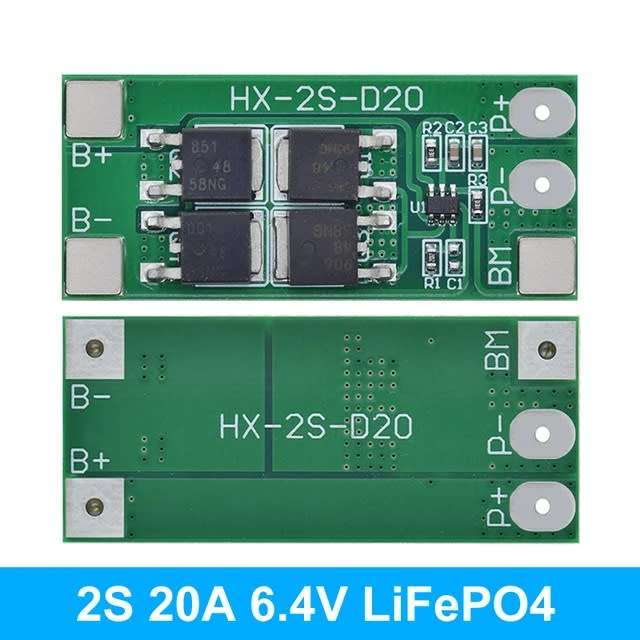

Battery LiFePO4 Protection Board 2s 6.4V 13A:

Specifications:

Model: HX-2S-D20
Charging Voltage: 7.2V DC
Max Charging Current: 13A
Overcharge Voltage Range: 3.65±0.05V
Over-Discharge Voltage Range: 2.5±0.05V
Size: 46 x 20mm

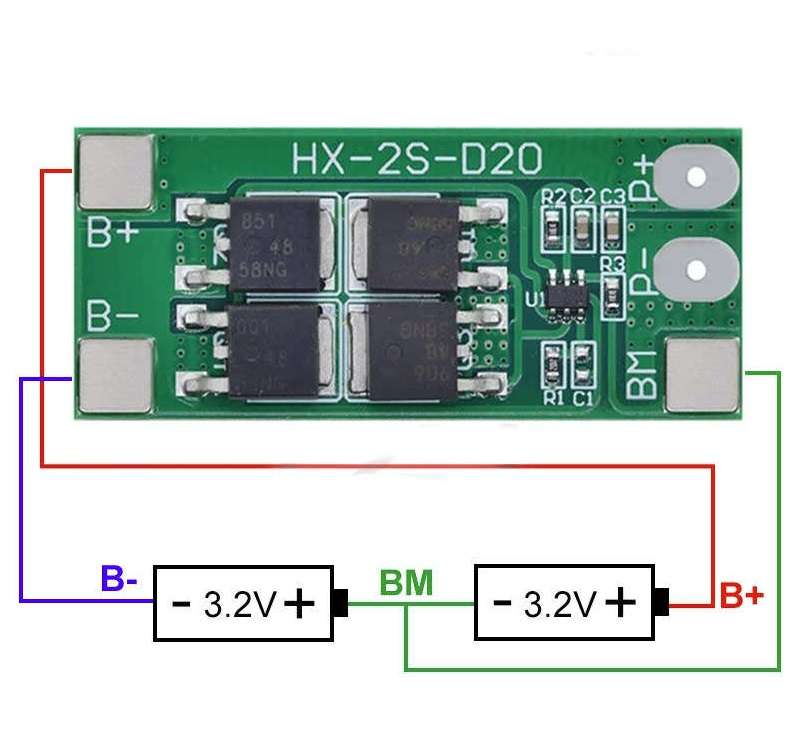

Soldering Point Layout:

BM: The connection point between the batteries
B+: Battery V+ Positive
B-: Battery V- Negative
P+: Output / Charging V+
P-: Output / Charging V-

Connect Battery 1 then 2. When soldering wires to protection board the touch time between soldering iron and protection board should not be longer than 1.5 seconds otherwise you could damage the board.
