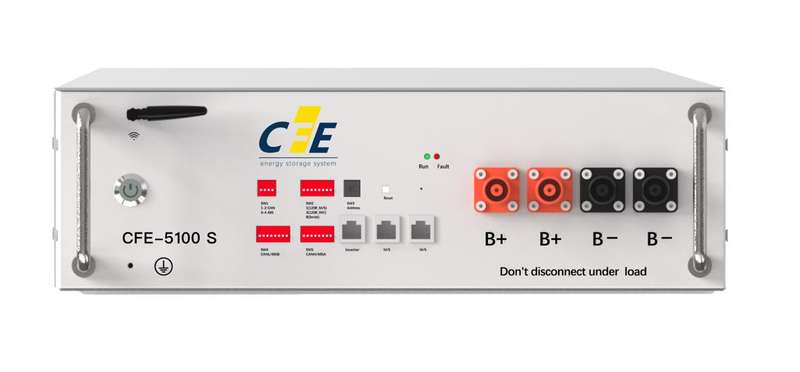

Model CFE-5100 S
Total Energy* 5.1kWh
Effective Energy(d.c)* 4.8kWh
Nominal Charge/Discharge Power 5Kw
Voltage 48V-56Vdc
Nominal Voltage 51.2Vdc
Nominal Current 100A
Max. Charge Voltage 56V
Recommended DOD 90%
Operating Condition Indoor
Operating Temperature?Charge? 0~50?
Operating Temperature?Discharge? -10~55?
Dimensions(mm) 442*500*133
- 4 -
Weight 44?0.5 Kg
Relative Humidity(R H) 20~60%(No condensed water)
Cooling Type Ambient cooling
Case Material Metal
Color White
Installation Cabinet or Wall Mounting
IP Rating IP20
Protective Class I
Max. Number of Parallel 8
Warranty 10Years
Communication CAN/RS485
Protection Mode Triple Hardware Protection
Battery Protection Over-Current/Over-Voltage/Short Circuit/
Under-Voltage/Over
Temperature
Safety Certificate CE & TUV(IEC 62619, IEC 62040)
Hanrzd Class of Dangerous Goods 9
Transportation UN38.3
