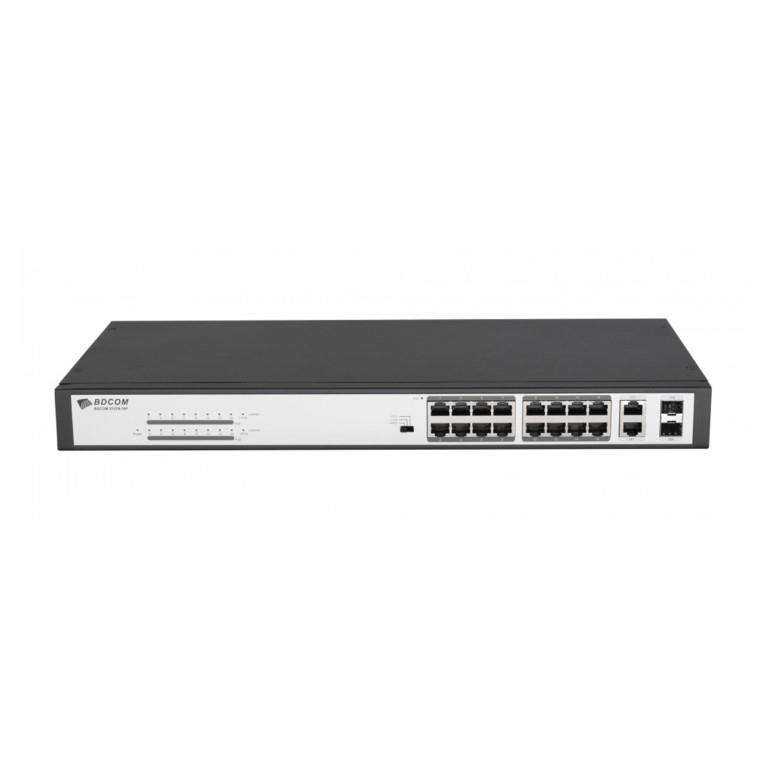

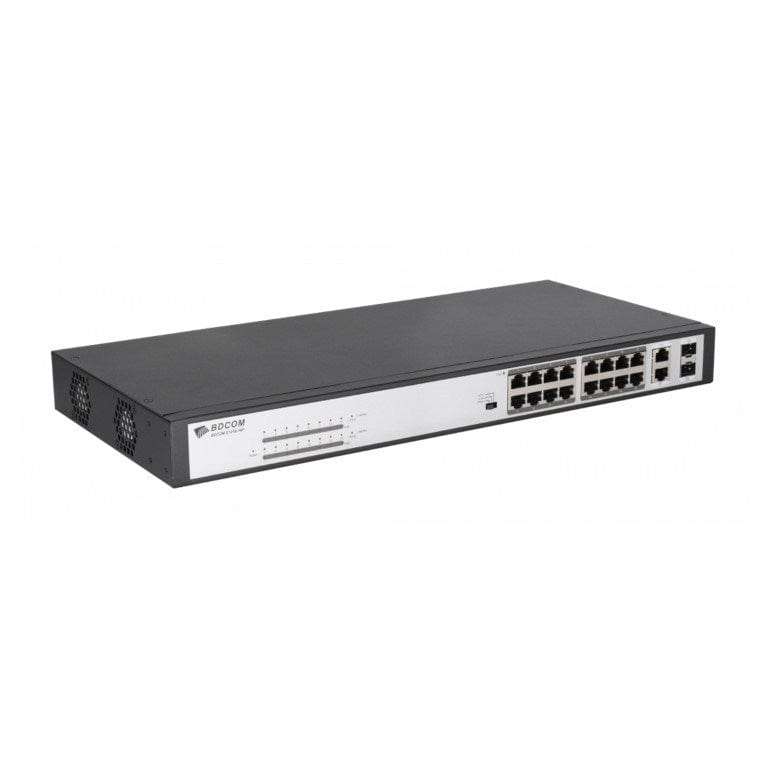

BDCOM 16-port POE Fast Ethernet Switch with 2x Gigabit Combo ports PS1218-16P
BDCOM S1200 Series is a 1000M uplink smart POE switch with a large buffer memory introduced by BDCOM. It is designed for the video surveillance and wireless coverage in the medium and small networks. BDCOM S1200 Series has three models: S1210-8P, S1218-16P, and S1226-24P, which meets the need of networks of different scales.
Features
Switching Characteristics
- Non-block switching architecture and wirespeed forwarding supported by all ports
- Large buffer memory with no video interruption
- IEEE802.3x full duplex flow control and Back pressure half-duplex flow control
- Multi functional dial-code which meets the requirement of different networking
PoE Characteristics
- Meet the standard of IEEE802.3af/at, the max PoE power of a single port is 30W
- Large power PoE power supply, and full-port 802.3af full-load
- Smart standard 48V PoE power supply, power supply based on the terminal auto-negotiation
- Short-circuit protection and over current protection
Practicability
- Integrated professional thunder-proof circuit and high grade thunder-proof design
- Built-in high quality POE power supply and stable and secure POE output
- Comply with CE, FCC
Usability
- Plug and play, no need of configuration
- Indicators on the panel useful for learning the working status of the power supply
Features
- 16x 100M PoE ports +2GE TX / SFP combo ports
- Built-in AC power supply
- Functional dip switch: Default--standard working mode CCTV--1~8 port extension, LAN --1~16 port isolation
Technical Specification
Switching capacity/Forwarding rate: 7.2G/7 Mpps
MAC capacity: 16000 entries
POE port: 16FE
Uplink RJ45: 2GE
Uplink SFP: 2GE (Combo)
Power: 260W
Total output BTU (1000BTU/H=293W): 887.37
PoE Power: 240W
PoE power standard: 802.3af/at，max output of the port is 30W
Power supply: Built-in AC: 100~220V, 50-60Hz
Working mode: Standard switching, 250meters long-distance transmission
