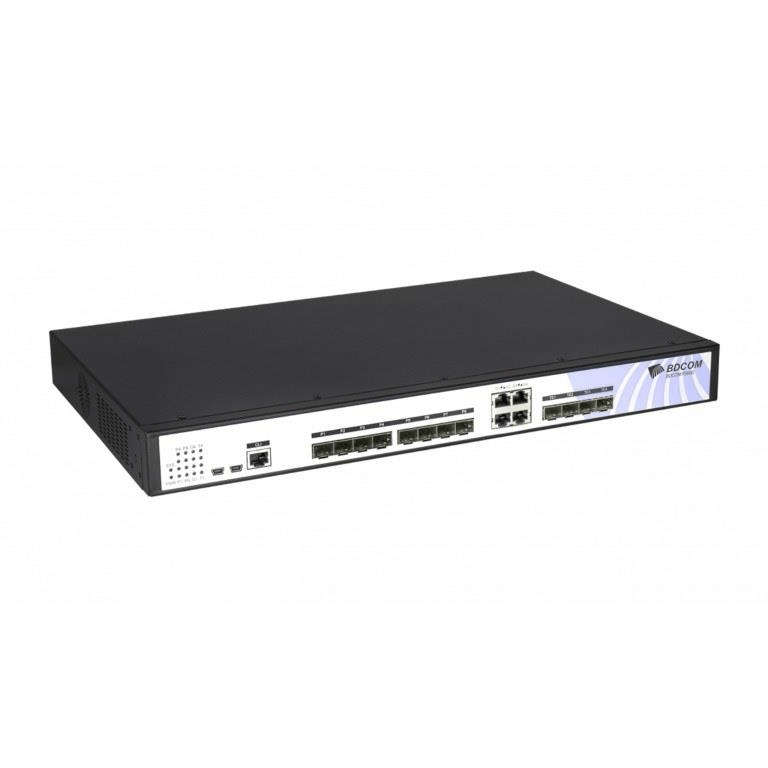

BDCOM 8-port EPON OLT P3600-08-2AC
BDCOM P3600 Series complies with IEEE802.3ah and PRC Community Industry Standard (YD/T 1475-2006), and fully abides by the CTC2.1/3.0 standard. P3600 Series can automatically discover and work harmoniously with ONUs made by different manufacturers to build efficient EPON solutions. Currently, P3600 Series has 4 models: P3600-04/08/08E/16E.
BDCOM P3600 OLT supports the symmetric uplink/downlink 1.25Gbps PON transmission rate, efficient bandwidth usage and Ethernet services, helping carriers to provide reliable services to their users.
The splitting ratio of up to 1:64 enables it to support the hybrid networking of different types of ONUs, which minimizes the operator's investment.
BDCOM P3600, based on the industry-leading technologies, is strong in functions. A few of its functions such as QoS guarantee, SLA and DBA can be easily listed out.
Features
EPON
BDCOM P3600 Series complies with IEEE802.3ah and PRC Community Industry Standard (YD/T 1475-2006), and China Telecom EPON Technical Requirement CTC2.1/3.0.
System capacity
P3600 Series supports 4/8/16 EPON systems.
Uplink port
P3600 Series are all equipped with 4 GE TX ports, 4/6 10GE uplink ports. Among them, P3600-08E/16E features 4 Gigabit
SFP ports.
Dimension
1U, less than 300mm (Depth).
Environmental protection
Low power consumption and low operating cost.
Layer-3 function
Supports layer-3 routing function.
Bus optical fiber protection
P3600 Series supports automatic link protection when trouble occurs in the optical fiber.
Power characteristics:supports dual power supply. The power supply of P3600-08E/16E supports modularized design, hot-swap and EMC-3 standard. It well adapts to the environment
Technical Specification
Interfaces:
- 1x CONSOLE, 8x EPON port (excluding OLT SFP module)
- 4x GE TX ports
- 4x 10GE SFP+ ports
Power supply: Dual DC 36~72V
Mount: 19-inch rack
