BDM100 Programmer

BDM100 Programmer/Read

BDM 100 Description:

BDM 100 is a universal programmer (it does not require our RACE software necessarily) that allows the user to read and program files in the ECU supplied with MOTOROLA MPC5xx processor (essential).

BDM 100 requires the ECU to be open, "on the bench", as the reading/programming operations are realized by linking a flat cable to specific area the ECU (the tool, on the other side, is linked to the USB port of a computer).

BDM 100 also allows to creating perfect copies of the whole software of an ECU (after having read the original ECU software).

The software allows to read and program the WHOLE ECU content of:
29BL802 SSOP EEPROM file (or ROM memory with maps if EEPROM physically not present);

MOTOROLA MPC5xx Processor file;

Serial EEPROM content.

Please note that even in the case of the ECU blocking, due to the wrong checksum recalculation, the ECU can always be reprogrammed and then retrieved (if the original software has been previously stored).

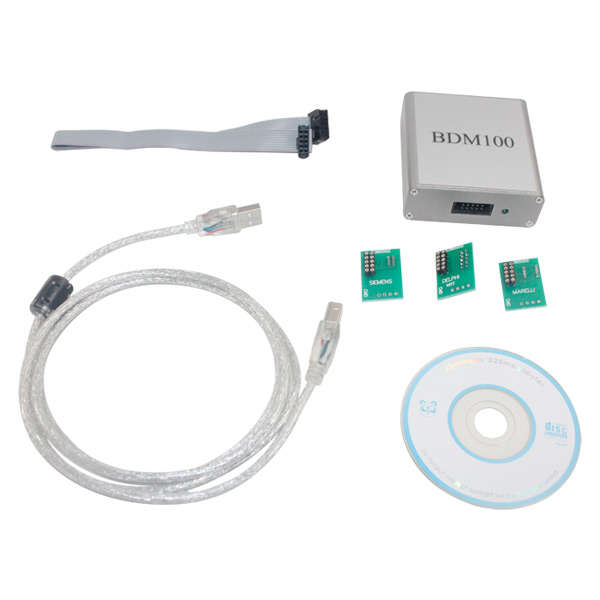

BDM 100 Package includes:
1.  BDM 100 Interface.
2.  ECU connecting cable with 3 adapters.
3.  USB connecting cable.
4.  12V Power Supply.
