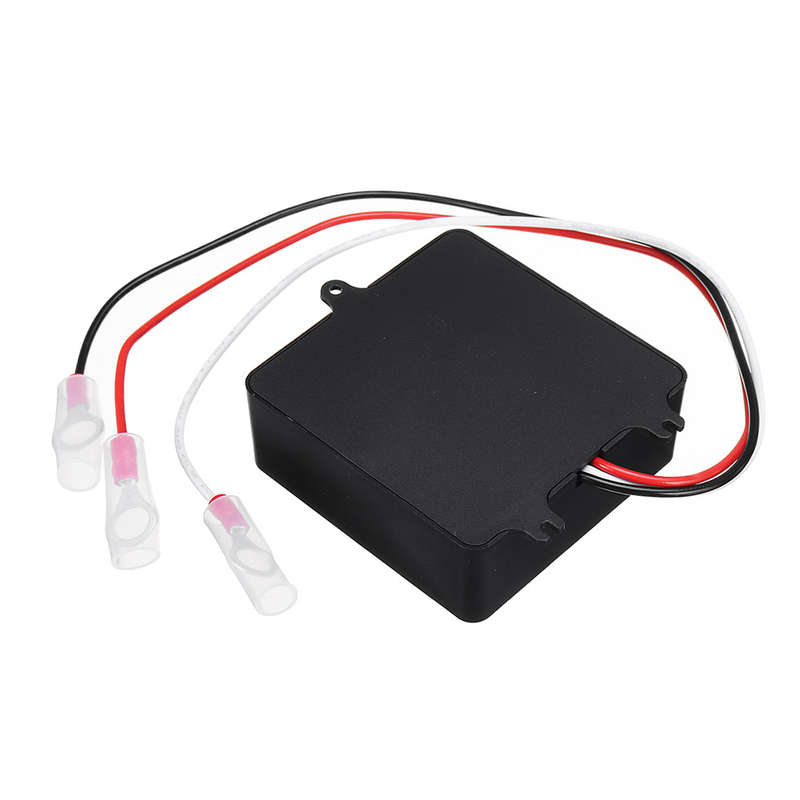

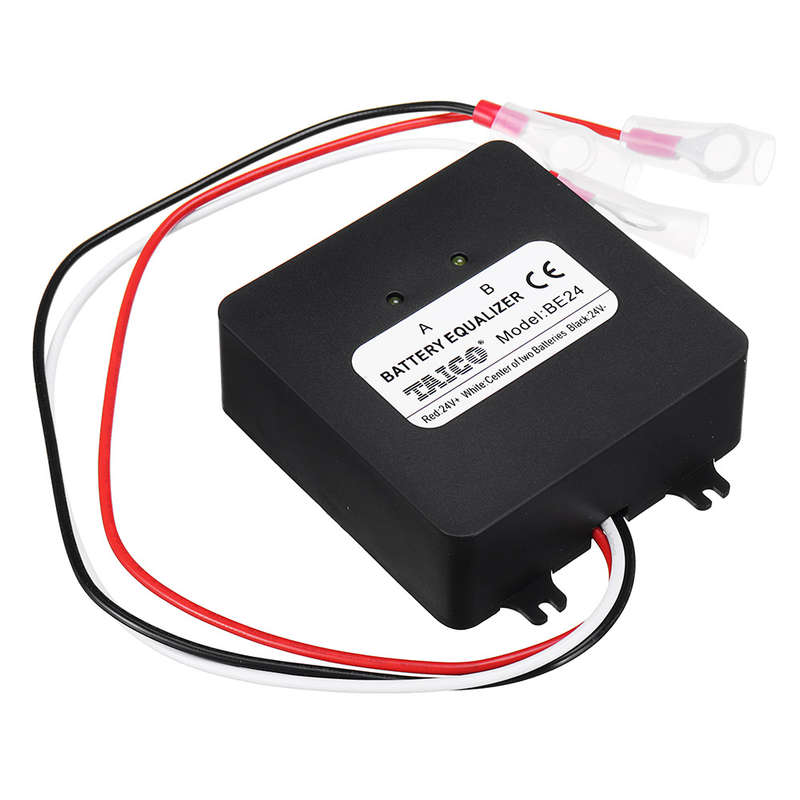

BE24 24V Solar System Lead-acid Battery Balancer Charger Controller for Battery Pack Equalizer BE24

Application:
BE24 Battery Equalizer is used for the 12V lead-acid batteries which are connected in series to keep battery voltage balance. (Gel/-Flood/AGM lead acid batteries all are ok.) When two or more in-series connected batteries are in charging/discharging/free status. The battery voltages maybe become different. One battery voltage is high and one is low. The battery equalizer will equalize/balance the battery voltage when it detect there are 20mV between two batteries. It will shunt current from one battery (the higher voltage one) to the other battery (the lower voltage one). Until their battery voltage almost becomes same. This will improve batteryas performance and extent batteryas life time. Battery equalizer can be used for 24V, 36V, 48V and any other N*12V battery system. 1 piece for 24V system; 2 pieces for 36V system; 3 pieces for 48V system; Specification:
Battery nominal voltage: 2*12V Optimizing current: 0-5A Quiescent current: <3mA Protection: Reverse polarity protection Low Voltage Disconnect: 10V LED Indicator: U(A)=U(B) LED A: Off LED B: Off U(A)>U(B) LED A: Flash LED B: Off U(A) LED A: Off LED B: Flash U(A)<10V LED A: On LED B: Off U(B)<10V LED A: Off LED B: On U(A/B)<10V LED A: On LED B: On Package Included:
1 x BE24 Battery Equalizer
