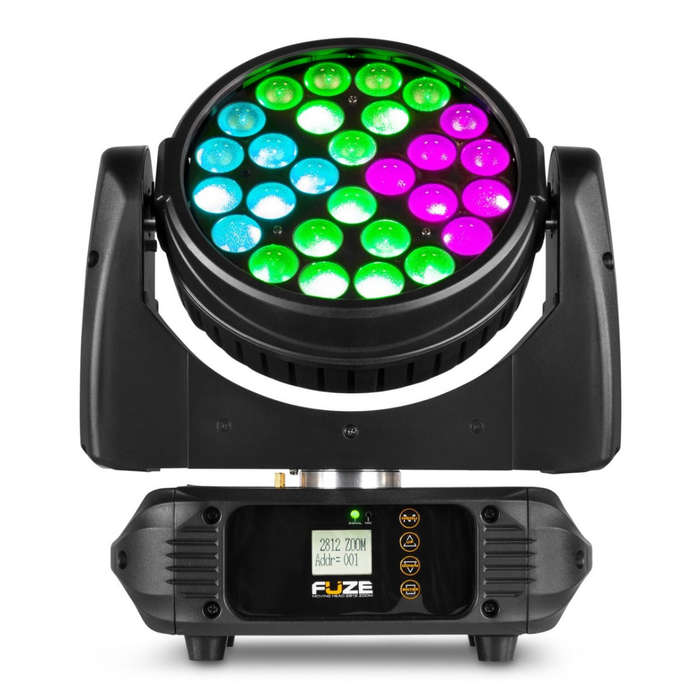

Beamz Fuze2812 Moving Head Wash w/ Zoom 28x12w LED : RGBAW-UV

FUZE2812 Wash Moving Head with Zoom

The Fuze series consists of a series of compact moving heads equipped with a powerful LED light source that guarantees impressive colour washes and stunning visual effects. Exact positioning is possible through 16-bit movement resolution (540-degree pan and 180-degree tilt). These fixtures are designed in a compact housing and are ideal for lighting designers, DJs, bands, clubs, bars and installations where small footprint and low weight is critical. It can be controlled by DMX, with sound activation or used in standalone mode with the Master/Slave function.

Key Features

Compact moving head wash with motorized zoom
28x 12W 6-in-1 LEDs
RGBWA-UV Colour mix (red, green, blue, white, amber and UV)
Linear colour temperature 2800K-8000K
Group pixel control (4 x 7 LEDs)
21 or 45 DMX channels
DMX, Auto, Sound and Stand-alone mode
Master/slave synchronization
Motorized zoom with beam angle from 12°-60°
0-100% Electronic Dimmer
Wide pan and tilt range with smooth movement
Reset function
Control panel with TFT LCD display
DMX in/output via 3-pin XLR
Quick release omega style brackets included
Powerconnector cable, DMX cable and safety cord included

Specifications

Colour temperature : 2700K — 8000K
Light source : 6-in-1 LED
LED colours : Red, Green, Blue, Amber, White, Ultra Violet
LED power : 12W
Quantity of LEDs : 28
Beam angle : Min: 18
Beam angle : Max: 54
Field angle : min: 32
Field angle : max: 74
Zoom : Yes
Illuminance : 11.000 lx @ 1m
Head movement : Pan: 540
Head movement : Tilt: 180
Flash rate per second : 1 — 21Hz
Modes : Automatic programs, DMX, Manual, Master/Slave
Sound to light mode : Yes
DMX channels : 21, 45
DMX connector : 3-pin XLR
Display : LCD
IP rating : IP20
Cooling : Temperature controlled fan
Power plug : Power-connector
Power consumption : 2.14 — 0.98A
Power supply : 100-240VAC 50/60Hz
Dimensions (L x W x H) : 270 x 310 x 360mm
Weight : 6kg
Accessories : DMX cable, Mounting bracket, Power cable, Safety cord
