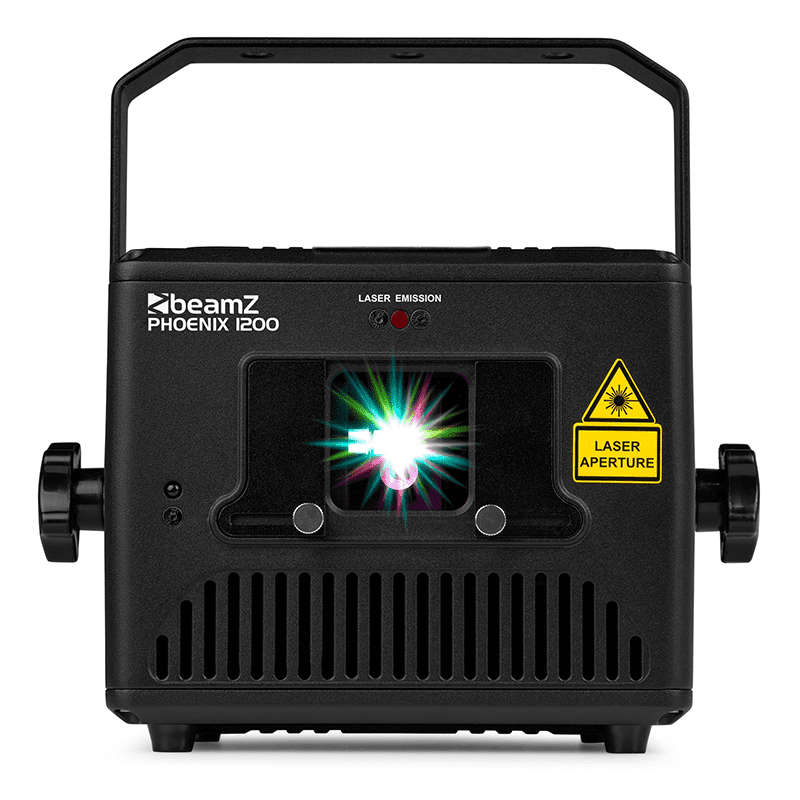

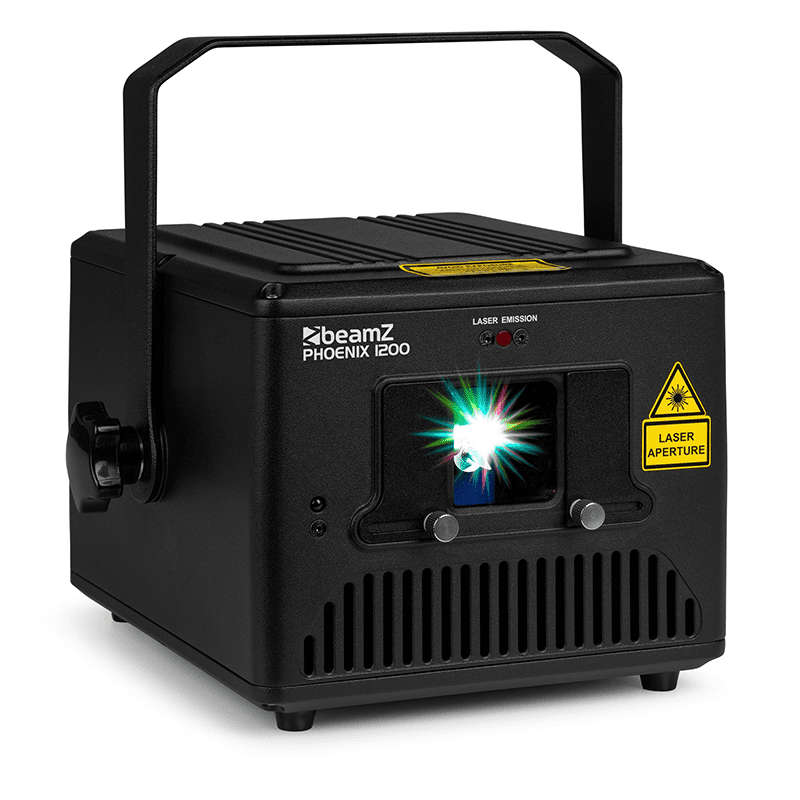

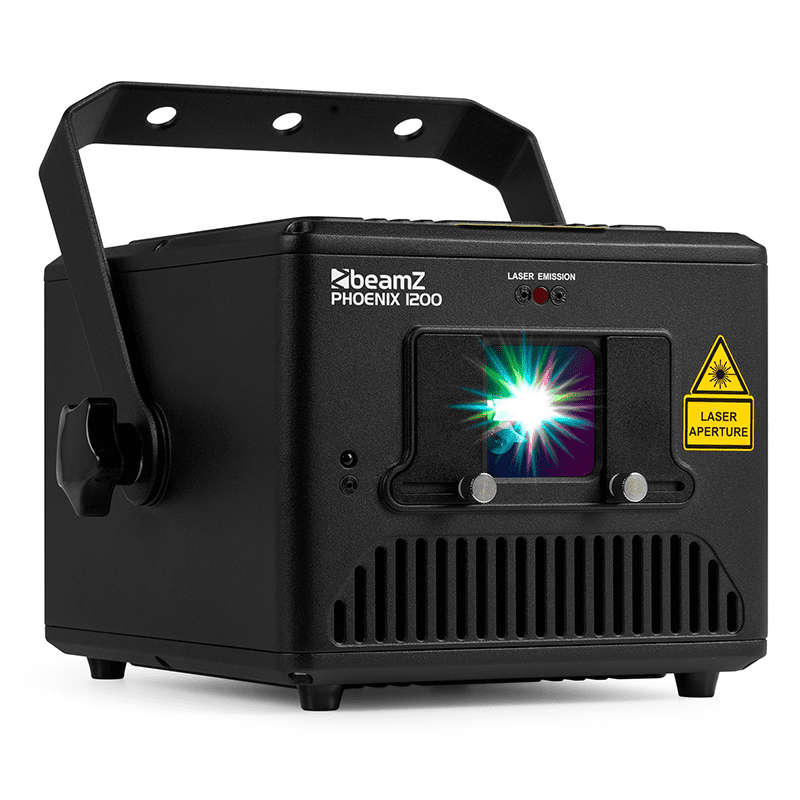

BEAMZ PHOENIX1200 ANALOG LASER RGB 1W

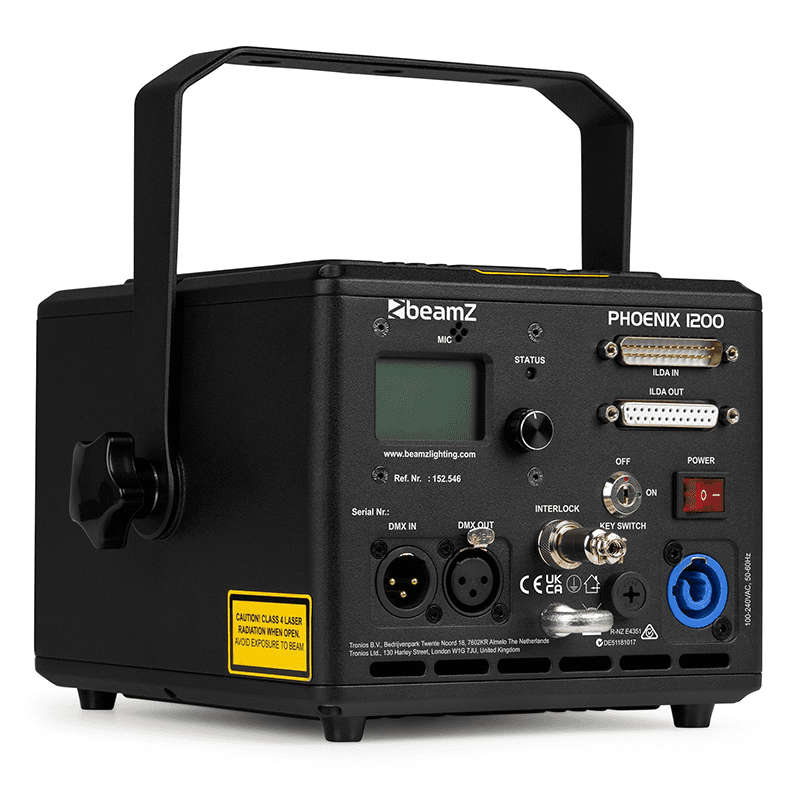

The beamZ Phoenix Laser series offers powerful animation lasers with over a hundred built-in effects and patterns. These lasers feature analog modulation, allowing for the display of up to 16.7 million color tones and the ability to "dim" the laser beam output, for audience safety. The rear panel includes a DMX in/output with 3-pin XLR connectors and an ILDA in/out connection, the standard for linking laser displays to control devices via an ILDA cable. When using a DMX controller, the Phoenix lasers provide 10 or 34 DMX channels. Additionally, these lasers can operate in sound-activated mode, thanks to the built-in microphone. The package includes 2 keys for the key switch, a remote interlock bypass, and a remote control.

Product colour : Black

Input connections : XLR (3-pin)

Output connections : XLR (3-pin)

DMX channels : 10, 34

DMX connection : 3-pin XLR

ILDA : DB25

Laser Red : 300mW @ 638nm

Laser Green : 300mW @ 520nm

Laser Blue : 600mW @ 445nm

Scanner system : 25kpps @ 8°

Maximum scanner angle : 40 degrees

Beam divergence (full angle) : <1.0mrad

Guaranteed output : 1200mW

Power supply : 100-240VAC 50/60Hz

Dimensions : (L x W x H) 236 x 222 x 148mm

Weight (kg) : 3.2
