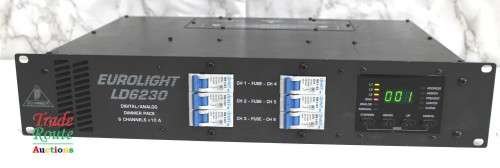

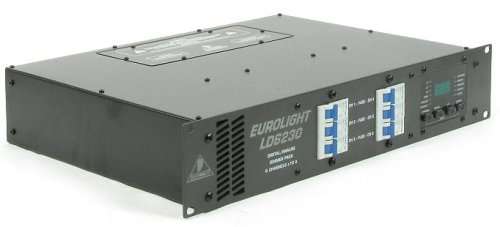

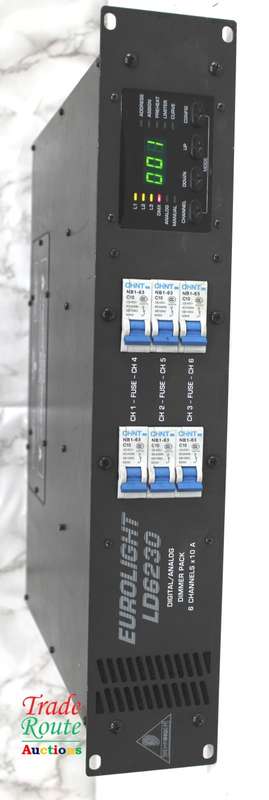

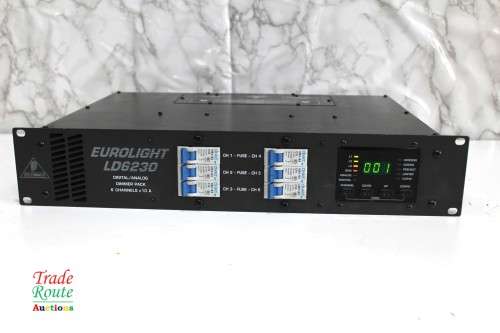

Behringer LD-6230 Eurolight 6-Channel DMX Dimmer Pack

Behringer LD-6230 Eurolight 6-Channel DMX Dimmer Pack

The LD-6230 Eurolight 6-Channel DMX Dimmer Pack from Behringer is a DMX/analog controlled unit, with a wide range of functions that make it well-suited for use in theaters, TV studios, and other performance venues. The unit features an auto signal check in case of DMX errors and an auto-store function that saves all settings after you leave the configuration mode. If you prefer analog control using the 8-pin DIN connector, dimming can be done locally, without a console. Settings are indicated by an easily-readable 3-digit display

JUST THE UNIT

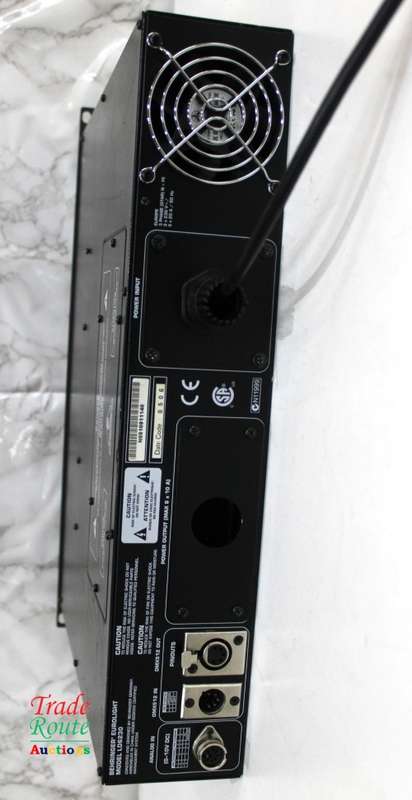

COMES WITH POWER CABLE ONLY

6-channel, DMX/analog-controlled dimmer pack with up to 10A load per channel
3-phase mains supply (one phase possible at lower output power)

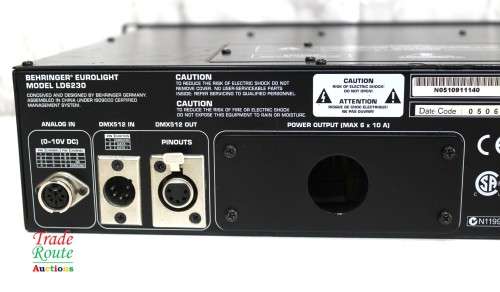

Standard DMX512 interface
Additional 8-pin DIN connector for analog control (0 - 10V)
Adjustable Preheat and Limiter function to extend bulb life
Precise curve function enables selection of different fade modes
Switch option for simple on/off control of each channel
Automatic digital input check to detect DMX signal errors
Manual mode for dimming capability without an external lighting console
Automatic store function saves all settings after leaving Configuration mode

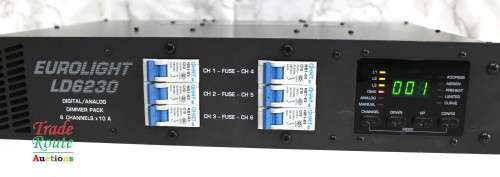

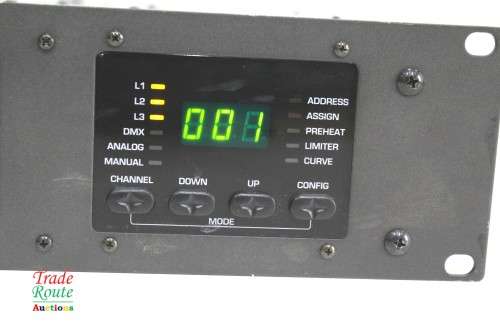

3-digit display and dedicated control LEDs for better indication in dark environment

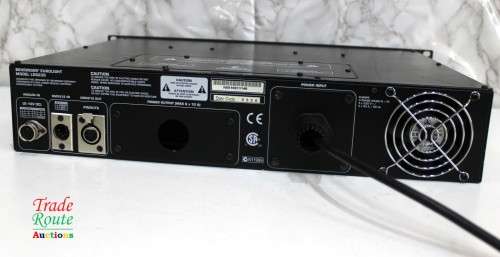

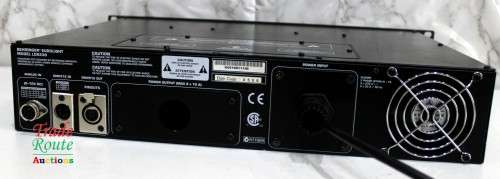

Harting and CEE connection options (connectors not included)
High-quality components and exceptionally rugged construction ensure long life

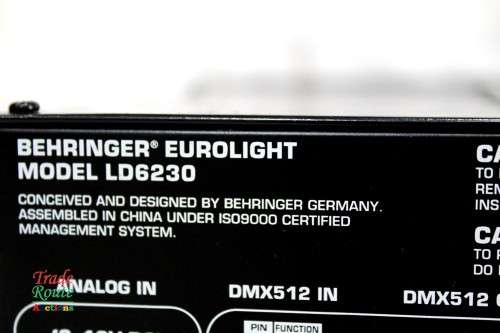

Conceived and designed by Behringer Germany
