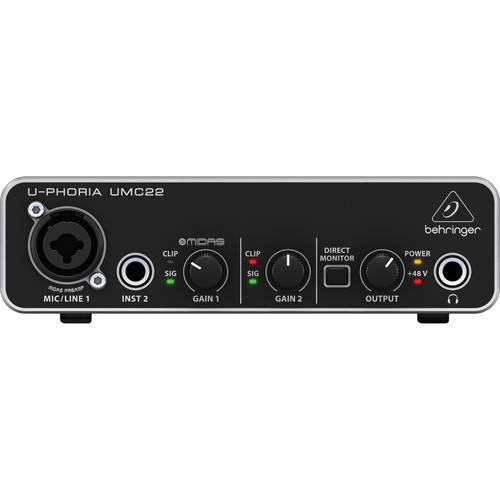

Behringer U-Phoria UMC22 - 2×2 USB Audio Interface
For musicians, podcasters, and producers looking to realize their creative visions on a miniscule budget, the Behringer U-PHORIA UMC22 desktop 2x2 USB 1.1 audio interface presents a welcome and user-friendly solution that's equally convenient for recording at home or in any location where inspiration strikes.
The tough, impact-resistant metal UMC22 interface sports a pro-grade MIDAS-designed mic preamp—accessible via an XLR-1/4" combo mic/line input jack—and a separate 1/4" Hi-Z instrument input, enabling simultaneous recording of two unique sources such as a vocal mic and a guitar. Switchable phantom power is on hand for condenser mics and active DI boxes. Engage direct monitoring to hear your live input signal without latency.
Adjust the level for each input from the independent front-panel gain knobs while checking the front-panel LED indicators for signal presence and clipping. If you see the red clip lights, turn down the gain.
Monitoring your audio is simple, too. With its 1/4" headphone jack and two balanced 1/4" line outputs, the U-PHORIA UMC22 has no problem handling headphones and professional active monitors. A single output knob on the front panel controls the level for both output destinations.
All inputs and outputs are treated to quality AD/DA conversion at up to 24-bit / 48 kHz resolution. Thanks to its bus-powered design and Mac/Windows compatibility, the U-PHORIA UMC22 is both convenient and easy to use. Utilize the generous software bundle comprised of DAWs, virtual instruments, and effects, or pair the interface with popular programs such as Pro Tools, Ableton Live, Cubase, and more (available separately).
Features
- Musicians, Podcasters, and Producers
- USB Type-A Connectivity
- 1 MIDAS Mic Preamp, 1 Hi-Z Input
- 1 Headphone Out, Stereo 1/4" Line Out
- 24-Bit / 48 kHz AD/DA Conversion
- Bus Powered / Mac, Windows
- Phantom Power and Direct Monitor Switch
- LEDs for Clip and Signal Indication
- Front-Panel Input and Output Controls
- Software: DAWs, Instruments, and Effects
Specifications
| Channels of I/O | Analog:
2 Inputs / 2 Outputs at 48 kHz |
| Maximum Sampling Rate | 48 kHz / 24-Bit |
| Number of Microphone Inputs | 1 Preamp |
| Analog Audio I/O | 1x Combo XLR-1/4" TRS Balanced Mic/Line Input (Front Panel)
1x 1/4" TRS Unbalanced Hi-Z Input (Front Panel)
2x 1/4" TRS Balanced Line Output
1x 1/4" TRS Unbalanced Headphone Output (Front Panel) |
| Host Connection | 1x USB-B (Class-Compliant) |
| Power Requirements | USB Bus Power |
General
| Display | No |
| Channels of I/O | Analog:
2 Inputs / 2 Outputs at 48 kHz |
| Maximum Sampling Rate | 48 kHz / 24-Bit |
| Number of Microphone Inputs | 1 Preamp |
| Input Level Adjustment | 2x Knob |
| Expansion Slots | No |
Signal Processing
| Pad | No |
| High-Pass Filter | No |
| Solo/Mute | No |
Connectivity
| Analog Audio I/O | 1x Combo XLR-1/4" TRS Balanced Mic/Line Input (Front Panel)
1x 1/4" TRS Unbalanced Hi-Z Input (Front Panel)
2x 1/4" TRS Balanced Line Output
1x 1/4" TRS Unbalanced Headphone Output (Front Panel) |
| Phantom Power | 48 V, Selectable On/Off |
| Digital Audio I/O | No |
| Host Connection | 1x USB-B (Class-Compliant) |
| Host Connection Protocol | USB 1.1 |
