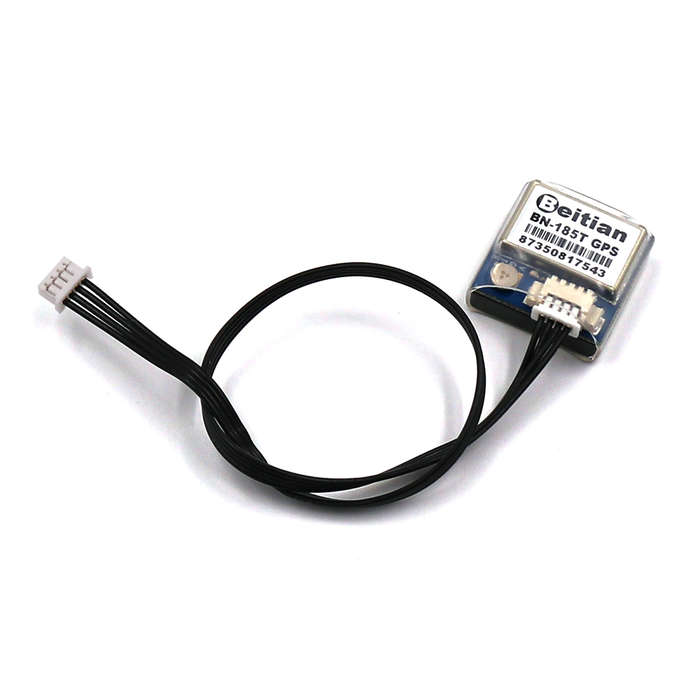

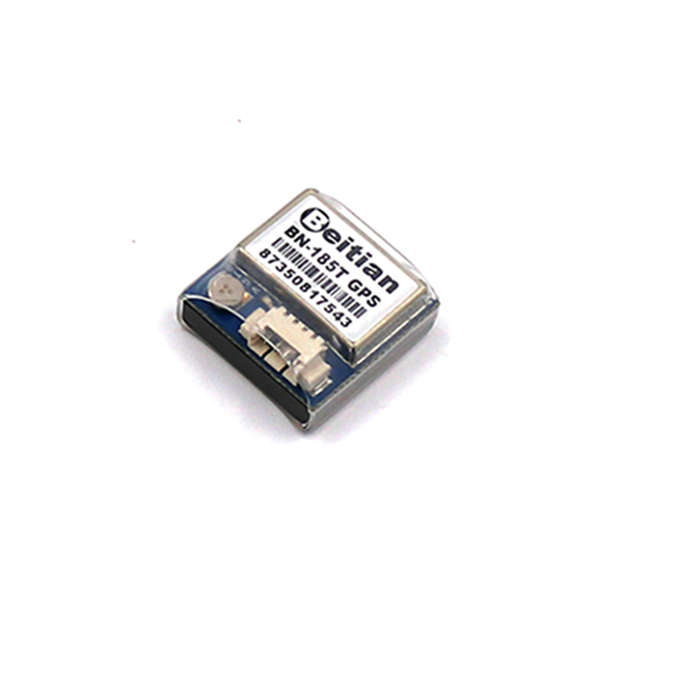

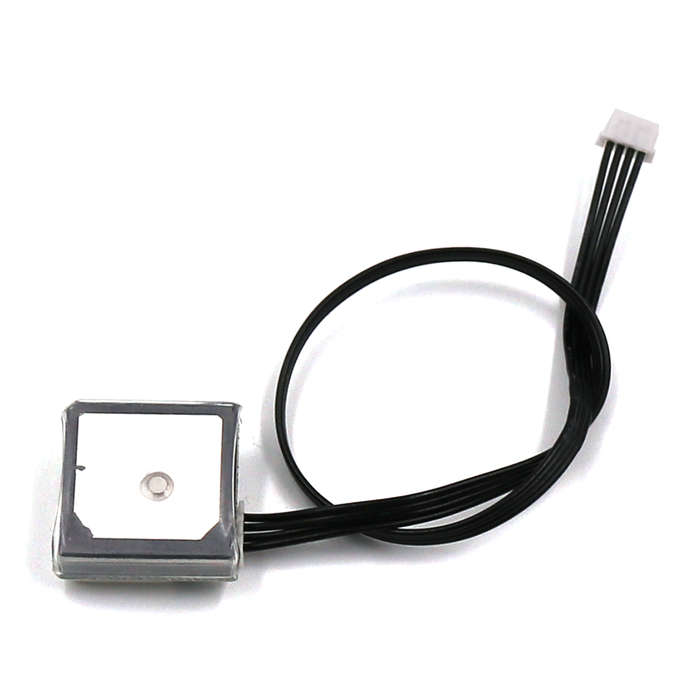

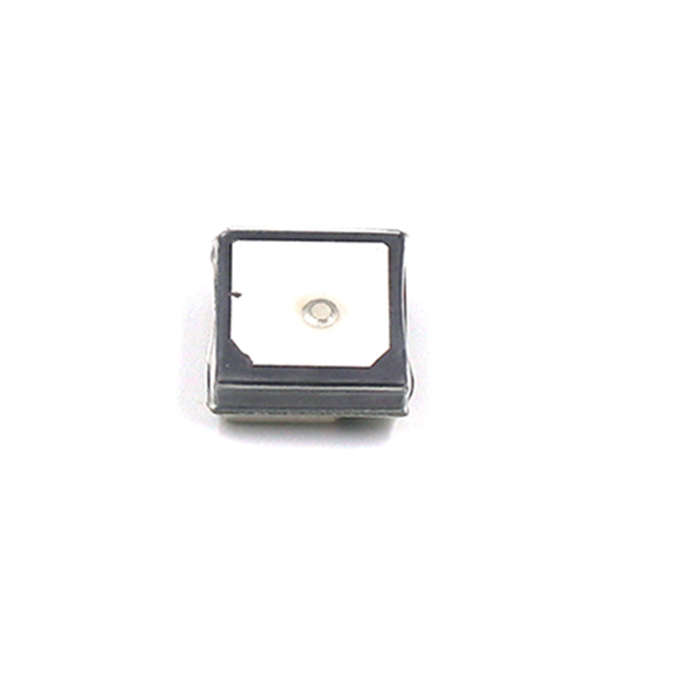

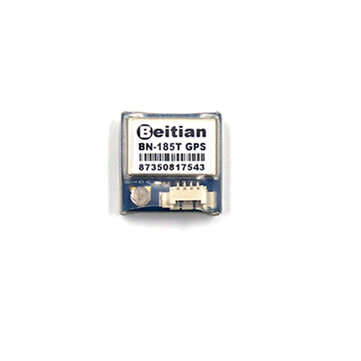

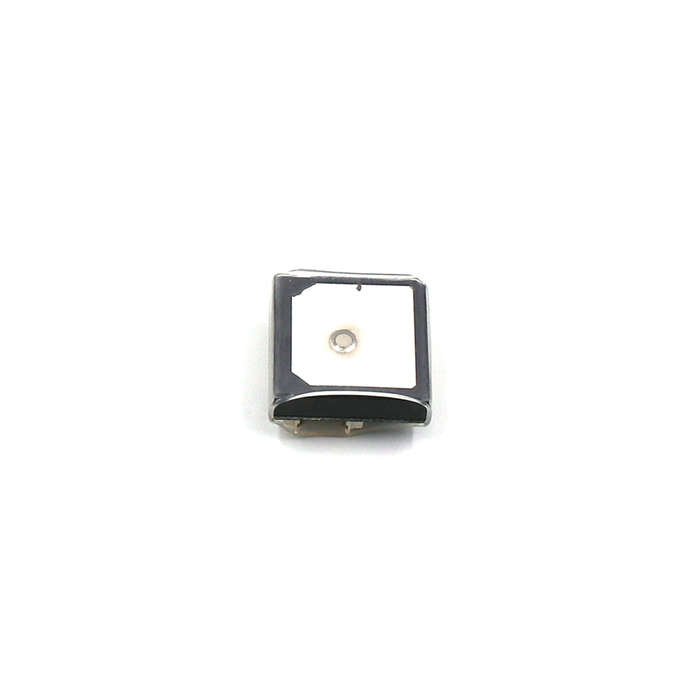

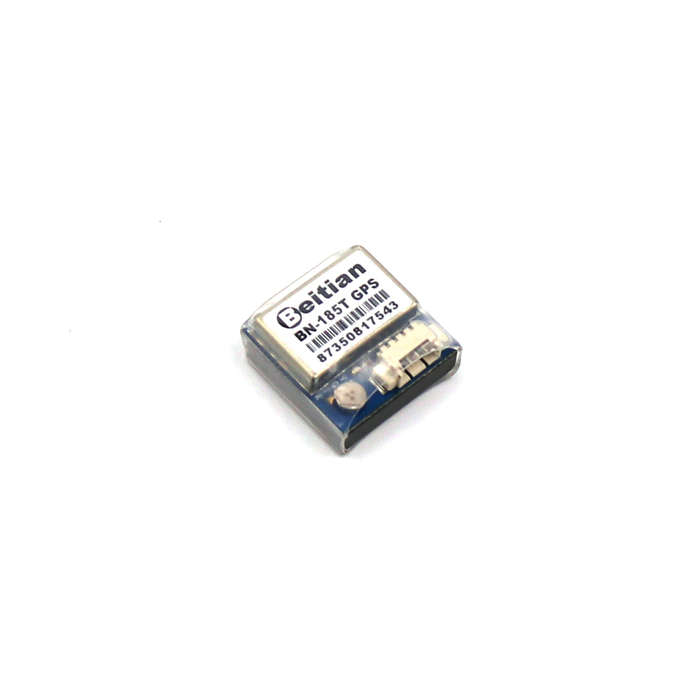

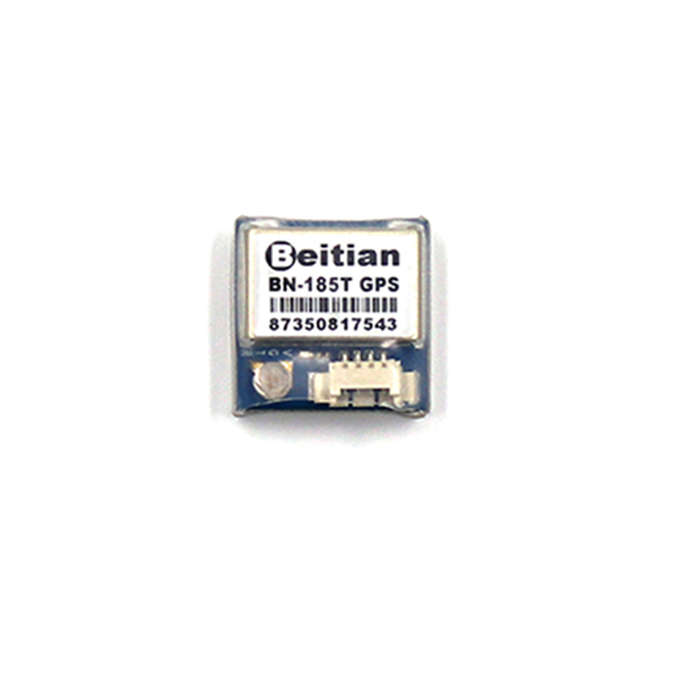

Beitian BN-185T GPS + GLONASS Dual Module Datesheet w/Cable For APM Pixhawk CC3D Naze32 F3 F4 Flight Controller

Description:
Brand name: Beitian
Item name: BN-185T GPS+Glonass antenna module

Parameters	Description
Chip features	Chip	M8030-KT
	Frequency	LPS L1, GLONASS L1, BDS B1,GALILEO E1, SBAS L1, QZSS L1
	Working mode	GPS, GLONASS, BDS, GALILEO, SBAS and QZSS. Default GPS+GLAONASS+SBAS+QZSS
	Channel	72 searching channel
Sensitivity	Track	-167dBm
	Recapture	-160dBm
	Cold start	-148dBm
	Hot start	-156dBm
Precision	Horizontal accuracy	2.0 m CEP 2D RMS SBAS assist (open space)
	Speed accuracy	0.1m/s 95%(SA off)
	Time accuracy	1us
Startup time	Cold start	26s
	Warm start	25s
	Hot start	1s
Output data	Baud rate	4800bps-921600bps, default 9600bps
	Output level	TTL
	Output protocol	NMEA-0183?
	NMEA sentences	RMC, VTG, GGA, GSA, GSV, GLL
	Update frequency	1Hz-10Hz, default 1Hz
	FLASH	4M FLASH,?The configuration can be changed and will not be lost after power off
Working limit	Height	50,000m max
	Speed	515m/s max
	Gravity acceleration	4g max
Power consumption	Voltage	DC 3.6V-5.5V,?typical: 5.0V
Power consumption	Current	Normal 50mA@5.0V
Physical parameter	Size	18.5mm18.5mm9.5mm
	Weight	8.1g
	Connector	1.25 pitch 4pin carrier
Environment	Operate temperature	-40a??~+85a??
Environment	Storage temperature	-40a??~-+105a??
Indicator light	TX light	Blue light flashing when power-on, indicated that there is data output
Indicator light	PPS light	The light is not lit when it is not positioned; after 3D positioning, it starts to blink.
