Beitian BN-280 RS232 GPS Module GPS+GLONASS Dual Mode With Antenna

20 available / new

R612.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3471

93.38 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

641118194

Description:

GPS+GLONASS dual mode, RS-232 level output, 9600, 1HZ output, standard NMEA-0183 protocol output.

Parameter	Description
Chip characteristics	Chip	U-blox 8
	Receiving mode	GPS,GLONASS, Galileo, BeiDou, QZSSand SBAS
	Frequency	GPSL1, GLONASS L1, BeiDou B1, SBAS L1, GalileoE1
	Channel	72search channels
Sensitivity	Track	-167dBm
	Recapture	-160dBm
	Cold start	-148dBm
	Hot start	-156dBm
Precision	Horizontal accuracy	2.0 m CEP 2D RMS SBAS assist (open space)
	Speed accuracy	0.1m/s 95% (SA off)
	Time accuracy	1us
Start Time	Cold start	26s, The actual open sky is generally 38s average, directly related to the environment.
	Warm start	25s
	Hot Start	1s
Output Data	Baud rate	4800bps-115200bps,default 9600bps
	Single GNSS	1Hz-18Hz
	Standard GNSS	1Hz-10Hz, default 1Hz
Work limit	Height	50,000m maximum
	Speed	515m/s maximum
	Gravity acceleration	4g maximum
Power consumption	Voltage	DC 3.0V-5.5V, typical:5.0V
Power consumption	Current	Normal 50mA@5.0V

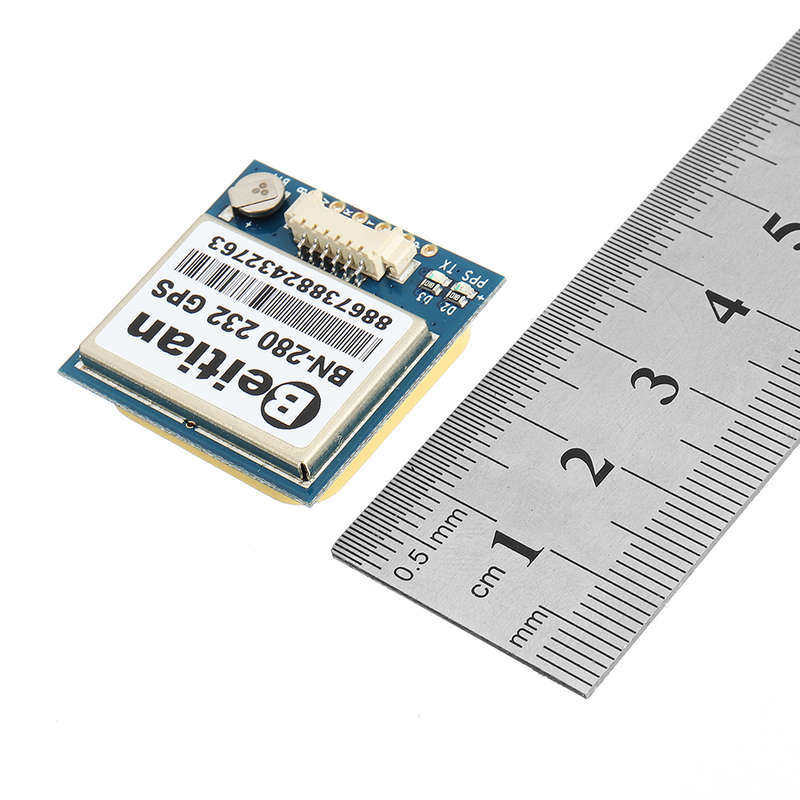

Physical parameter	Size	28mm28mm8mm
Physical parameter	Weight	11.8grams
Surroundings	Operating temperature	-40 ﾣC ~ +85 ﾣC
Surroundings	storage temperature	-40ﾣC ~ +85ﾣC
Connector	Connector	1.25mm pitch 6pin socket
Indicator light	TX light	Power-on blue light flashes to indicate that there is data output.
Indicator light	PPS light	The light is not lit when it is not positioned. After 3D positioning, it starts to blink(red).

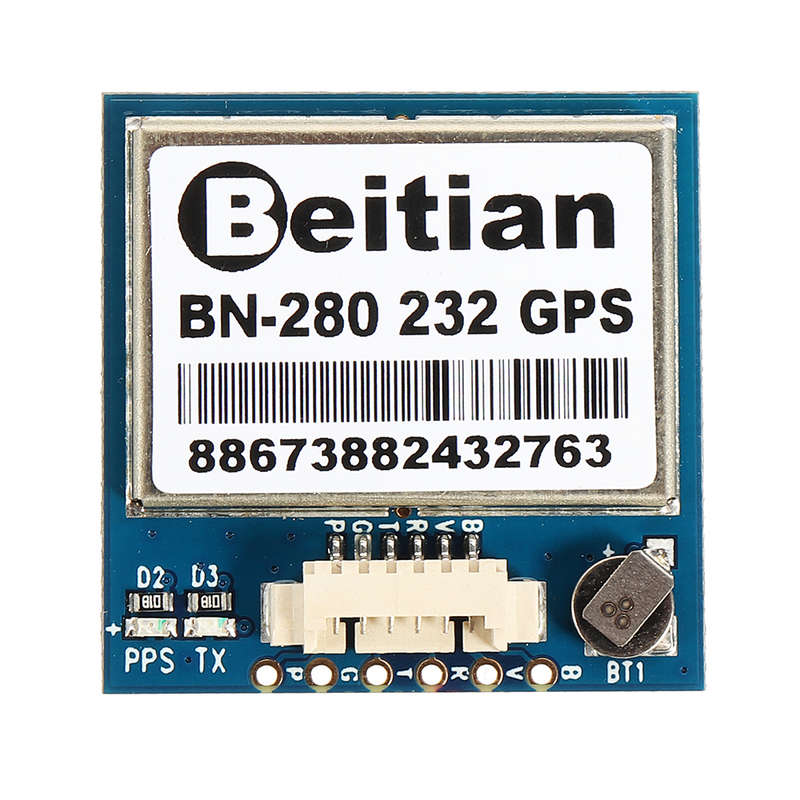

The pins of the module are:

1.PPS, there is a second pulse output after positioning, the pulse period is 1s, and the high level lasts for 100ms, which is used for system synchronization.
2. GND, ground.
3.TX, RS-232 data output of the module.
4. RX, RS-232 data input of the module.
5.VCC, 3.6-5.5V, recommended 5.0V.
6. BOOT, please hang out during normal work.

Package included:

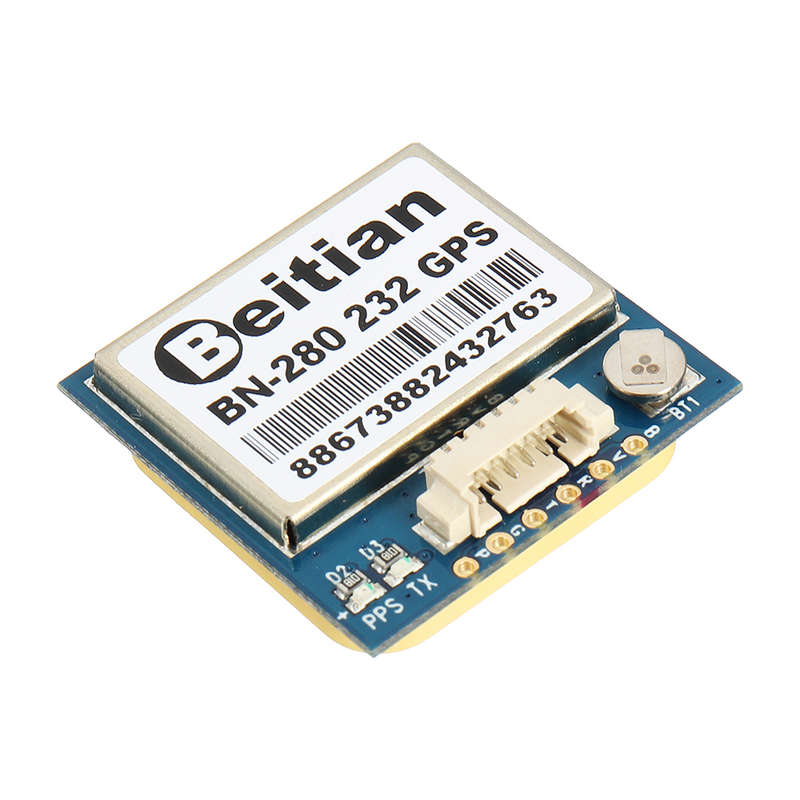

1 xBeitian BN-280 RS232 GPS Module

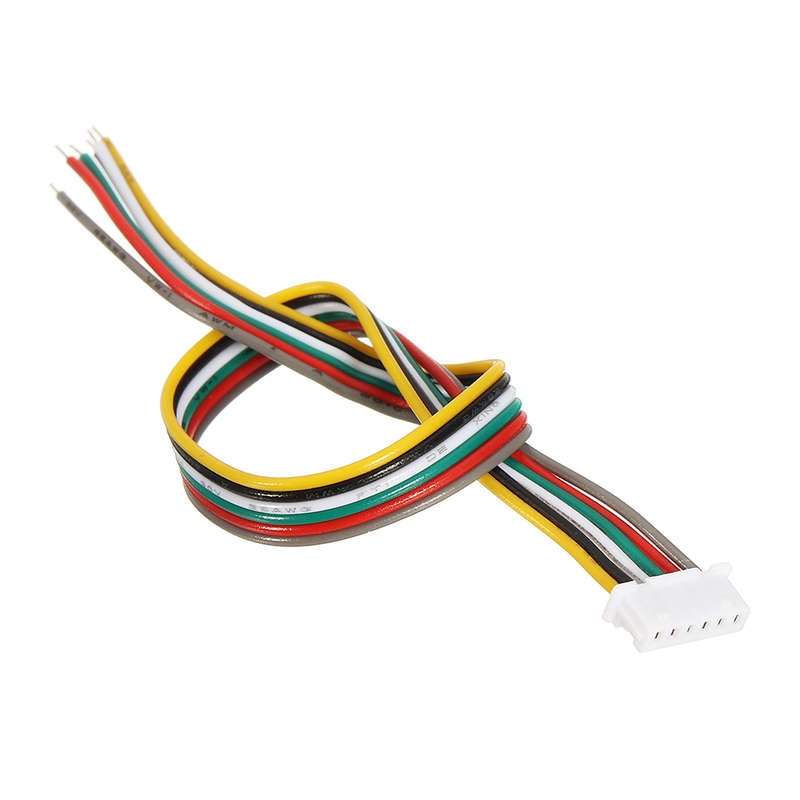

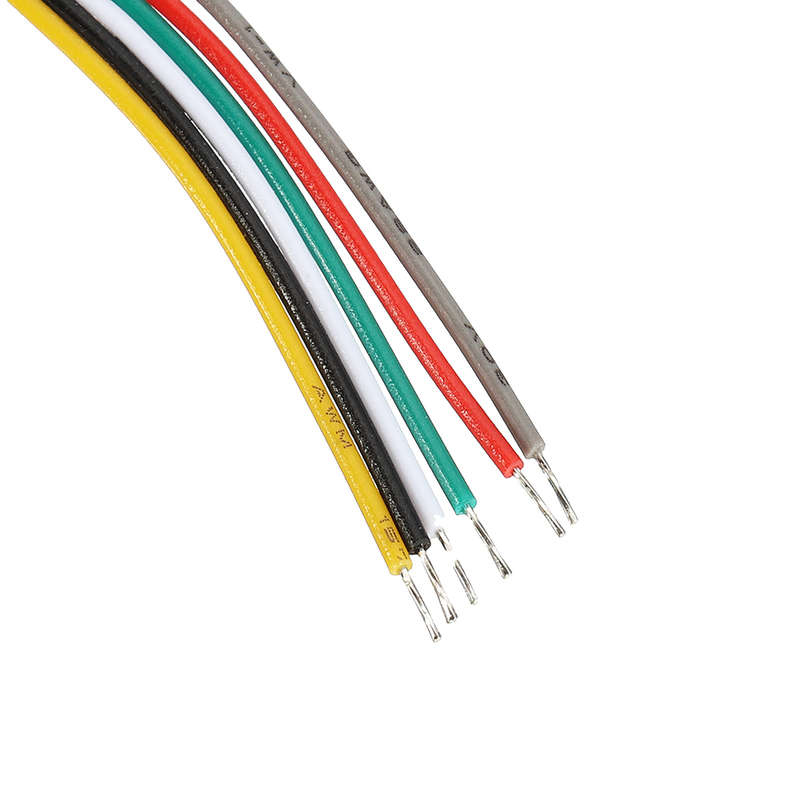

1 x cable
