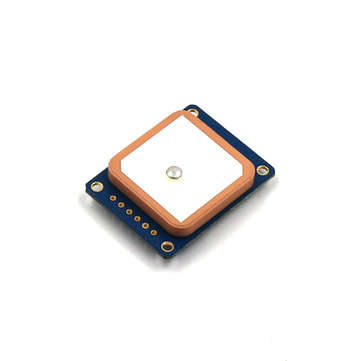

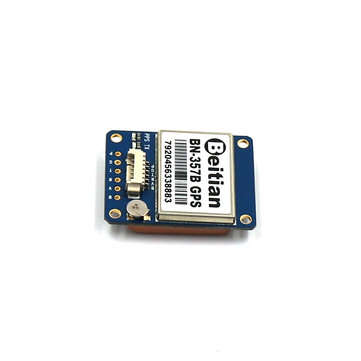

Beitian BN-357B GPS+GLONASS Dual GPS Antenna Module FLASH RS-232 Level 9600bps for RC Drone FPV Racing
BN-357B datasheet, please click?.
Specification:
Item name:?Beitian BN-357B?GPS+GLONASS Dual module

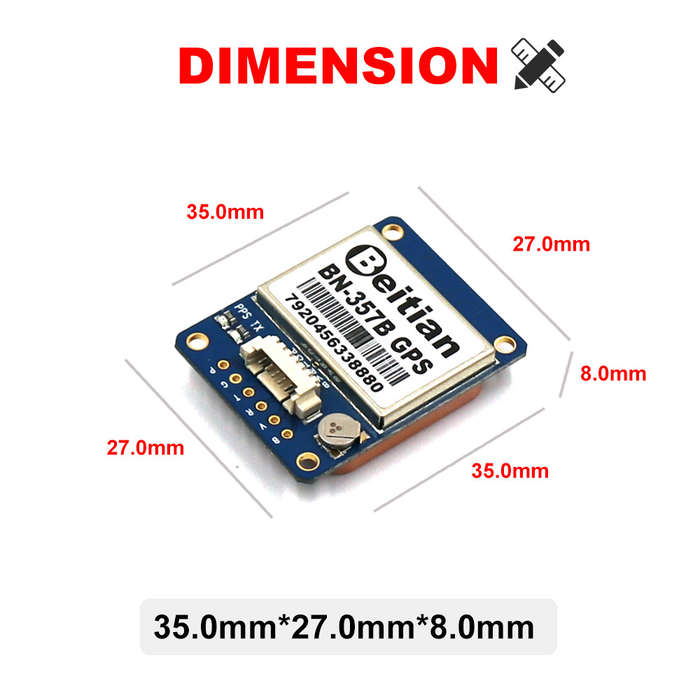

Dimensions: 35.0mm*27.0mm*8.0mm
Weight: 13.9g

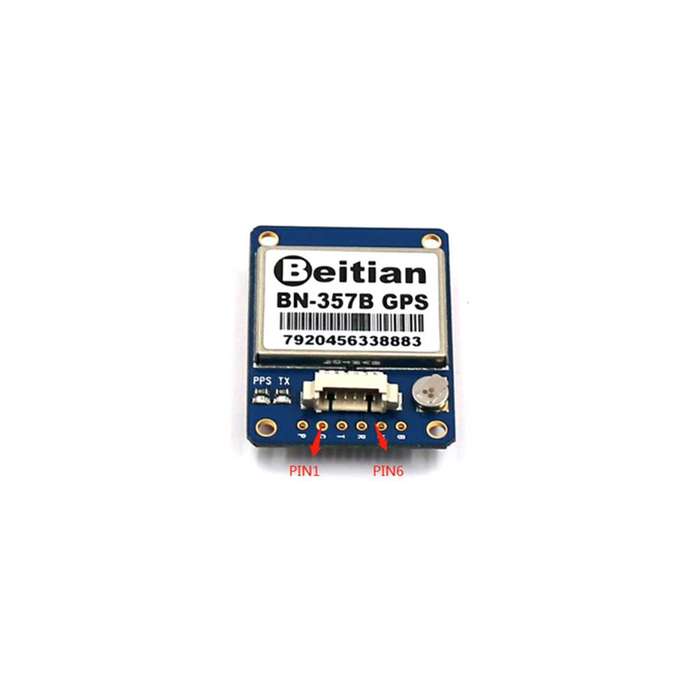

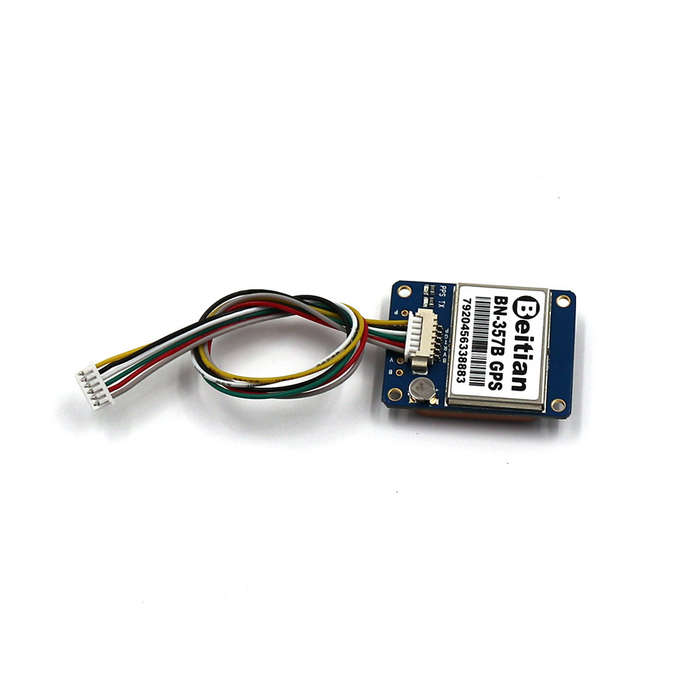

Connector: 1.25mm?6pins?connector
Built-in Flash, RS-232 level, 9600, 1Hz output, NMEA-0183?protocol output
Electrical Characteristics?
Chipset: M8030-KT Frequency: GPS L1, GLONASS L1, BEIDOU?B1, GALILEO?E1, SBAS L1, QZSS L1
Receiving?Format: GPS,?GLONASS,?BEIDOU, GALILEO,?SBAS,?QZSS. (Default GPS, GLONASS, SBAS, QZSS.)
Channels: 72 Searching?Channel?
Sensitivity
Tracking: -167dBm
Reacquisition: -160dBm
Cold Start: -148dBm
Hot Start: -156dBm
Accuracy
Position Horizontal: 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)
Velocity: 0.1m/sec 95% (SA off)
Timing: 1us synchronized to GPS time
Acquisition Time
Cold Start: 26s
Warm Start: 25s
Hot Start: 1s
Data Output
Support?Rate: 4800bps?to?921600bps,?Default 9600bps
Data Level: RS232 Level
Data Protocol: NMEA-0183?or UBX, Default?NMEA-0183
NMEA Message: RMC, VTG, GGA, GSA, GSV, GLL
Update Rate: 1Hz-10Hz,?Default?1Hz
FLASH: 4M FLASH, Store the configuration permanently
Operational Limits
Altitude: 50,000m Max?
Velocity: 515m/s Max?
Acceleration: Less than 4g?
Power Consumption
VCC: DC?Voltage?3.6V-5.5V,?Typical:?5.0V
Current: Capture?50mA@5.0V
Environment
Operating Temp: -40 ?ﾣC ~ +85?ﾣC
Storage?Temp: -40?ﾣC ~ +105?ﾣC

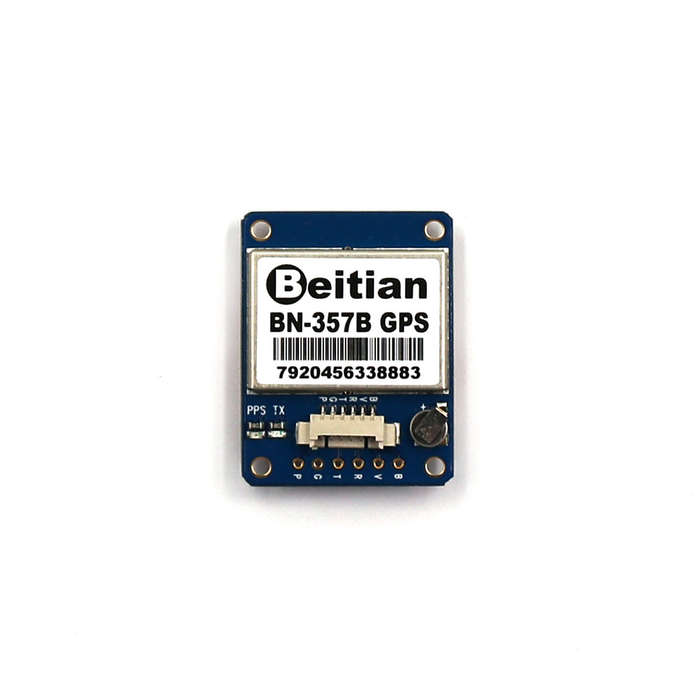

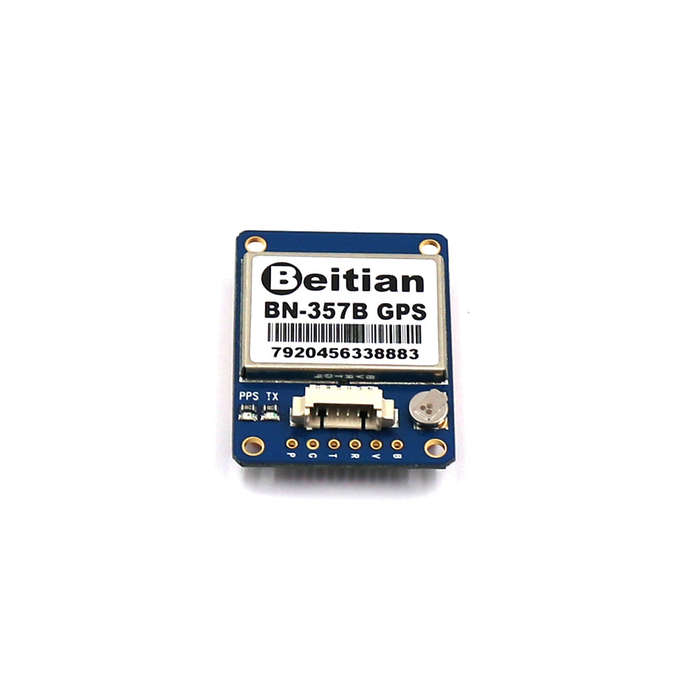

Built-in?LED
TX LED:?blue.?The data output, TX LED flashing
PPS LED: red.?PPS LED not bright when GPS not fixed, flashing when fixed
Package included:
1x?Beitian BN-357B?GPS+GLONASS Dual?module?
