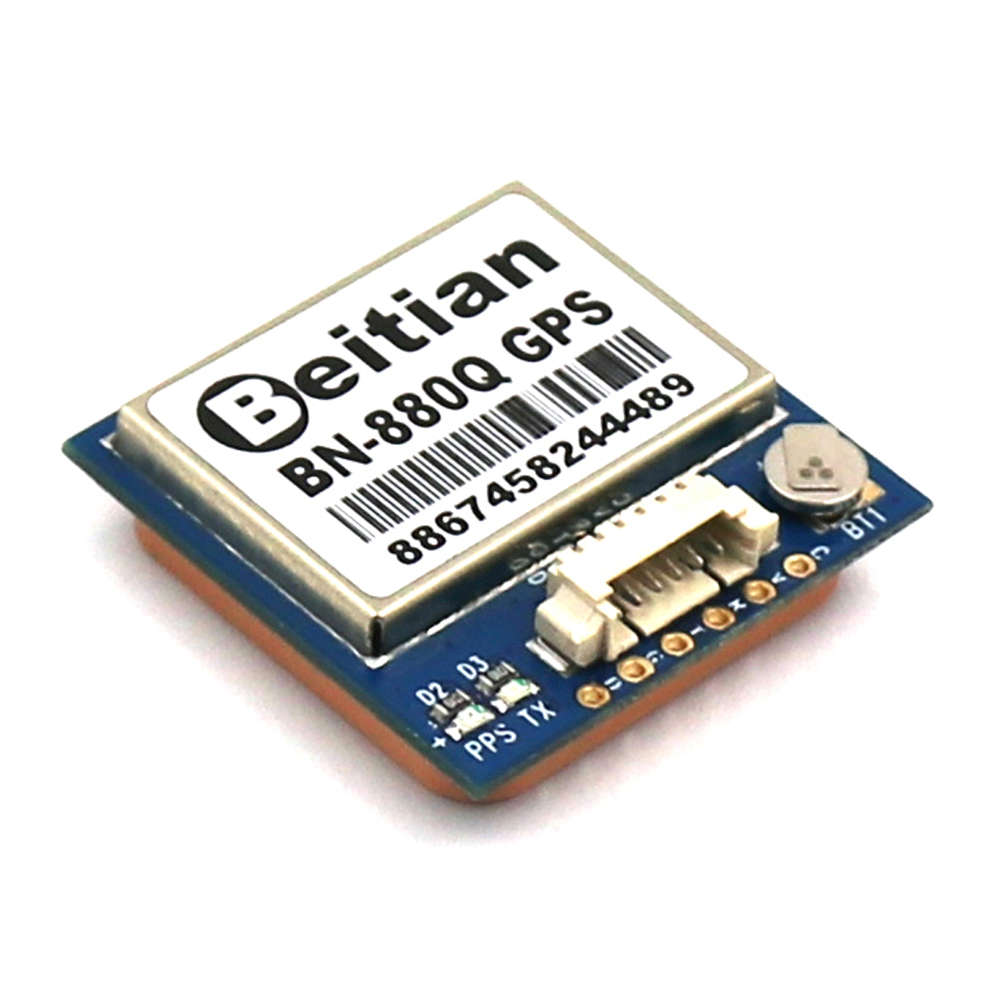

Beitian BN-880Q GPS+GLONASS Dual GPS Antenna Module FLASH TTL Level 9600bps for FPV RC Racing Drone

3 were available / new

R267.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

01Bargain_Hunter538

100.00 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

447779011

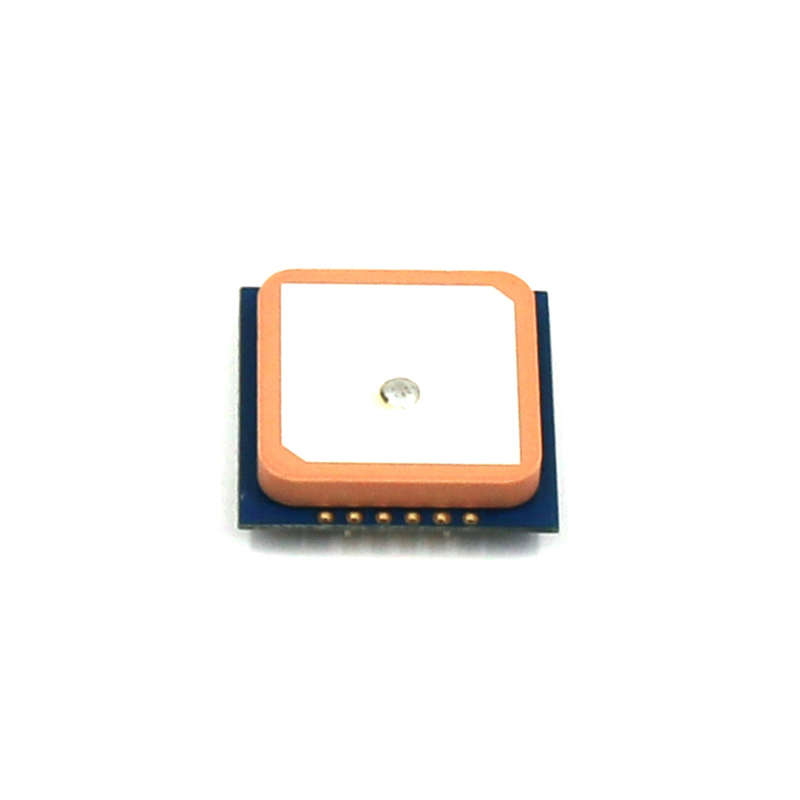

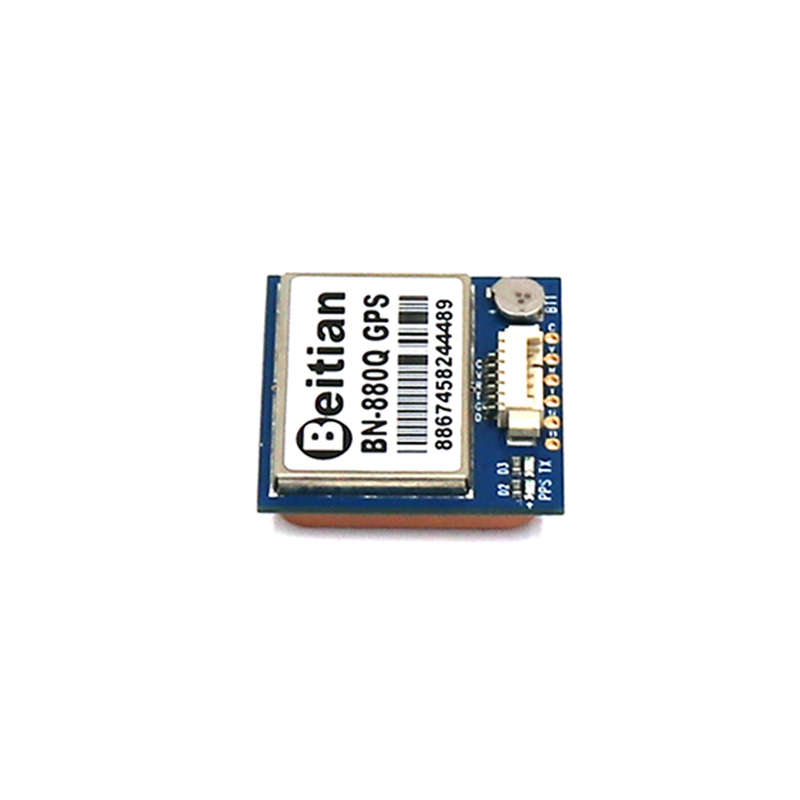

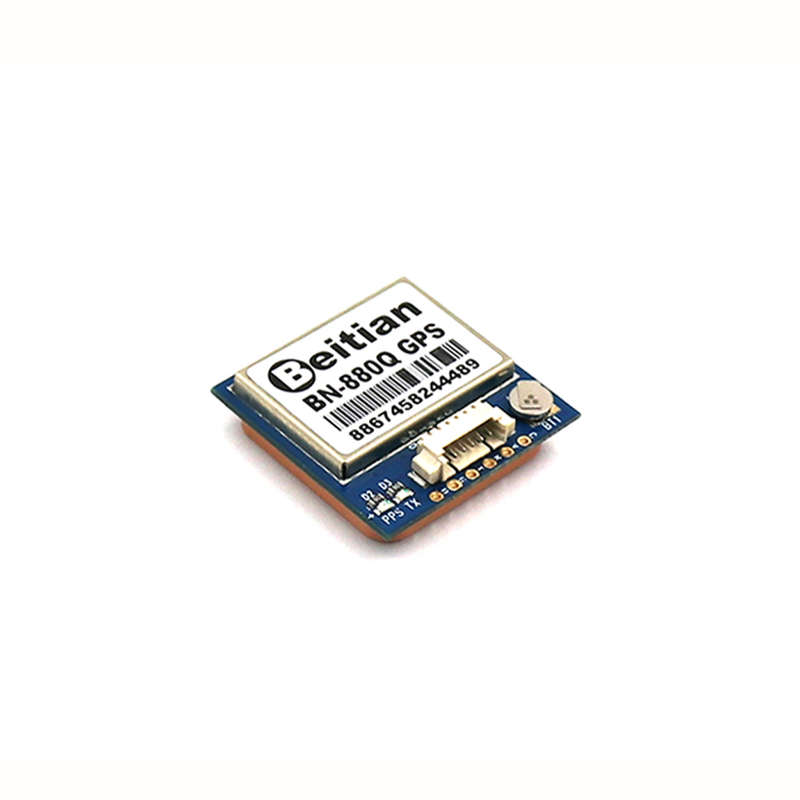

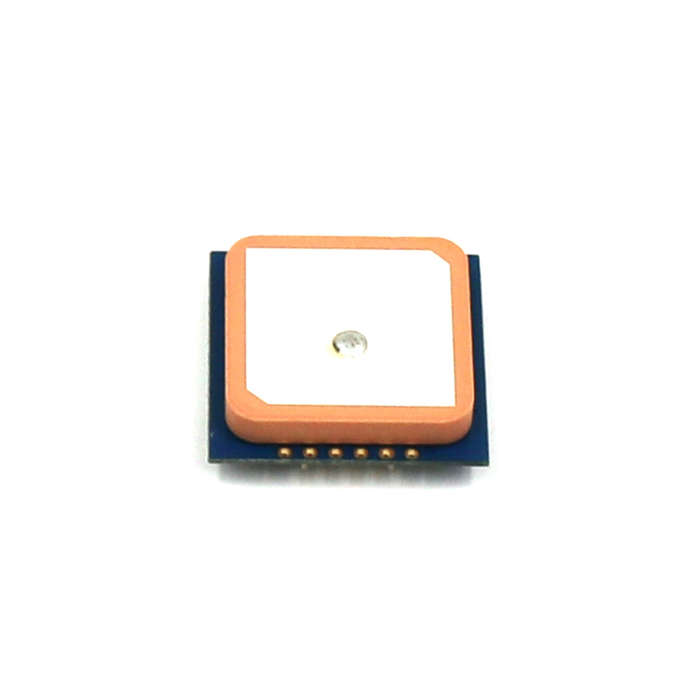

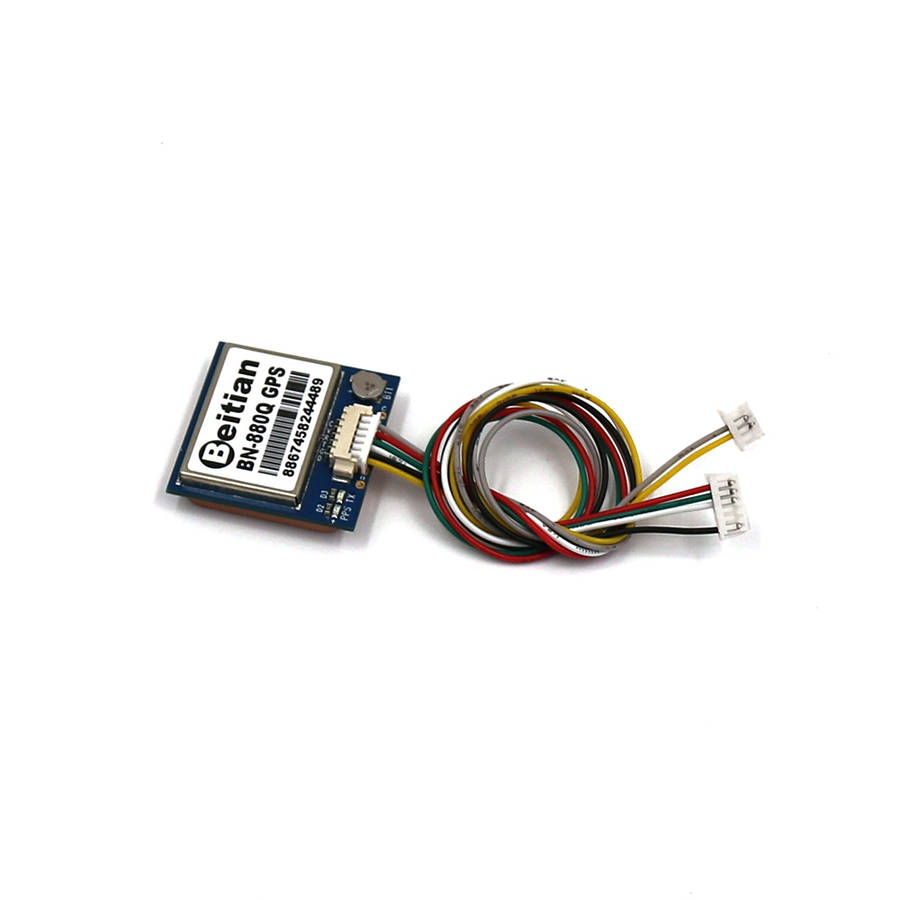

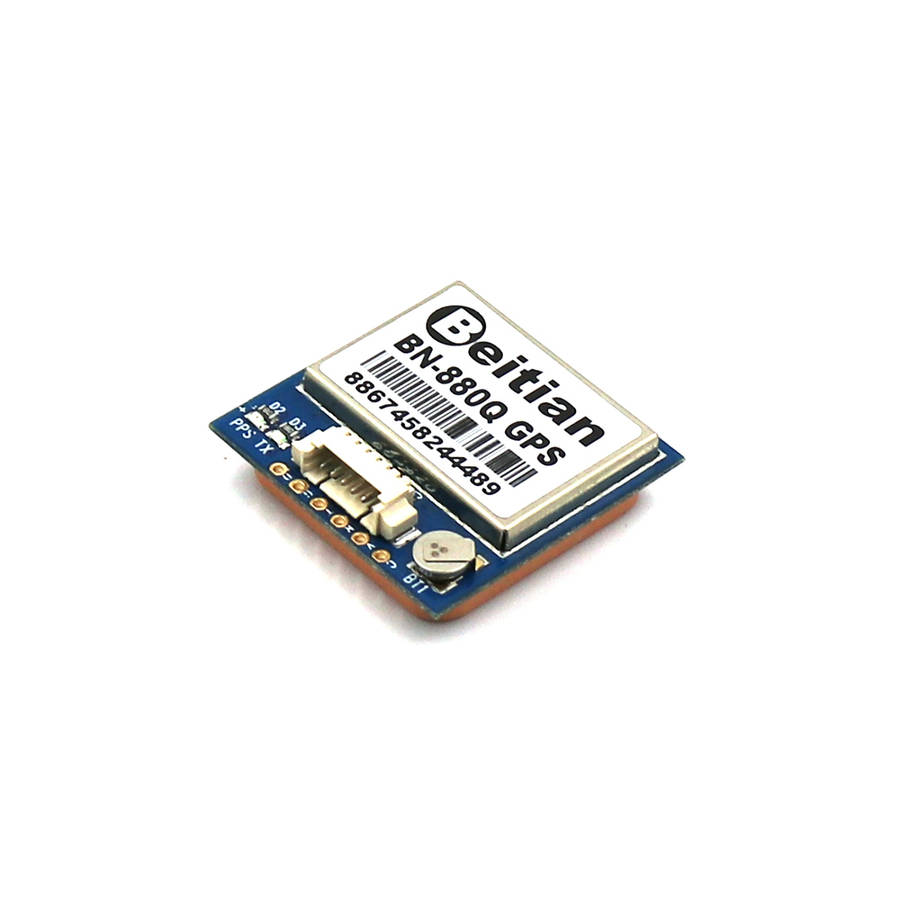

Beitian BN-880Q GPS+GLONASS Dual GPS Antenna Module FLASH TTL Level 9600bps for FPV RC Racing Drone

Description:
Brand name: Beitian
Item name: BN-880Q GPS+Glonass antenna module

Parameters	Description
Chip features	Chip	M8030-KT
	Frequency	LPS L1, GLONASS L1, BEIDOU B1,GALILEO E1, SBAS L1, QZSS L1
	Working mode	GPS, GLONASS, BEIDOU, GALILEO, SBAS and QZSS. Default GPS+GLAONASS+SBAS+QZSS
	Channel	72 searching channel
Sensitivity	Track	-167dBm
	Recapture	-160dBm
	Cold start	-148dBm
	Hot start	-156dBm
Precision	Horizontal accuracy	2.0 m CEP 2D RMS SBAS assist (open space)
	Speed accuracy	0.1m/s 95%(SA off)
	Time accuracy	1us
Startup time	Cold start	26s
	Warm start	25s
	Hot start	1s
Output data	Baud rate	4800bps-921600bps, default 9600bps
	Output level	TTL
	Output protocol	NMEA-0183 or UBX, default NMEA-0183 protocol
	NMEA sentences	RMC, VTG, GGA, GSA, GSV, GLL
	Update frequency	1Hz-10Hz, default 1Hz
	FLASH	4M FLASH, The configuration can be changed and will not be lost after power off
Working limit	Height	50,000m max
	Speed	515m/s max
	Gravity acceleration	4g max
Power consumption	Voltage	DC 3.0V-5.5V, typical: 5.0V
Power consumption	Current	Normal [email protected]
Physical parameter	Size	28mm28mm8mm
	Weight	12g

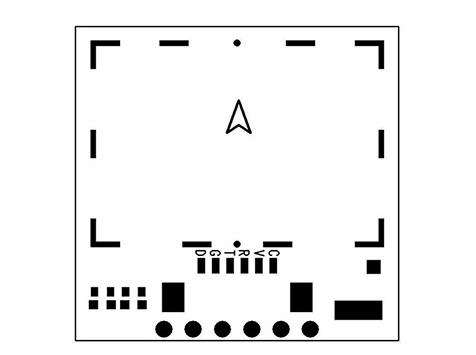

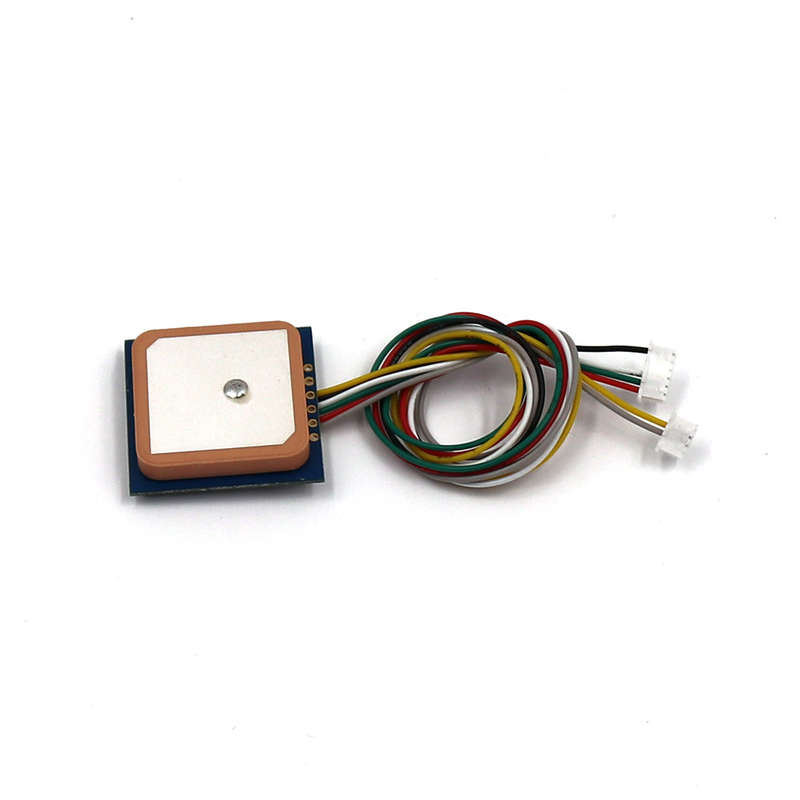

	Connector	1.25 pitch 6pin carrier
Environment	Operate temperature	-40￢ﾄﾃ~+85￢ﾄﾃ
Environment	Storage temperature	-40￢ﾄﾃ~-+105￢ﾄﾃ

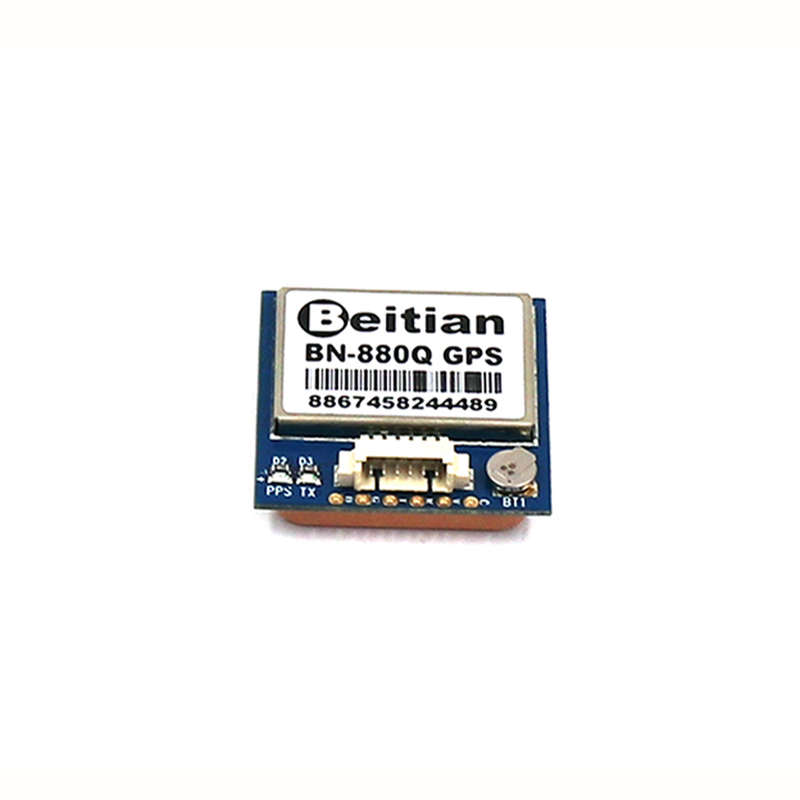

Indicator light	TX light	Blue light flashing when power-on, indicated that there is data output
Indicator light	PPS light	The light is not lit when it is not positioned; after 3D positioning, it starts to blink.
Compass	Compass	With internal electronic compass QMC5883
