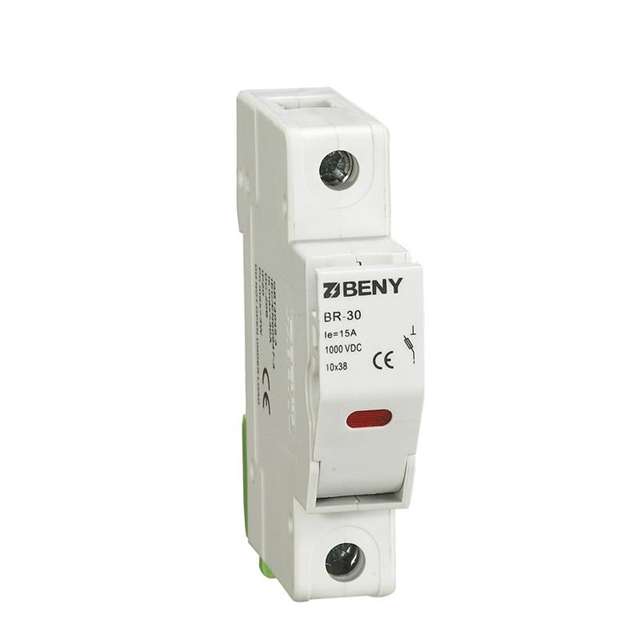

Beny PV Fuse Switch Disconnect 1P 32A 1000V rated, including 20A 10x38 PV Fuse - Beny 0.10kg

Beny PV Fuse Switch Disconnect 1P 32A 1000V rated, including 20A 10x38 PV Fuse - Beny 0.10kg

New 802 available
R129.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Customer ratings:
Product code
237
Bob Shop ID
546701135

ZJ-BENY PV DC BR-30 Fuse Holder was designed and manufactured , complying with the standard IEC60947-3. The RatedCurrent up to 30A,rated voltage up to 1000V DC. It applied for PV DC combiner box, inverter etc, with the main function of overcurrent protection and effective disconnection.

Includes a 20A 10x38 PV 1000V Fuse

  • Photovoltaic Applications
  • Max Breaking Capacity up to 20KA, Effective Protection
  • The Innovation Replacing Fuse Link
  • Touch-safe Led Indicator,
  • Reminding Fuse Link Replacement
  • Suitable for 10x38mm
  • Fuse Sizes Comply with : IEC6094-3

Parameters

  • PV DC BR-30
  • Fuse HolderPole 1P
  • According to IEC 60947-3
  • Electrical Characteristics
  • Rated Working Voltage Ue 1000V
  • DCRated Current In 30 A
  • Breaking Capacity 20KA
  • Max Power Dissipation 3W
  • Control and IndicationOperating State/Fault Indication Indicator Light OFF/Indicator Light ON
  • Connection and InstallationWire 2.5mm2~25
  • Terminal Screws M5
  • Torque Nm 2.5
  • Degree of Protection IP20
  • Installation EnvironmentFuse Size 10x38 mm
  • Operating Temperature Range TU -30℃~+70℃
  • For Mounting On TH35-7.5/DIN35
  • Pollution Degree 3
  • Relative Humidity +20 ℃≤ 95%,+40℃≤50%
  • Weight 0.07kg Per pole
  • Installation Class Ⅲ
