Product information

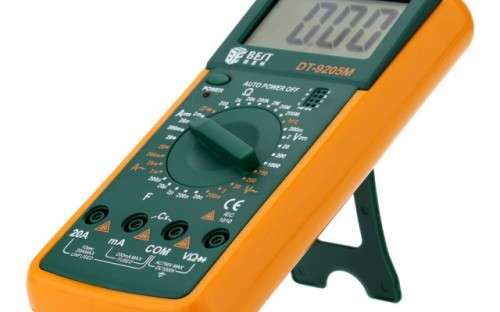

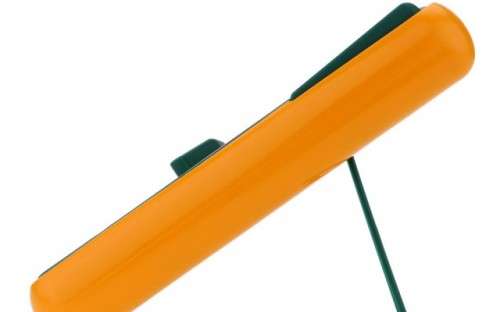

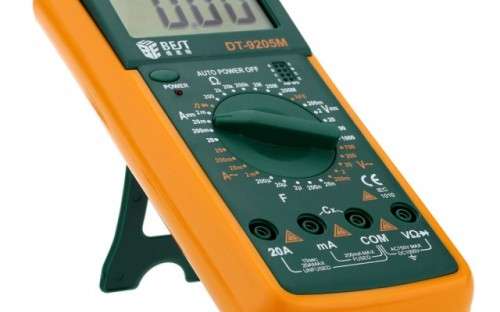

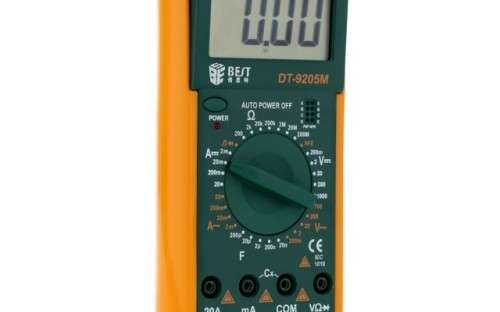

BEST DT-9205M Multi-function Digital Meter Intelligent Digit Multi-meter Multimeter
Can be used in: engineering design, laboratory, production test, factory affairs, field operation and industrial maintenance, etc.
Protection of full functional fault gear and over capacity.
High performance of protection against burning, with inside protective tube.
Auto power shut off function, better protection of the battery.
Data keeping function.
Big digital LCD display, easy to read.
Loud hum sound, clear to hear.
Metal shielding plate, high performance of antimagnetic and anti-interference.
The BEST DT-9205M digital multimeter is a kind of convenient operation, accurate reading, complete function, small size, easy to carry and using battery as power handheld large screen LCD multimeter. DT9205M for three and a half digital multimeter, the table can be used to measure dc voltage/current, ac voltage / current, resistance, capacitance testing, diode test, transistor HFE measurement and on-off circuit, etc.
Features:
Can be used in: engineering design, laboratory, production test, factory affairs, field operation and industrial maintenance, etc.
Protection of full functional fault gear and over capacity.
High performance of protection against burning, with inside protective tube.
Auto power shut off function, better protection of the battery.
Data keeping function.
Big digital LCD display, easy to read.
Loud hum sound, clear to hear.
Metal shielding plate, high performance of antimagnetic and anti-interference.
Note:
Please read the operating manual carefully and observe all the warnings and notes strictly.
Specifications:
Measurement Range and Basic Accuracyï¼ÂÂ
DC Voltage: 200mV/2V/20V/200V/1000V
AC Voltage: 200mV/2V/20V/200V/700V
Resolution: 100μV/1mV/10mV/100mV/1V
DC Current: 2mA/20mA/200mA/20A
AC Current: 2mA/20mA/200mA/20A
Resolution: 1μA/10μA/100μA/10mA
Resistance: 200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ/200MΩ
Resolution: 0.1Ω/1Ω/10Ω/100Ω/1kΩ/10kΩ/100kΩ
Capacitance: 2nF/20nF/200nμF/2μF/20μF/200μF/2000μF
Resolution: 1pF/10pF/100pF/1nF/10nF/100nF/1μF
Frequency: 2kHz/20kHz
Resolution: 1Hz/10Hz
Centigrade Temperature: -20°C ï½Â 1000°C
Resolution: 1°C
Input Impedance: 10MΩ
Maximum Display: 19999
Power Supply: 9V Battery(6F22) (Not Included)
LCD Size: 6.3 * 3.5cm / 2.5 * 1.4in
Item Color: Orange + Green
Test Lead Length: 71cm
Item Size: 19 * 9 * 3.5cm / 7.5 * 3.5 * 1.4in
Item Weight: 190.2g / 6.7oz
Package Size: 20.7 * 14.4 * 4cm / 8.1 * 5.6 * 1.6in
Package Weight: 293g / 10.3oz
Package List:
1 * Digit Multi-meter (Battery is not included.)
1 * Test Lead
1 * User Manual (Chinese and English)
