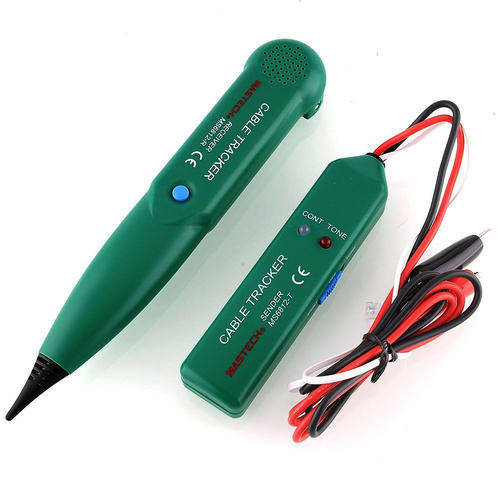

Best MASTECH MS6812 Network Cable Telephone Cord Tracker Tester Line Tracker

Introductionï¼Âš

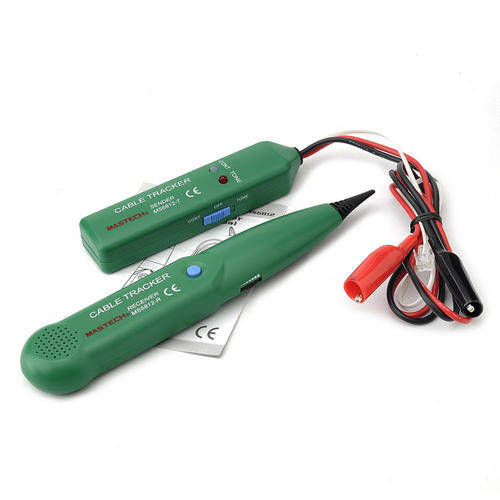

The cable tracker is designed to identify and trace wires or cables within a group without damaging the insulation. For telephone line, it can identify some state in the line, and more convenience to install, debug, maintain telephone line. There is a Sender (MS6812-T) and a Receiver (MS6812-R) included in the cable tracker.

Send tone frequency: 1.5kHz

Receive frequency range: 100 ~ 300kHz

Power supply: 6F22 (9V)  (Don't include the Battery)

Receiver size: 238mm x 35mm x 26mm

Emitter size: 140mm x 35mm x 25mm

Functionï¼Âš

Judge continuity of the cables or wires

Track the cables or wires, and diagnose the break point

Receiver the tone signal on the cables or wires (telephone line)

Identify the state in the working telephone line (clear ring, busy)

Send a single solid tone or a dual alternating tone to the object cables or wires

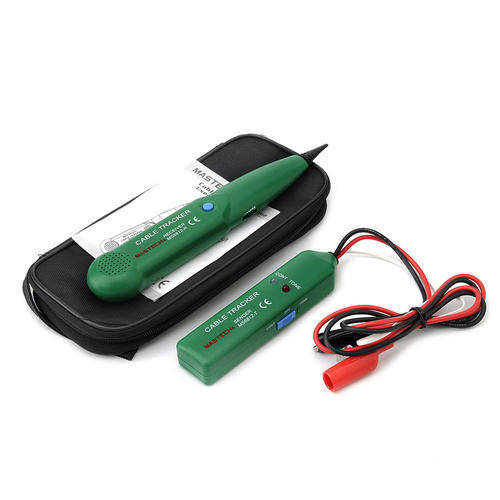

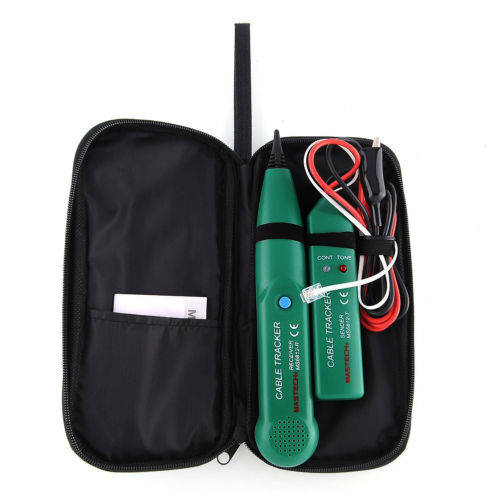

Package Included:

1PC X Sender

1PC X Receiver

1PC X Black Carrying Bag

1PC X  Instruction Manual

(Don't include the Battery)
