BESTEP 16 Channel 24V Relay Module LM2596 With Optocoupler Protection Low Level Trigger For Auduino

20 available / new

R492.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3462

93.47 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

641118274

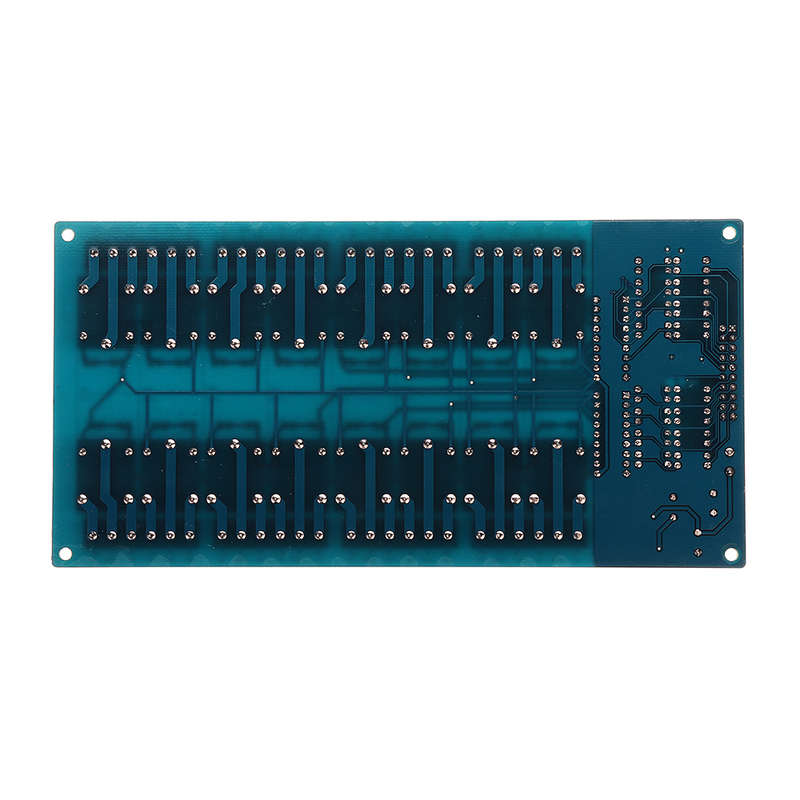

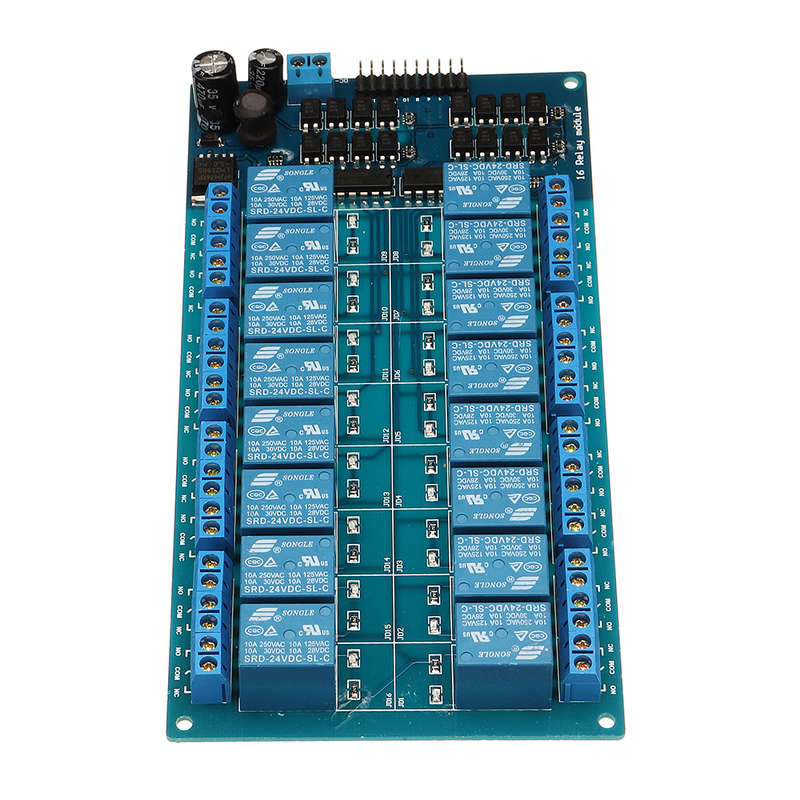

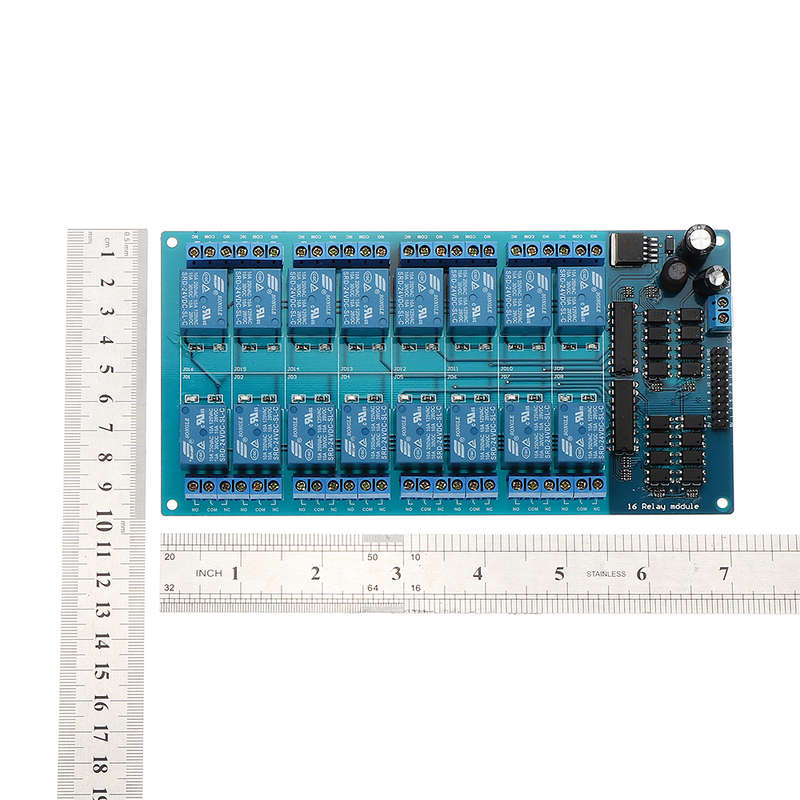

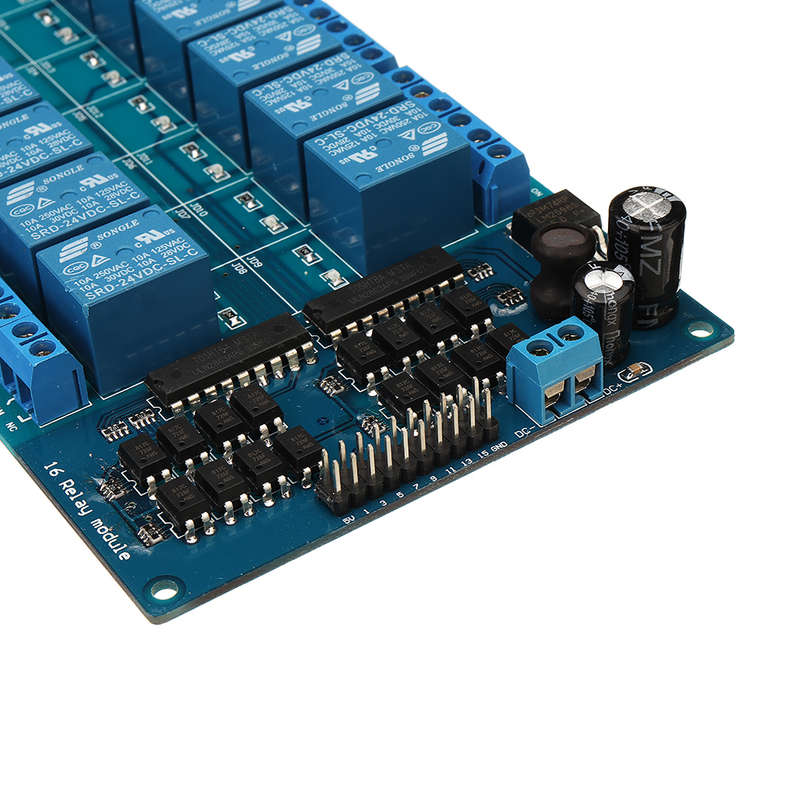

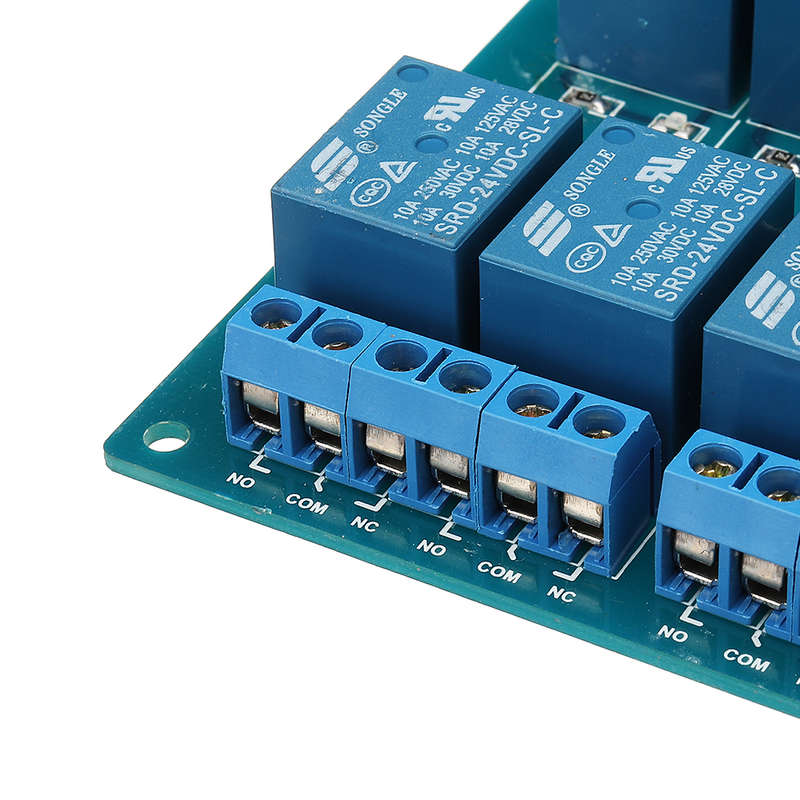

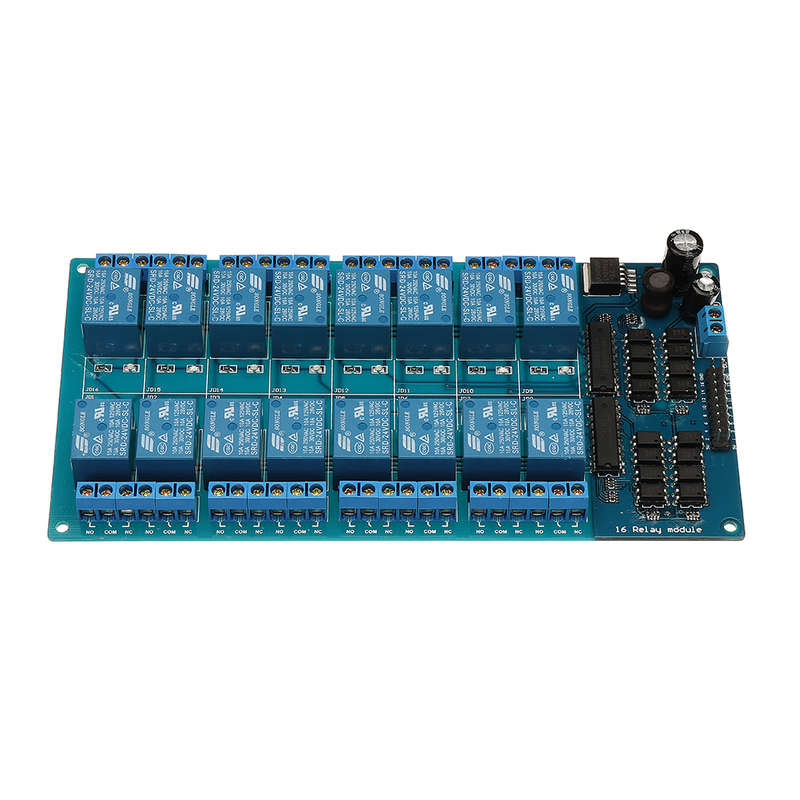

Application: 1. 24V relay contact capacity 10A 250V with optocoupler protection. The onboard power supply module does not require an external power supply. The I/O port drive is active low. 2. Can be used as a microcontroller development board, can be used as home appliance control, can also be used as PLC expansion output. Features: 1. Control signal voltage range: The trigger signal is low level 0-2V. 2. Adopting high quality isolated optocoupler, it has strong anti-interference ability and stable performance, the trigger current only needs 3mA. 3. 1-16 channels can be turned on/off at will, or any way. 4. Output form: Directly connected to AC 220V 10A or DC30V 10A load. 5. Each relay common terminal COM is independent, which is convenient for users to access different signals. Each relay has a normally closed and normally open port. 6. Each relay has an action indicator, which is illuminated and turned off. 7. The interface design is user-friendly, and all interfaces can be directly connected through the terminal block, which is very convenient. 8. There are 4 fixing bolt holes for easy installation. 9. PCB board size: 180 x 90 x 20mm (L x W x H) Electrical parameters: Supply voltage: 5V 24V (DC) Supply current: Greater than 200mA Each relay can be loaded: 250V 10A (AC) or 30V 10A (DC) Instructions: 1. The power supply should meet the scope of use, DC 24V. 2.The power supply cannot be reversed. 3. The product uses LM2596S step-down chip with slight heat, which is a normal phenomenon. The relay has normal heating phenomenon for a long time, which is a normal phenomenon. 4. The load power should have a certain margin for the relay load. Avoid high power (about 2000W) and work for a long time, which will have a certain impact on product life.

Package includes:

1 x 24V Relay module
