BESTEP 2 Channel 3V Relay Module Low Level Trigger Optocoupler Isolation For Auduino

20 available / new

R374.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3457

93.45 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641118275

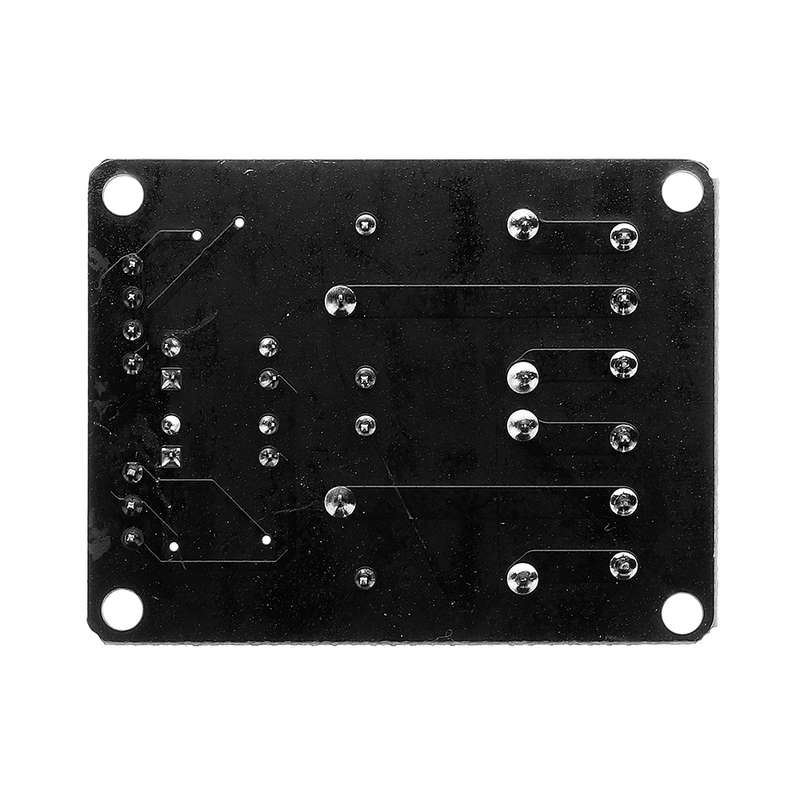

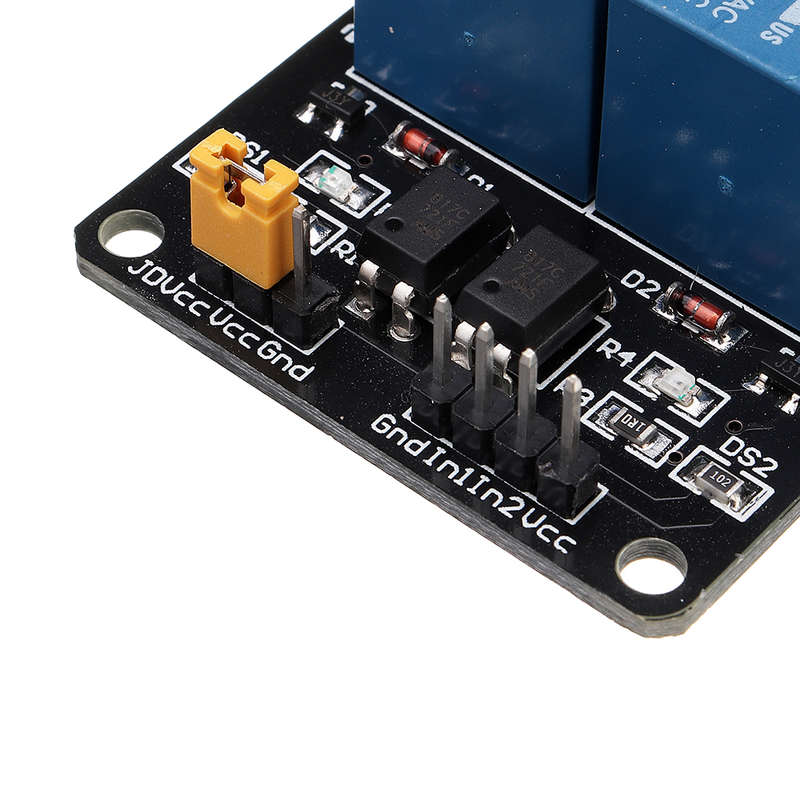

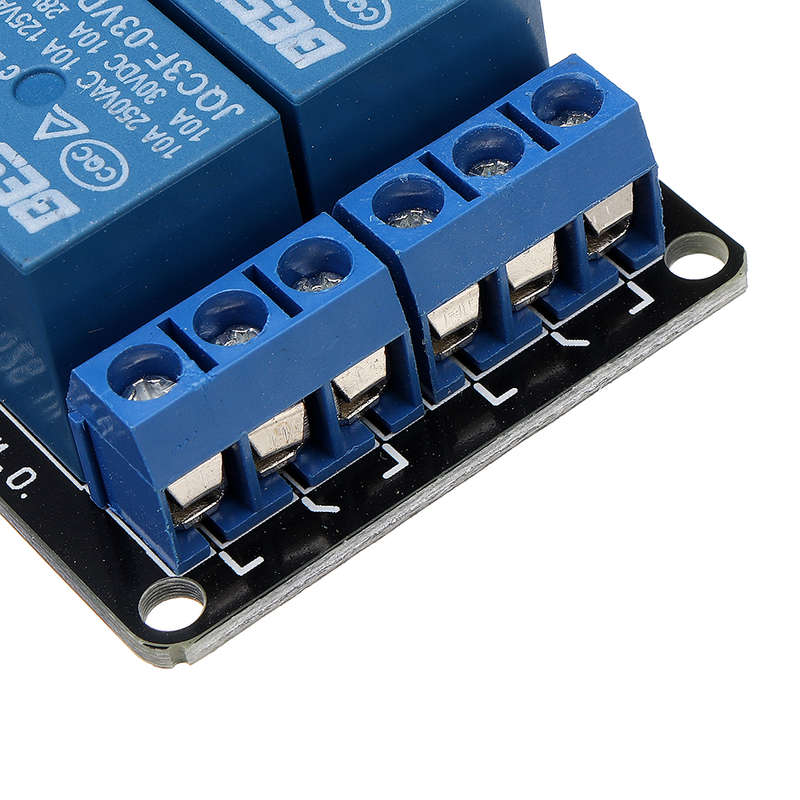

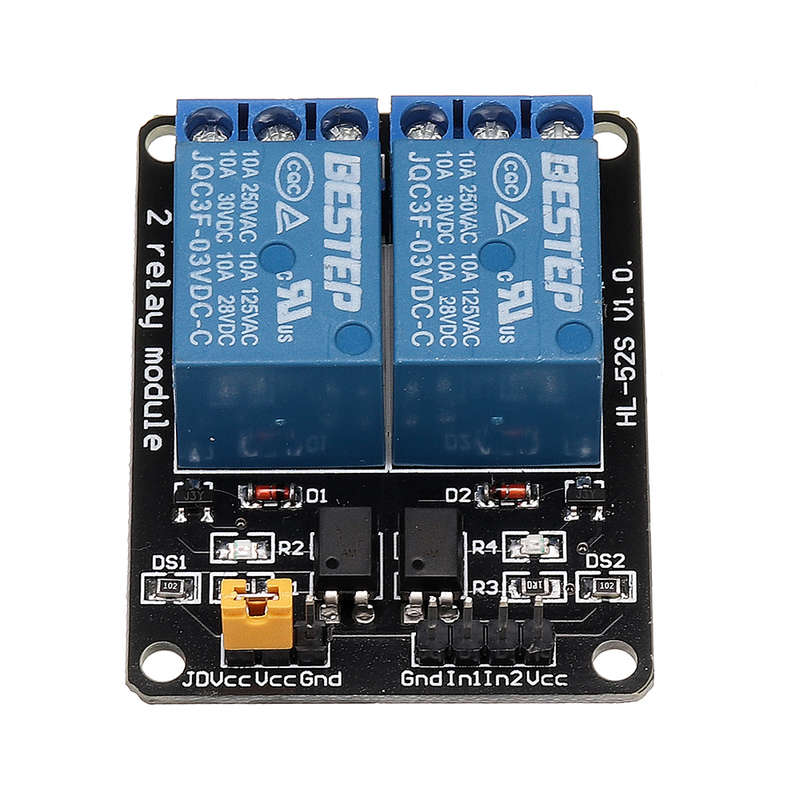

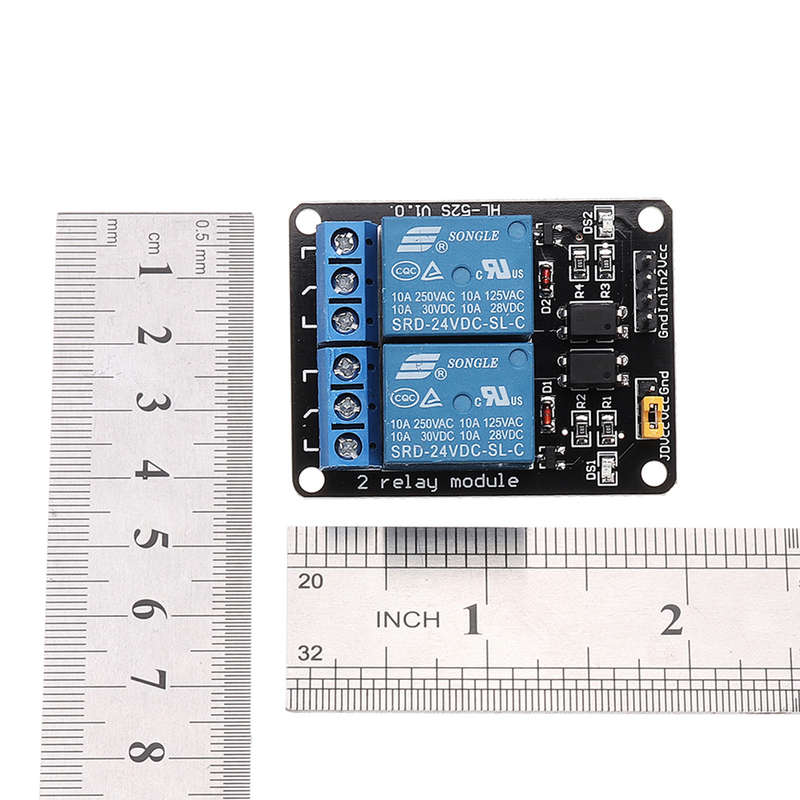

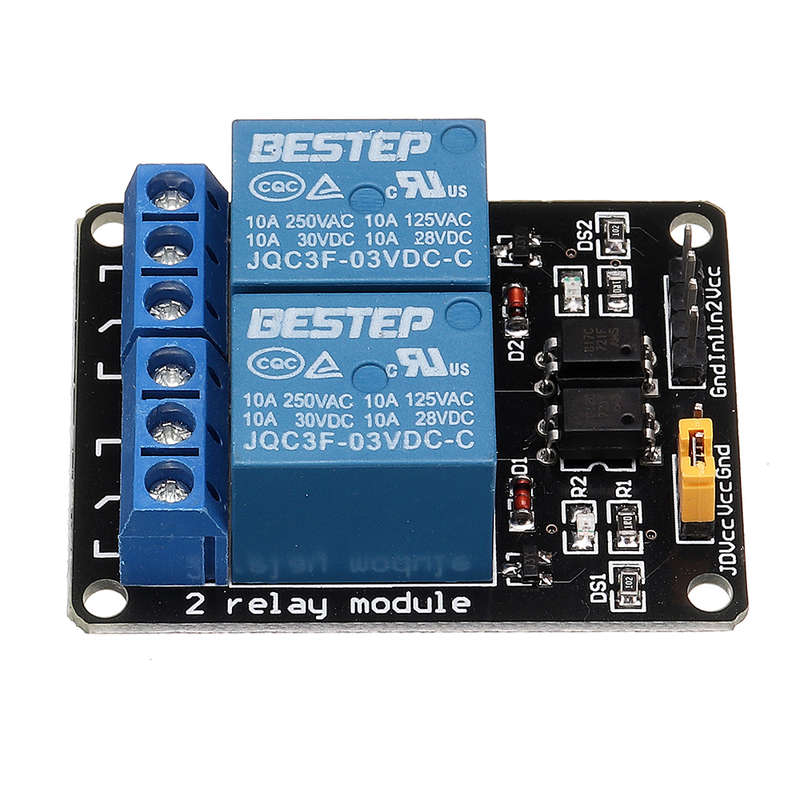

Module parameters: 1. Size: 50.5 x 38.5 x 18.5mm (length x width x height) 2. Weight: 31g 3. PCB color: Black 4. There are 4 fixing screw holes around the board, the hole diameter is 3.1mm, which is convenient for installation and fixing. 5. Relay with a common end, a normally open end, and a normally closed end 6. Optocoupler isolation, good anti-interference 7. Low level pull-in, high level release. The status indicator is on when the inverter is closed, and the status indicator is off when released. 8. VCC is the system power supply and JD_VCC is the relay power supply, use with the jumper cap Electrical parameters: Supply voltage: 3V Current: greater than 100mA Load: 250V 10A AC or 30V 10A DC Wiring instructions: VCC: System power supply positive GND: System power supply negative IN1--IN2: Relay Control Port (Do not reverse the connection, the reverse connection will cause the module to burn out.) Package includes: 1 x Relay Module
