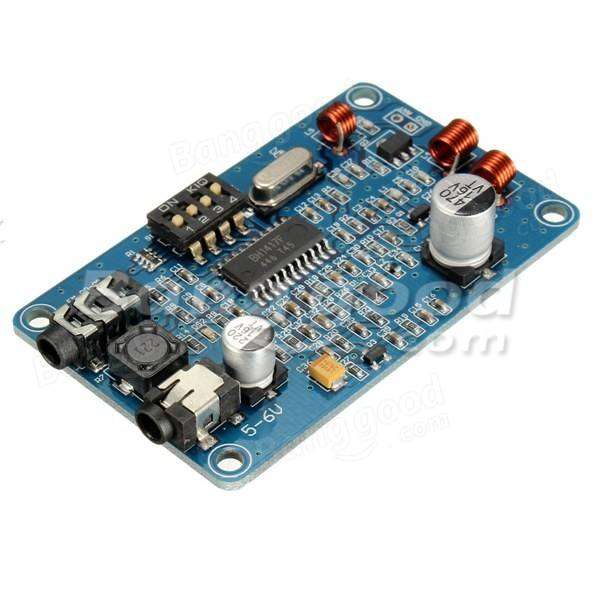

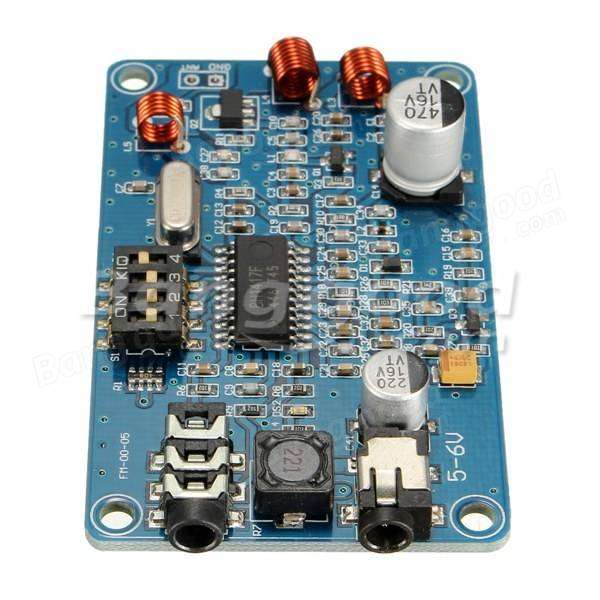

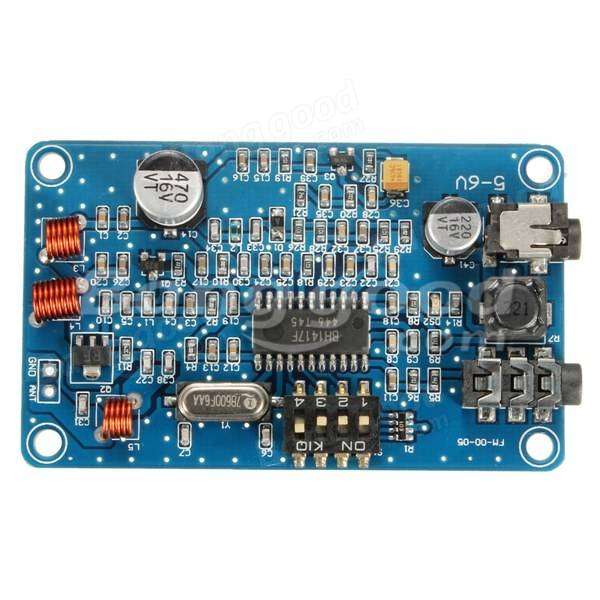

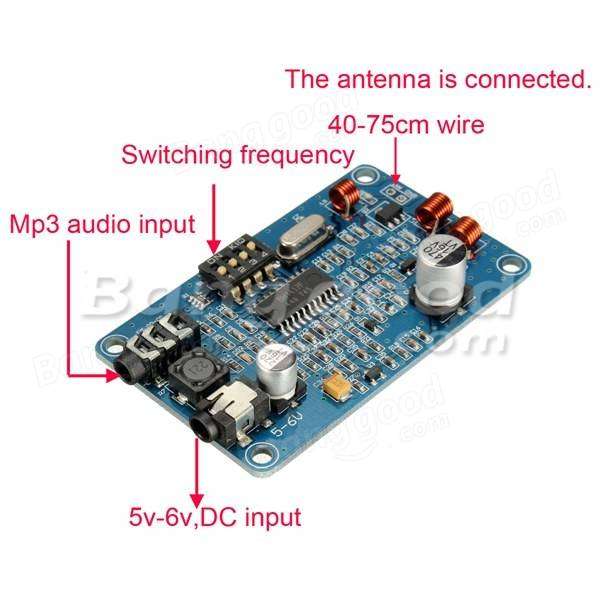

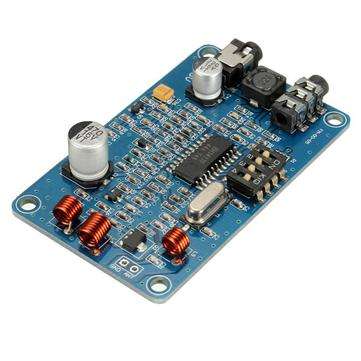

BH1417 200M 0.5W Digital Radio Station PLL Wireless Stereo FM Transmitter Module

BH1417 200M 0.5W Digital Radio Station PLL Wireless Stereo FM Transmitter Module

Features:

Two-channel stereo FM transmitter

PCB size: 65 x 39 x 1.6mm
Transmitting distance: 50-200 meters
Operating voltage: 5-6V
Modulation mode: FM stereo two-channel(default tune in 107.9MHZ)

PLL phase-locked loop frequency stability (no frequency drift)

Output power: 100-600mW
Carrier frequency tolerance:¿¿¿ 500Hz
Modulation capacity: >¿¿¿ 100KHz
FM signal to noise ratio: > 60dB
AM parasitic noise: ?50
Frequency response: 50Hz-15000Hz
Harmonic distortion:¿¿¿ 75 Hz at offset < 1% ¿¿¿ 100Hz frequency offset <1%
Rated deviation: ¿¿¿ 75KHz (100% modulation)
Ambient temperature: -10 ? - + 40 ?

Package included:

1 x Module

<

<

<


<
