Bi Directional IDE to SATA - SATA to IDE Convertor

Bi Directional

IDE to SATA Convertor / SATA to IDE Convertor

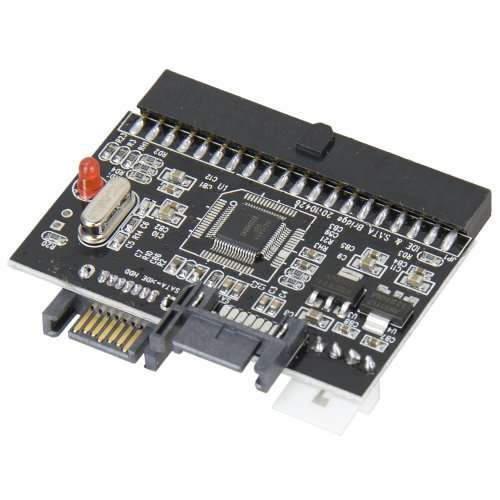

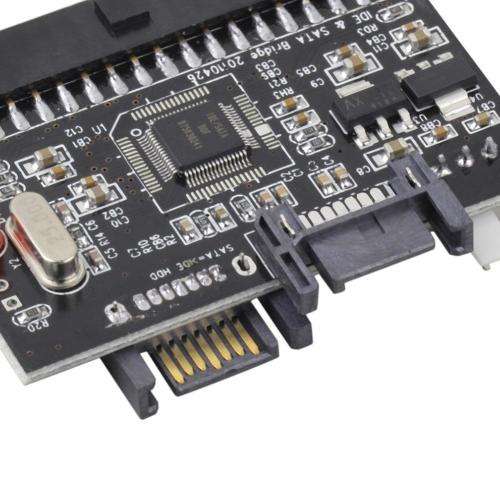

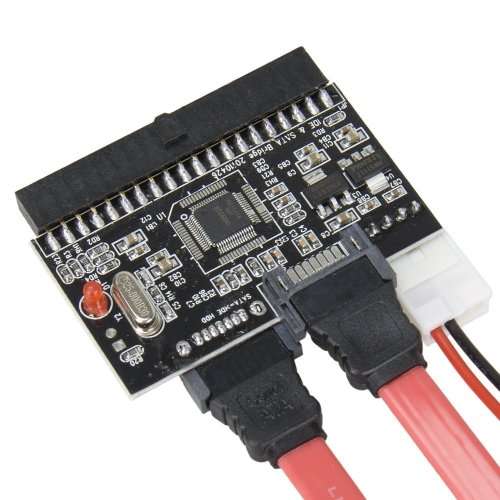

This is a bi-direction converter for Serial and Parallel ATA translation. It have one 40 pin IDE port, two Serial ATA port, one 4 pin power connector. whatever you want connect IDE hard drive disk to SATA port on motherboard or SATA hard drive disk to IDE port on motherboard, this bi-direction coverter can do it all.

Features

Bidirection converter for serial and parallel ATA translation.

Convert P-IDE (Standard Parallel IDE) to SATA interface and allow you to install the High performance SATA hard disk to your PC.

Convert SATA (Serial ATA) to IDE interface and allow you to install the IDE type hard disk to your PC.

Serial ATA 1.0 specification compliant.

Support Serial ATA hot-plug.

With LED indicated power.

Esay install & no driver needed.

Automatic Serial ATA 1.5Gbps speed negotiation.

ATA/ATAPI Ultra DMA of transfer rate 16.7,25,33,48,66,100,1300, and 150MB/s.

ATA/ATAPI LBA48 addressing mode associated with 2-byte sector count.

Ultra low power consumption.

Provide specified OOB signal detection and transmission.

Support spread spectrum clocking to reduece EMI.

Support partial/slumber power management.

Provide adjustable TX signal amplitude and pre-emphasis level.

Support HDD larger than 240GB.

Mini board size, no space wasted.

Support Windows 98/98SE/ME/2000/XP/Vista, Mac OS 8.6 and above.

Package Included

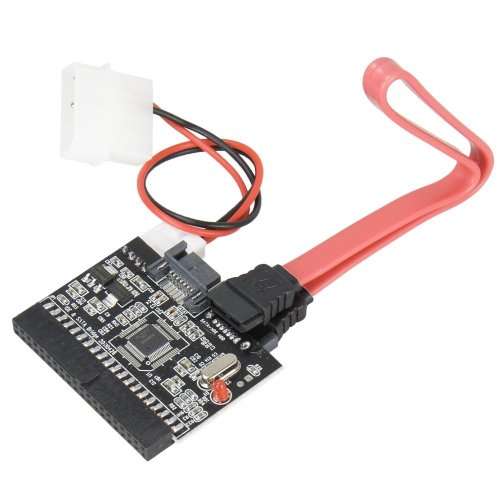

1 x IDE to SATA/SATA to IDE Converter.

1 x 4 Pin Power Cable.
