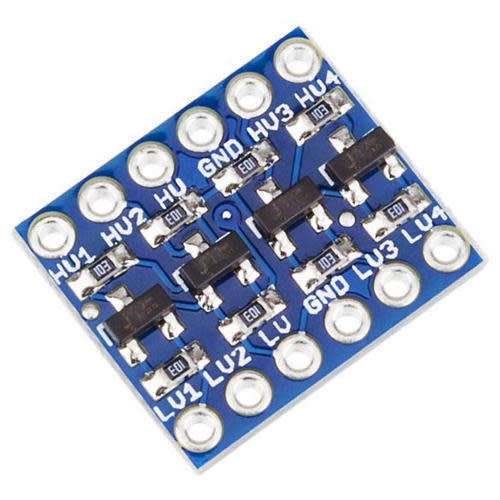

Bidirectional Logic Level Converter (3.3v to 5v)

Bi-directional logic level converter is a small device that safely steps down 5V signals to 3.3V AND steps up 3.3V to 5V at the same time. This level converter also works with 2.8V and 1.8V devices. What really separates this Logic level converter from our previous versions is that you can successfully set your high and low voltages and step up and down between them safely on the same channel. Each level converter has the capability of converting 4 pins on the high side to 4 pins on the low side with two inputs and two outputs provided for each side.

Specifications:

• Mutual transform between 5V TTL and 3.3V TTL
• Four channels of logic and high voltage low voltage logic can two-way transform
• Portable and lightness, with 2 rows 6 pin contact pins
• These are 4 Channel devices (great for I2C or SPI) and will work with all microcontrollers, Arduino, Raspberry Pi, Intel Edison, NXP Mbed
• Level Converter- 4 Channel Compatible with the bread plate, can be used directly put on the breadboard
