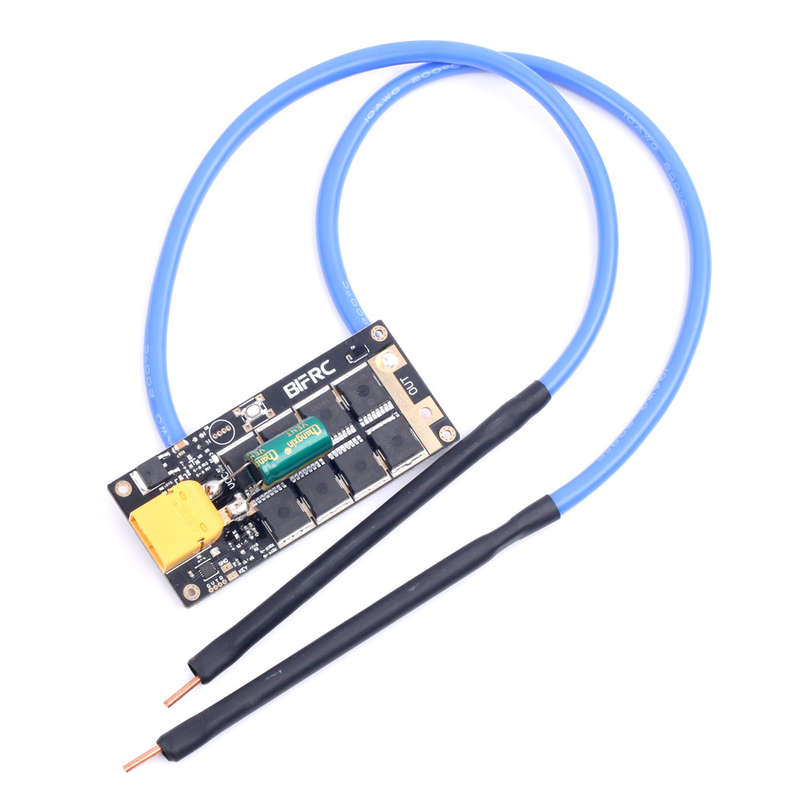

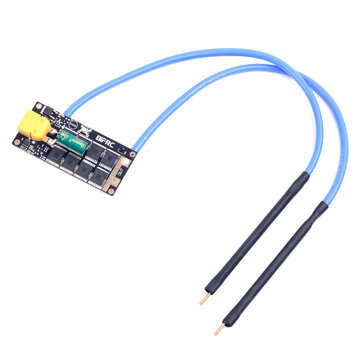

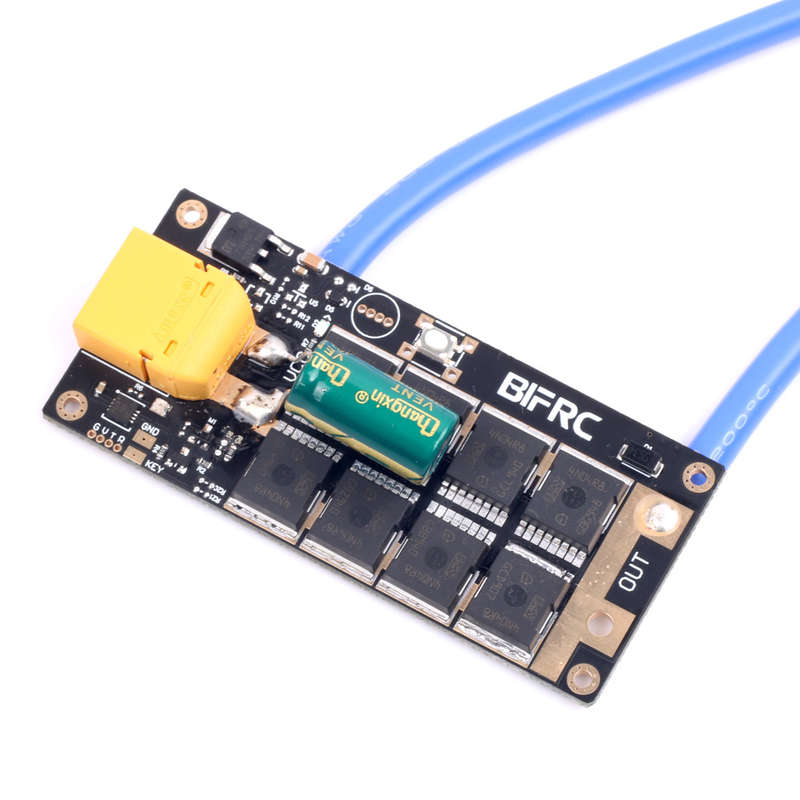

BIFRC V3 DIY Portable 12V Battery Energy Storage Spot Welding Machine PCB ... (TYPE: SPOTWELDINGPEN)

12 were available / new

R650.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3628

92.98 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

609841843

SELECTED OPTION:
TYPE: SPOTWELDINGPEN

Feature:
7-12V power supply Support auto mode Multiple gear selection Light instructions
Function introduction:

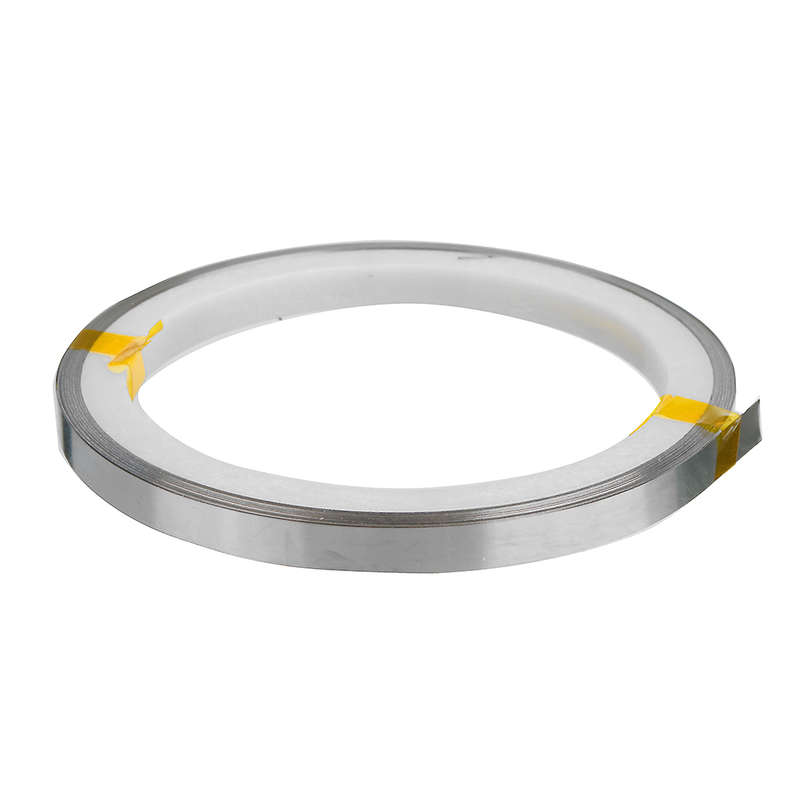

This circuit with 12V battery will become a storage spot welding machine for lithium battery, nickel-chromium battery and other nickel sheet welding, according to different configurations can be welded thickness of 0.1MM-0.15mm or so, we have customers A 0.2 mm thickness can be welded by replacing a thicker wire (10 square feet). After all, this device is for electronic enthusiasts, the frequency of use is not very high, so you can also use 0.1-0.15 solder 2 to replace thicker nickel.
Button function:
The button can switch modes. Each mode corresponds to different welding time. The LED corresponds to red/green/blue/white/yellow/powder/purple, 7 modes, the shortest red time and the largest purple welding time. Long press to set the waiting time, the default is 3 seconds, the maximum can be set to 10 seconds.
Basic parameters :
- Supply voltage: 7V-12V (capacity X rate = must be greater than 150A~200A) - Current requirements: 150A or more instantaneous output (such as car starter power supply, 3S RC high-power battery pack, 20A lead-acid battery with good performance above 20A) The 18650 battery and DC power cannot be used as a power supply. It must have a high rate RC battery or a car battery. - Working current: 150A-200A - Support: Farad capacitor
Note:
Requires certain welding technology and circuit knowledge. The parts received are parts, which need to be assembled by welding.
Notice:
Capacitors must be welded or instant restart will cause MOS break down.
