NON Wi-Fi MODEL

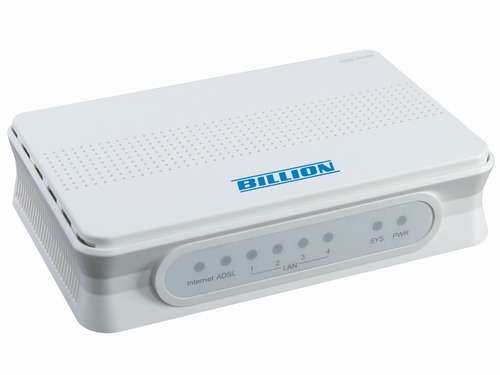

Easy to set up to surf the net! Billion’s BiPAC 7300 RA series is an all-in-one compact package of ADSL2+ router perfectly designed for home and SOHO users to enjoy the mobility and faster speed when using ADSL Internet connection. The device lets you access high-speed ADSL Internet connection, even faster with advanced ADSL2+ capability with downstream rate up to 24 Mbps. The router supports Easy Sign-On (EZSO) technology, enabling users to establish ADSL connections via standard web browsers such as Internet Explorer. This user-friendly design supports all kinds of operating systems, significantly reducing the time and efforts spent configuring your system. An abundance of integrated firewall security features such as SPI, DoS attack prevention, and URL Content Filtering provide users unparalleled protection from hackers. The Quality of Service feature ensures a smooth net connection for inbound and outbound data, with minimal traffic congestion.
- High speed Internet access with ADSL2/2+; backward compatible with ADSL
- Auto channel select
- SOHO firewall security with DoS prevention and packet filtering
- Easy Sign-On (EZSO) and web-based configuration
- Quality of Service control
- Universal Plug and Play (UPnP) Compliant
- Dynamic Domain Name System (DDNS)
- Supports VPN pass-through
- Ideal for home & SOHO users
- • Power jack
• Factory default reset button
• LAN: 4-port 10/100M auto-crossover (MDI/MDI-X) switch
• LINE: ADSL port
ADSL Compliance
• Compliant with ADSL Standard
- Full-rate ANSI T1.413 Issue 2
- G.dmt (ITU G.992.1)
- G.lite (ITU G.992.2)
- G.hs (ITU G.994.1)
- ADSL over ISDN/U-R2
• Compliant with ADSL2 Standard
- G.dmt.bis (ITU G.992.3)
- ADSL2 Annex M (ITU G.992.3 Annex M) (BiPAC 7300(G)RA A only)
• Compliant with ADSL2+ Standard
- G.dmt.bisplus (ITU G.992.5)
- ADSL2+ Annex M (ITU G.992.5 Annex M) (BiPAC 7300(G) RA A only)
Network Protocols and Features
• NAT, static routing and RIP-1/2
• NAT supports PAT and multimedia applications
• Transparent Bridging
• Virtual Server and DMZ
• SNTP, DNS relay and DDNS
• IGMP snooping and IGMP proxy
Firewall & Virtual Private Network (VPN)
• Built-in NAT Firewall
• Stateful Packet Inspection (SPI)
• Prevents DoS attacks including Land Attack, Ping of Death, etc.
• Remote access control for web base access
• Packet and URL filtering
• Password protection for system management
• VPN pass-through
Quality of Service Control
• Supports the DiffServ approach
• Traffic prioritization based-on IP protocol,port number and address
