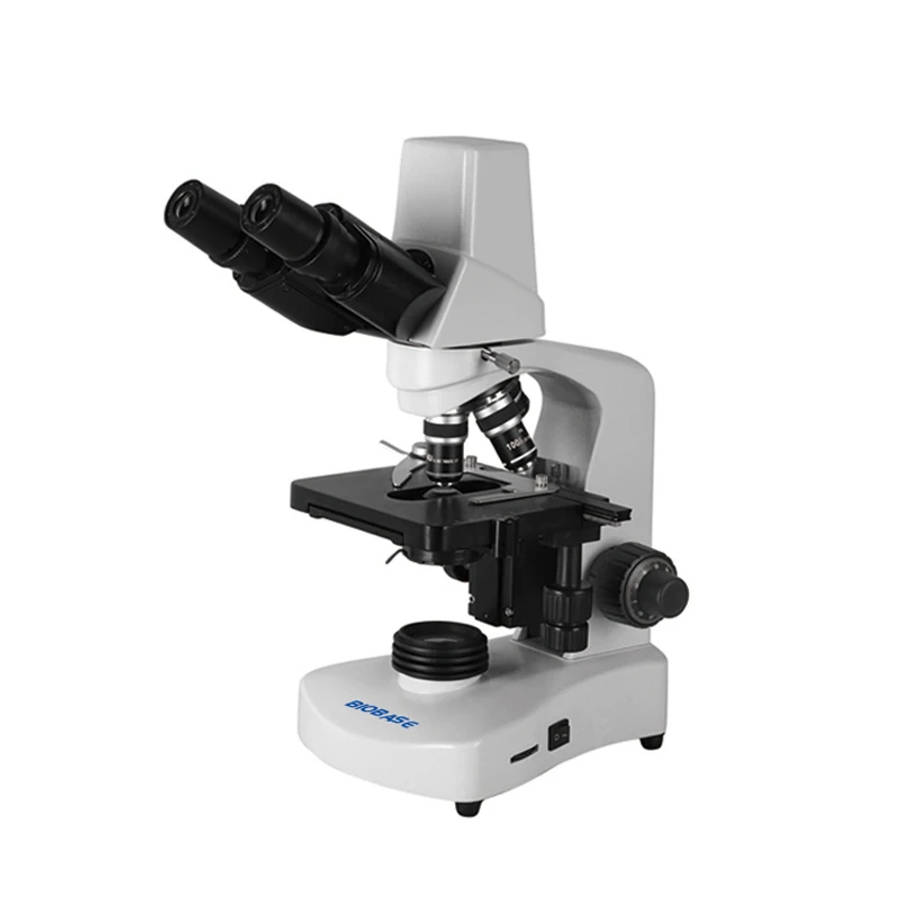

Biological Microscope-Build In Camera
Lead Time: 3-4 Weeks
Specification of Microscope
Model | BMB-117M | BMB-300M | |||
Viewing Head | Compensation Free Binocular Head, Inclined at 30°, Interpupilary Distance 48-75mm | ||||
Camera System | Valid Pixel | 1280*1024(1.3M Pixel) | |||
1600X1200 (2.0M Pixel) | |||||
2048*1036 (3.0M Pixel) | |||||
2052*1944 (5.0M Pixel) | |||||
Output Mode | USB2.0 | ||||
Operation System | WINDOWS7/8 2000 / XP/ VISTA | ||||
Software | Scope Image 9.0 | ||||
Range of Viewing Field | >90%(BMB-117M ); 18mm(BMB-300M) | ||||
Eyepiece | WF10×/ 18 | ||||
P16×/ 11 | |||||
Extra wide filed eyepiece EW10×/ 20 with diopter adjustment | |||||
Objective | Achromatic Objective 4×,10×,40×,100× | ||||
Infinite plan Achromatic Objective 4×,10×,40×,100× | |||||
Infinite Plan Achromatic Phase Objective 10×,20×,40×,100× | |||||
Oil Darkfield Objective with Iris Diaphragm 100×(NA0.36-1.25) | |||||
Nosepiece | Backward Quadruple Nosepiece | ||||
Quintuple Nosepiece | |||||
Quadruple Nosepiece | |||||
Stage | Double Layers Mechanical Stage 140*140mm, Moving range 75*50mm | ||||
Condenser | Abbe NA1.20 with Iris Diaphragm & Fliter | ||||
Swing Condenser N.A.0.9/0.25 | |||||
Turret Phase Contrast Condenser | |||||
Dark Field Condenser (Dry) |
