Socket : 1151
Chipset | Intel H110 |
CPU SUPPORT | 7th & 6th Gen Intel® Core™ i7 LGA 1151 Processor 7th & 6th Gen Intel® Core™ i5 LGA 1151 Processor 7th & 6th Gen Intel® Core™ i3 LGA 1151 Processor 7th & 6th Gen Intel® Pentium® LGA 1151 Processor 7th & 6th Gen Intel® Celeron® LGA 1151 Processor Maximum CPU TDP (Thermal Design Power) : 91Watt |
MEMORY | Support Dual Channel DDR4 2400/ 2133/ 1866 MHz 2 x DDR4 DIMM Memory Slot Max. Supports up to 32GB Memory * DDR4 2400 for 7th Generation Intel® Core™ Processor Family |
EXPANSION SLOT | 1 x PCI-E x16 3.0 Slot 2 x PCI-E x1 2.0 Slot |
STORAGE | 4 x SATA3 Connector |
USB | 2 x USB 3.0 Port 1 x USB 3.0 Header 2 x USB 2.0 Port 2 x USB 2.0 Header |
LAN | Realtek RTL8111H - 10/100/1000 Controller |
INTEGRATED VIDEO | By CPU model Supports DX12 Supports HDCP |
CODEC | Realtek ALC887 8-Channel HD Audio |

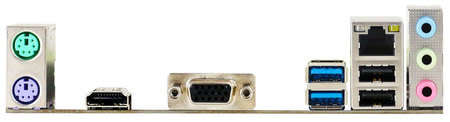

REAR I/O | 1 x PS/2 Mouse 1 x PS/2 Keyboard 2 x USB 3.0 Port 2 x USB 2.0 Port 1 x HDMI Connector, resolution up to 3840 x 2160 @30Hz 1 x VGA Port, resolution up to 1920 x 1200 @60Hz 1 x RJ-45 Port 3 x Audio Connector |
INTERNAL I/O | 1 x USB 3.0 Header 2 x USB 2.0 Header 4 x SATA3 6Gb/s Connector 1 x Front Audio Header 1 x Front Panel Header 1 x CPU Fan Header 1 x System Fan Header 1 x Serial Header |
H/W MONITORING | CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control System Voltage Monitoring |
DIMENSION | Micro ATX Form Factor Dimension: 22.6cm x 17.1cm ( W x L ) |
OS SUPPORT | Support Windows 10(x64) for Intel 7th Generation Processor ¿Support Windows 7 / 8.1(x64) / 10(x64) for Intel 6th Generation Processor |
BUNDLE SOFTWARE | BullGuard Smart Speed LAN(Windows 7/ 8.1 only) |
ACCESSORIES | 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide |
FEATURES | Supports 100% Solid capacitor Supports Charger Booster Supports BIOS Online Update |
Full Specs: http://www.biostar-usa.com/app/en-us/mb/introduction.php?S_ID=877
MOTHERBOARD IS BRAND NEW BUT BOX HAS BEEN OPENED AND RAM INSTALLED, NO CPU INCLUDED.
