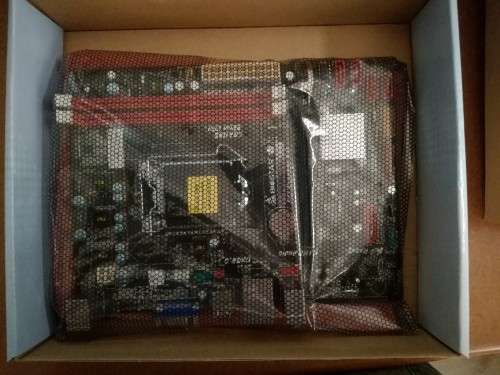

Second hand but unused, Biostar H61MGV Motherboard, in box with all contents.
ChipsetIntel H61
CPU SUPPORT
Intel® Core™ i7 LGA 1155 Processor
Intel® Core™ i5 LGA 1155 Processor
Intel® Core™ i3 LGA 1155 Processor
Intel® Pentium® LGA 1155 Processor
Intel® Celeron® LGA 1155 Processor
Maximum CPU TDP (Thermal Design Power) : 95Watt
MEMORY
Support Dual Channel DDR3 1600/1333/1066 MHz
2 x DDR3 DIMM Memory Slot
Max. Supports up to 16GB Memory
EXPANSION SLOT
1 x PCI-E x16 3.0 Slot(supported by Core i5 -3xxx / Core i7 3xxx CPU)
1 x PCI-E x1 2.0 Slot
STORAGE
4 x SATA2 Connector
USB
4 x USB 2.0 Port
2 x USB 2.0 Header
LAN
Realtek RTL8111F - 10/100/1000 Controller
INTEGRATED VIDEO
By CPU model
CODEC
Realtek ALC662 6-Channel HD Audio
REAR
I/O1 x PS/2 Mouse
1 x PS/2 Keyboard
4 x USB 2.0 Port
1 x VGA Port
1 x RJ-45 Port
3 x Audio Connector
INTERNAL
I/O2 x USB 2.0 Header
4 x SATA2 3Gb/s Connector
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Header
1 x System Fan Header
1 x Serial Header
H/W MONITORING
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
DIMENSION
Micro ATX Form Factor Dimension: 22.6cm x 17cm ( W x L )
OS SUPPORT
Support Windows XP / Vista / 7 / 8

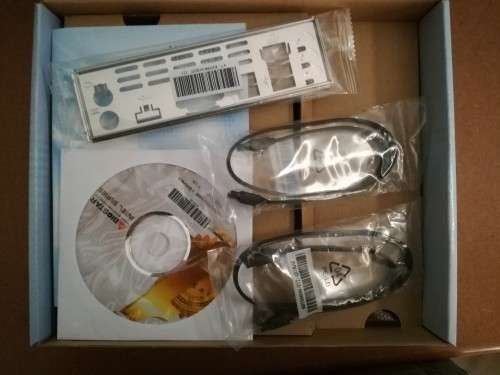

ACCESSORIES
2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
