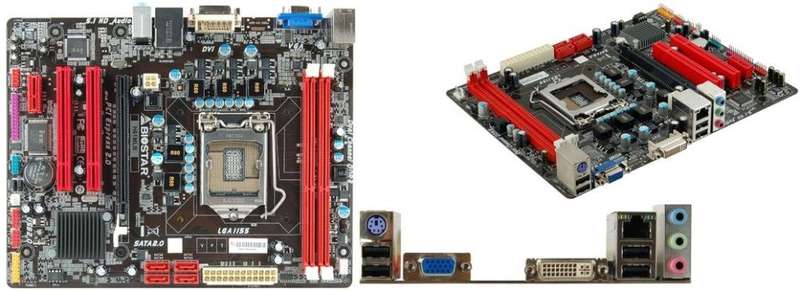

Biostar H61MLB Socket LGA 1155 Motherboard-support 2nd Generation Core i7 / i5 / i3 / Pentium / Celeron processors , Intel H61 chipset, 2x Dual Channel DDR3-1333/1600 memory slots , 4 x SATA 3Gb/s Connectors, On-board Dual-display VGA D-Sub and DVI, On-board 6 Channels VIA VT1708B Audio , 1 x PCI Express 2.0 x16, 1 x PCI Express x1, 2 x PCI Slots, On-board Ethernet LAN Atheros AR8152 Chipset 10/100Mbps, 4 x USB 2.0, 2 x USB 2.0 Header,1 x Printer Header, 1 x Front Audio Header, 1 x Front Panel Header, 1 x CPU FAN Header, 1 x System FAN Header, 1 x Serial Header, Micro ATX Form Factor Dimension: 2( W x L ) 4.4cm x 19cm, Retail Box, 2 year warranty
Product Overview
The Biostar H61MLB LGA 1155 H61 mATX Intel Motherboard is packed full of features. Supports the Sandy Bridge i3/i5/i7 processors up to 95W TDP. Based on the Intel H61 chipset, the Biostar H61MLB mATX motherboard delivers fast computing for gamers, digital media enthusiasts and everyday power users. Two 240-pin DIMM sockets allow you to add up to 16 GB of DDR3 RAM with bus speeds of up to 1600 MHz . it also features USB 2.0, VGA, DVI-I, PS/2 and audio ports provide easy connection to external devices!
Enjoy high quality sound with integrated VIA VT1708B 6-Channel high definition audio. Connect high speed storage drives with up to 3.0 Gb/s data transfer rate thanks to four Serial ATA ports. Network connectivity is provided via integrated Atheros AR8152 10/100 Ethernet LAN port! Expansion is plentiful thanks to one PCI Express x16 3.0 slot, one PCI Express x1 2.0 slot and two PCI slots.
Highlights
¿ Supports Intel 2nd Generation Sandy Bridge Core i7, i5, i3, Pentium and Celeron processors
¿ Intel H61 chipset
¿ Socket LGA1155 architecture
¿ DVI and D-Sub Video Outputs
¿ 2x DDR3 Slots for up to 16GB at 1333/1066MHz
¿ 4x SATA 3Gb/s Connectors
¿ Integrated Atheros AR8152 10/100 Ethernet controller
¿ Integrated VIA VT1708B 6-Channel high definition audio
¿ Supports BIO-Remote 2 Technology
¿ Supports Charger Booster Technology
¿ mATX form factor
