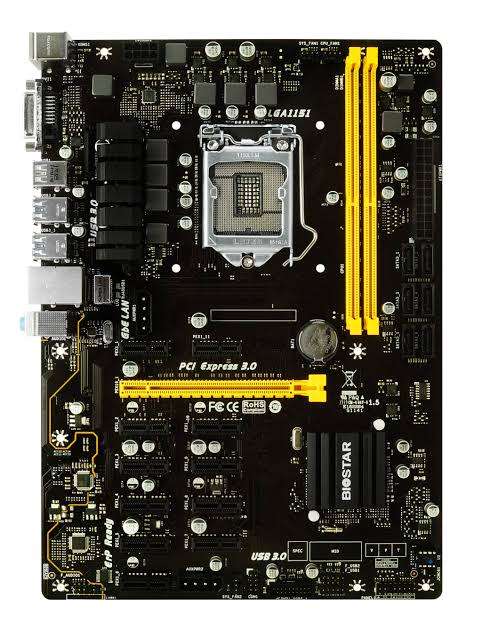

Biostar TB250-BTC PRO Bitcoin Socket 1151 Motherboard

Biostar TB250-BTC Bitcoin Socket 1151 Motherboard

Used Biostar TB250-BTC Pro Motherboard in great condition

Chipset
- Intel B250

CPU SUPPORT
- Intel Core i7 LGA 1151 Processor
- Intel Core i5 LGA 1151 Processor
- Intel Core i3 LGA 1151 Processor
- Intel Pentium LGA 1151 Processor
- Intel Celeron LGA 1151 Processor
- Maximum CPU TDP (Thermal Design Power): 95Watt

MEMORY
- Support Dual Channel DDR4 2400/ 2133/ 1866 MHz
- 2 x DDR4 DIMM Memory Slot
- Max. Supports up to 32GB Memory
- DDR4 2400 for 7th Generation Intel Core Processor Family

EXPANSION SLOT
- 1 x PCI-E x16 3.0 Slot
- 5 x PCI-E x1 3.0 Slot(using for bitcoin mining, it is suggested to change to PCI-E 1.0 via BIOS)

STORAGE
- 6 x SATA3 Connector
- 1 x M.2 Key M 32Gb/s Connector, support M.2 type 2242/ 2260/ 2280 SATA 6Gb/s and PCIe Storage

USB
- 4 x USB 3.0 Port
- 1 x USB 3.0 Header
- 2 x USB 2.0 Port
- 2 x USB 2.0 Port(only 5V power, up to 1.5A)
- 2 x USB 2.0 Header

LAN
- Realtek RTL8111H - 10/100/1000 Controller
- Support Super LAN Surge Protection

INTEGRATED VIDEO
- By CPU model
- Supports DX12
- Supports HDCP

CODEC
- Realtek ALC887 8-Channel HD Audio
- Support HD Audio

REAR I/O
- 1 x PS/2 Mouse
- 1 x PS/2 Keyboard
- 4 x USB 3.0 Port
- 2 x USB 2.0 Port
- 2 x USB 2.0 Port(only 5V power, up to 1.5A)
- 1 x DVI-D Connector, resolution up to 1920 x 1200 @60Hz
- 1 x RJ-45 Port
- 3 x Audio Connector

INTERNAL I/O
- 1 x USB 3.0 Header
- 2 x USB 2.0 Header
- 6 x SATA3 6Gb/s Connector
- 1 x SATA Power Connector(for rear USB power enhancement)
- 1 x M.2 Key M 32Gb/s Connector, support M.2 type 2242/ 2260/ 2280 SATA 6Gb/s & PCIe Storage
- 1 x Front Audio Header
- 1 x Front Panel Header
- 1 x CPU Fan Header
- 2 x System Fan Header
- 1 x Serial Header
- 2 x PCI-E 12V 4Pin Connector(Must be installed when using for bitcoin mining.)

H/W MONITORING
- CPU / System Temperature Monitoring
- CPU / System Fan Monitoring
- Smart / Manual CPU Fan Control
- System Voltage Monitoring

DIMENSION
- ATX Form Factor Dimension: 29.5cm x 21cm ( W x L )

OS SUPPORT
- Support Windows 10(x64) for Intel 7th Generation Processor
- Support Windows 7 / 8.1(x64) / 10(x64) for Intel 6th Generation Processor

BUNDLE SOFTWARE
- BullGuard
- Smart Speed LAN(Windows 7/ 8.1 only)
- Intel Rapid Storage Technology

FEATURES
- Supports 100 percent Solid capacitor
- Supports Charger Booster
- Supports BIOS Online Update

WHAT'S IN THE BOX
- 1 x Biostar TB250-BTC Pro Motherboard
- 2 x SATA Cable
- 1 x I/O Shield
- 1 x DVD Driver
- 1 x User Manual
