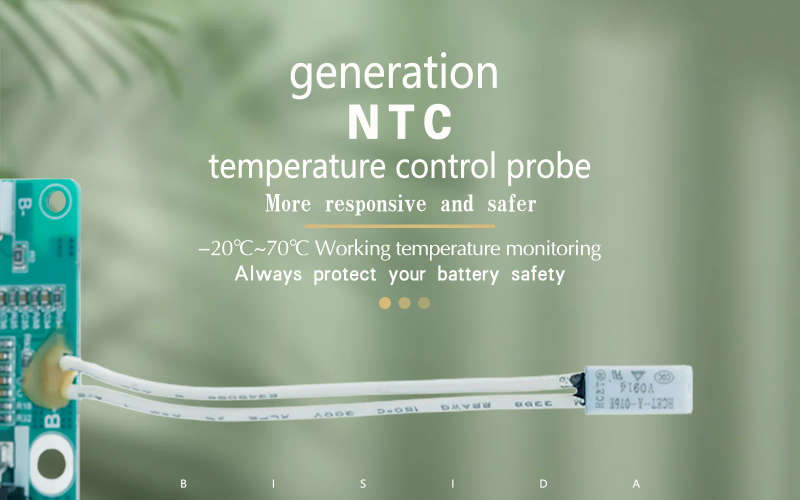

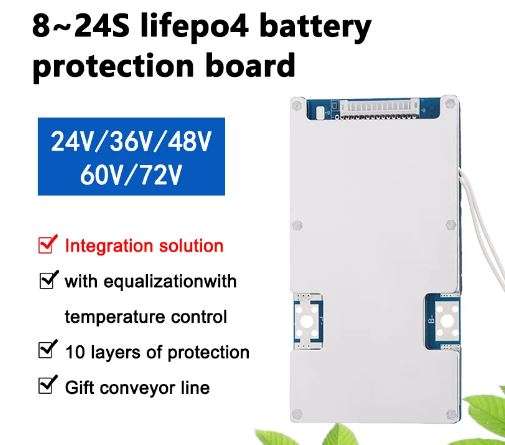

Bisida BMS 24V/36V/48V/60V/72v 50amp 8~24S Common Port with Balance and Temperature Control for 3.2v Lifepo4 Battery Packs (10006763)

The Bisida BMS is designed for 3.2v Lifepo4 battery packs and comes in various voltage options. It features a common port with balance and temperature control, ensuring optimal performance and safety. This BMS is compatible with 8~24S battery configurations and provides reliable protection against overcharging, over-discharging, and overheating.

Bisida's BMS is an integrated scheme, and SOC's accuracy is very high. The battery voltage, capacity, and internal resistance are consistent, and BMS can work better. Only people with professional electrical knowledge are recommended to buy assembly. Thank you for understanding.

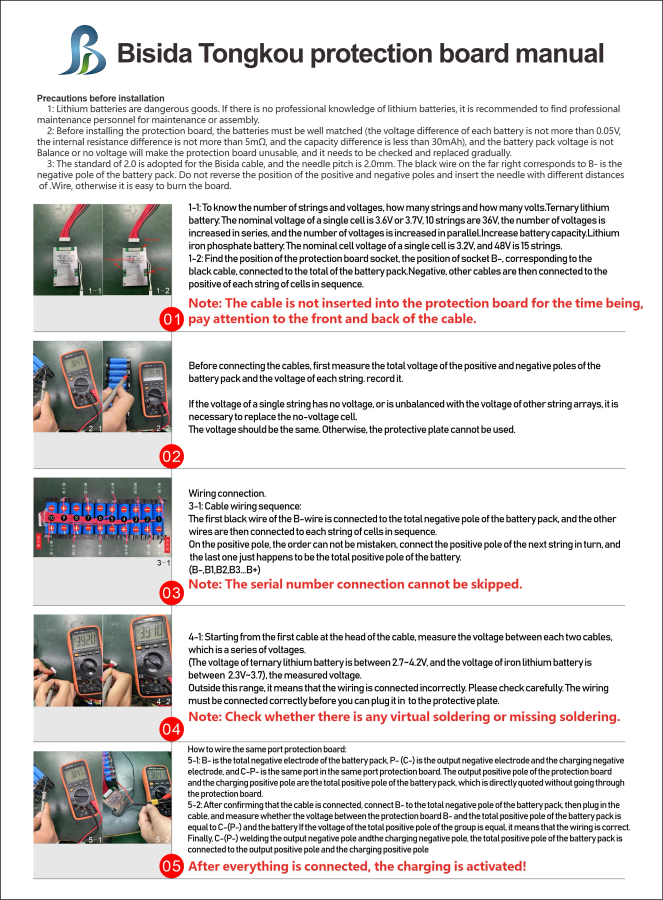

10strings of cables are 11pins (the number of each string is different, the number of cables is the number of strings + 1)

(8S-9P,15S-16P）

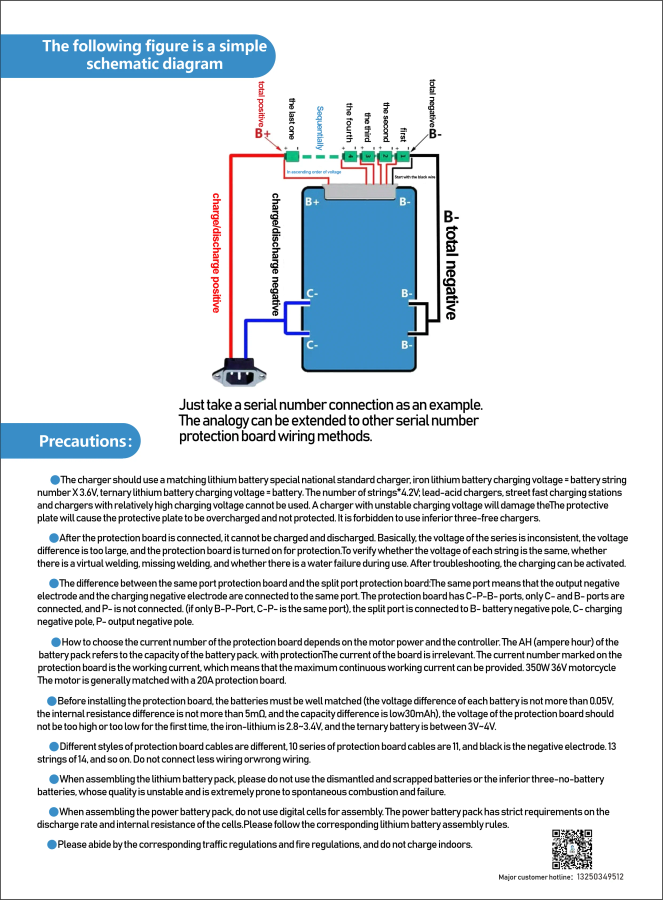

Common port：

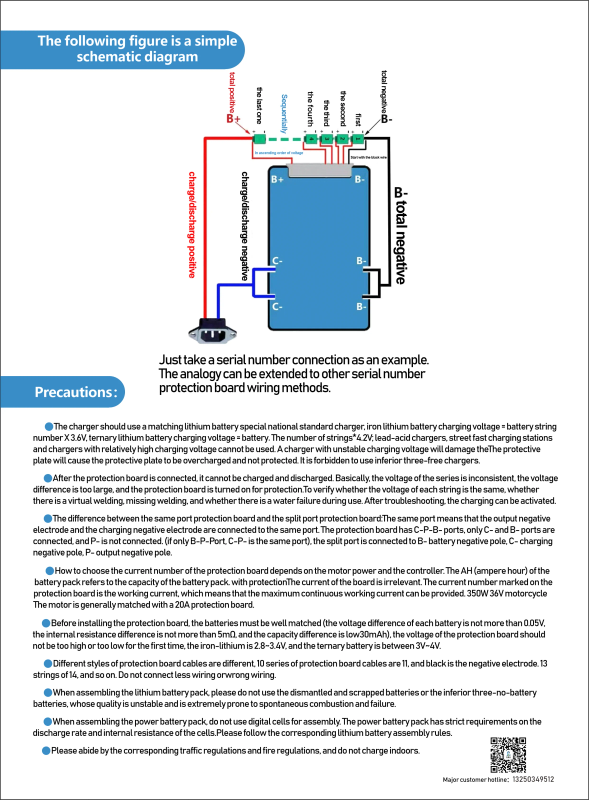

Common port: B- is the total negative electrode of the battery, C- is the negative electrode for charging

Size table---different ports

40A~50A: 64MM x 125MM x 10MM

Features:

The main functions are: over charge protection, over discharge protection, over current protection, short-circuit protection, temperature protection, Voltage balance(passive balance), etc.

Can provide 3S to 24S series solutions, provide 5A to 200A working current customization. Different voltages, currents. There are different parameter details. If you need to confirm. Please communicate with the seller to confirm accurate data.

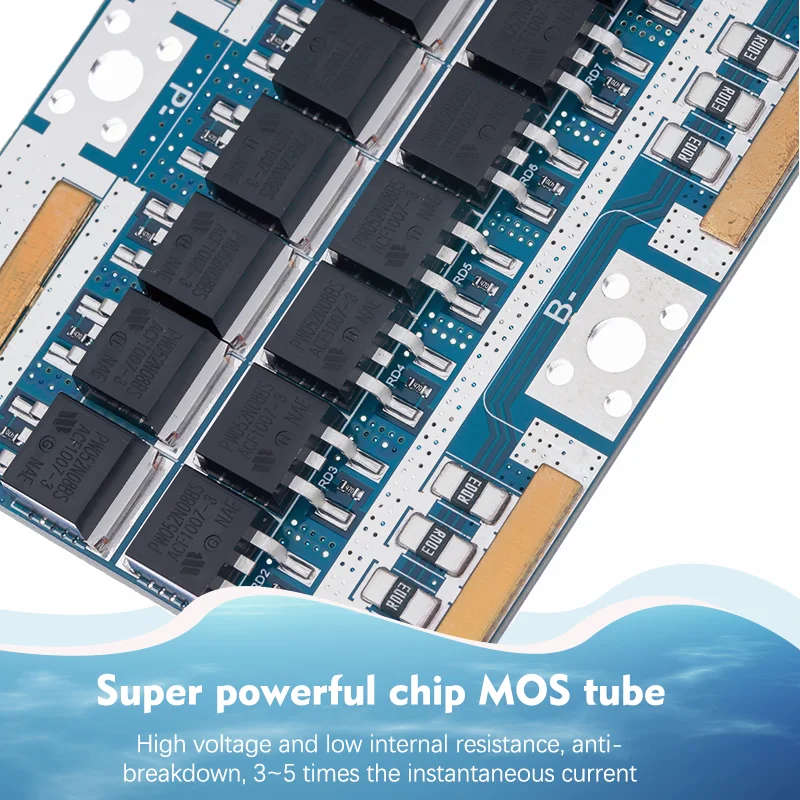

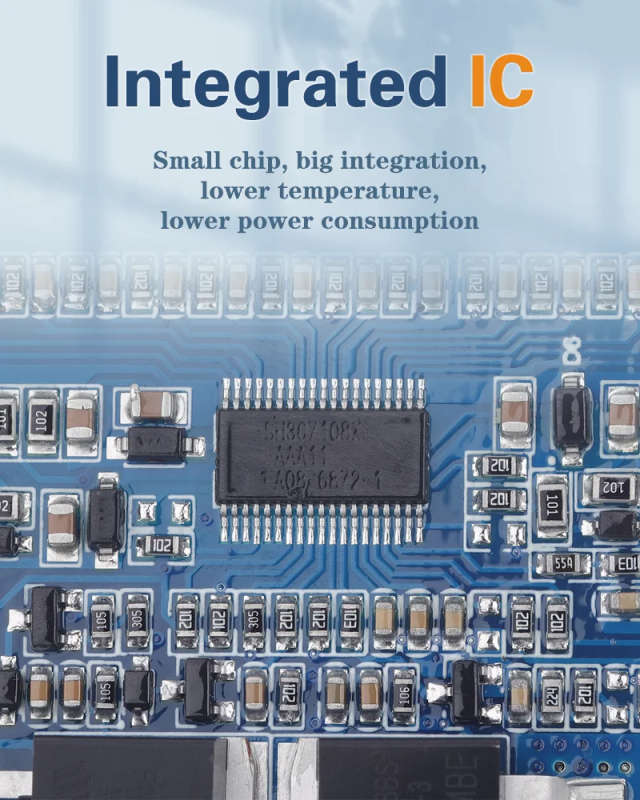

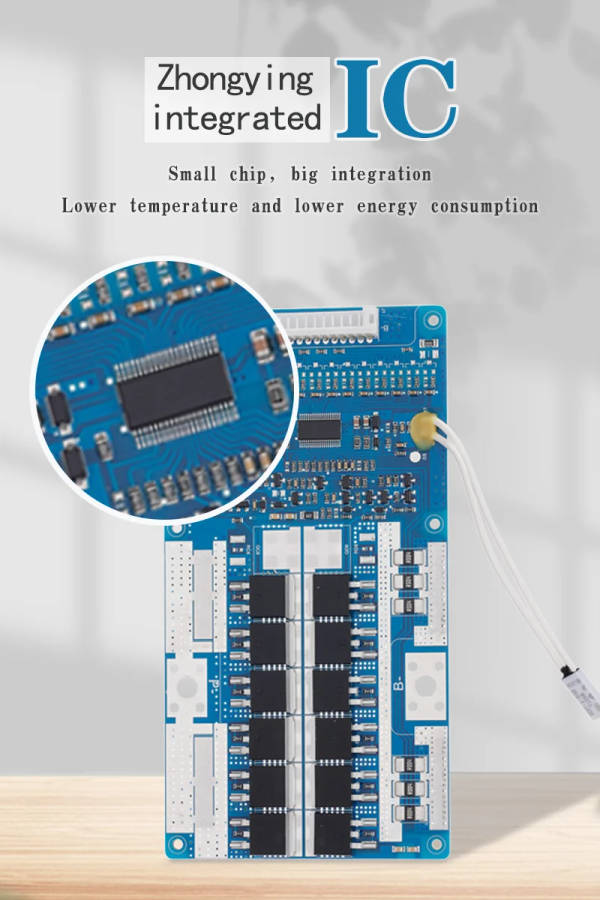

Use top quality (A-level) protective integrated circuit IC, from the solution of Industry car level. BMS manufactured by high quality Mos and IC imported.

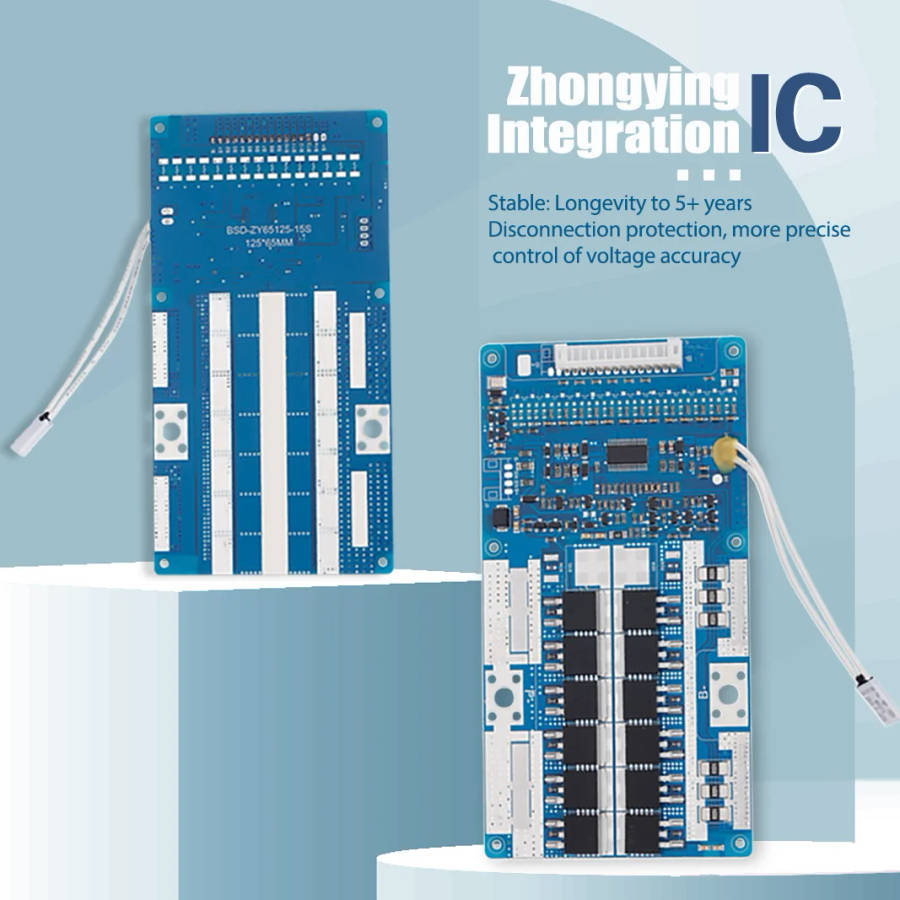

Double-sided PCB circuit board ,high anti-corrosion, high water resistance, high impedance ESD conformal Coating. Silicone sheet + aluminum sheet double-layer heat dissipation. Three anti-glue + insulation sheet, double-layer electrostatic insulation

Support customer samples, oem/odm, customization, if you have special needs, you can contact customer service. We will provide you with a complete solution.

Applicable battery:

Nominal voltage (single cell): 3.2v Lifepo4 battery

Instantaneous current: 3 to 5 times the working current.

Package Contents:

Battery protection board *1

Cable *1
