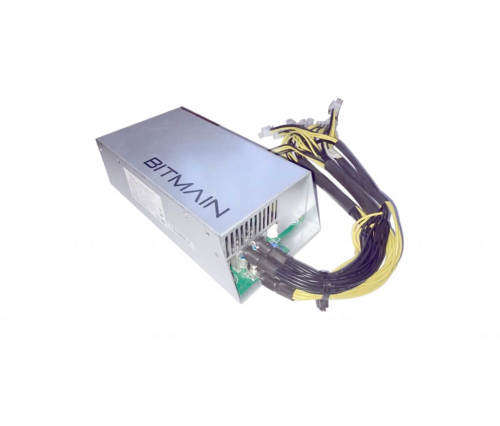

The APW3++ 1600w Series AC-DC Power supply is specifically designed with mining operations in mind, and combines high conversion efficiency and a strong dynamic performance into a power dense package. It also features short circuit, overload, overheat, low voltage and overload protections.
1) The air flow direction runs from the AC input to the DC output, which is the same configuration as most miners. This proves beneficial for those with large-scale mining operations where heat management is a major consideration.
2) The PCB uses a conformal coating to prevent damage from high voltage spark discharges on MOS pins, or near high-pressure solder joints when external conductive particles or dust enter the PSU.
3) The APW3++ 1600w can work stably in environments with a 50°C ambient temperature. If temperatures exceed 50°C, the PSU should be underclocked (refer to Max Load vs. Ambient Temperature Graph in the user guide for details). Considering the high temperature in mining operations, all internal components are selected with a standard of 105°C, so the APW3++12-1600 has a much longer lifespan than a general use PSU under similar high temperatures.
4) The APW3++ 1600w uses a PCI-E connector which is compatible with currently available ATX PSUs, as well as most bitcoin mining machines. One APW3++ 1600w can power up one S9 or two L3+ or one D3. This APW3++ batch has 9 pairs of 6 pin PCI-E connectors.
