Bixolon Dt Label Print Usb+Eth No Peeler 203Dpi

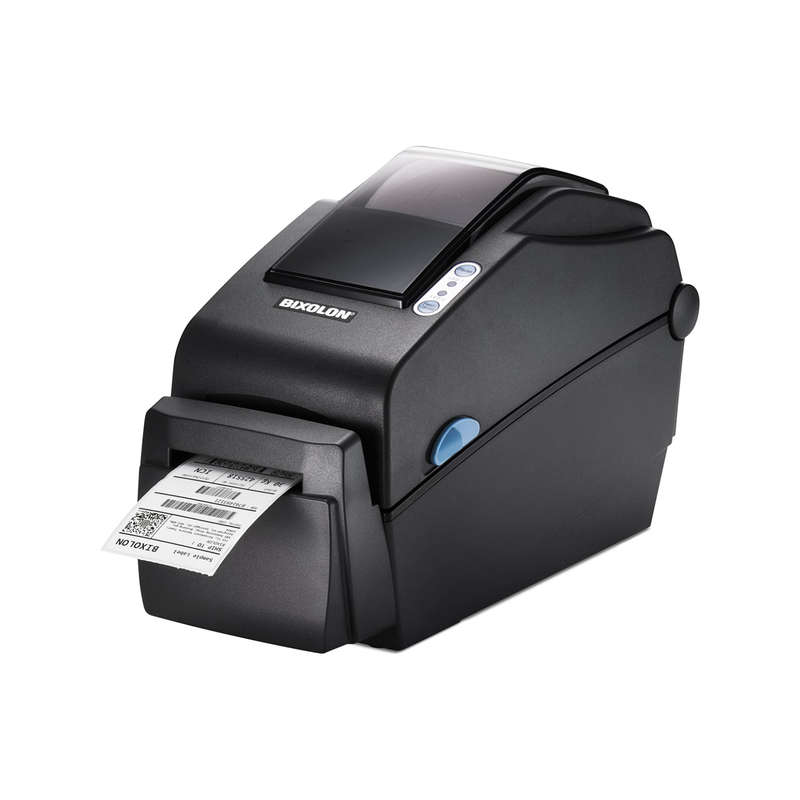

SLP-DX220 2 inch Direct Thermal Desktop Label Printer
Slim and Premium
Advanced Performance
- Printing speed up to 6 ips (152 mm/s)
- Fast data processing speed of various types of label
- The SLP-DX220 is fully compatible with market-leading programming language; SLCS, BPL-Z, BPL-E
- Automatic paper detection such as gap media, black mark media and short length media paper
Cost-Efficiency
- Dual Interface
- Standard: USB plus Serial
- Optional: USB plus Ethernet plus WLAN
- USB plus WLAN plus Bluetooth
- WLAN: 802.11b/g/n USB dongle type (Optional)
- Bluetooth: Built-in type, MFi iAP2 certified
User-Friendly Design
- Compatible with smart mobile devices
- Smart Bluetooth Auto Switch: Switching from iOS settings to standard Bluetooth mode
- Easy paper loading with adjustable paper guide
- Pause and cancel function-keys
Technical Specifications
Print Method
- Direct Thermal
Print Speed
- SLP-DX220: Up to 6 ips (152 mm/sec)
Print Resolution
- SLP-DX220: 203 dpi
Print Width
- SLP-DX220: Up to 54 mm
Print Length
- 6 2000 mm
Sensor
- Transmissive, Reflective (Adjustable), Head open
Media Type
- Gap, Black Mark, Notch, Continuous, Fan-Fold
Media Width
- 15 60 mm
Media Roll Diameter
- Up to 130 mm
Media Thickness
- 0.06 0.20 mm
Supply Method
- Easy Paper Loading
Dimensions (WxDxH)
- 120 x 230 x 170 mm (4.72 x 9.05 x 6.69 inch)
Weight
- 1.36 kg (2.99 lbs.)
Power
- EnergyStar Certified,
- External Power Adaptor 100-240V AC, 50/60Hz
Memory
- 64MB SDRAM, 128MB FlashROM
Interface Options
- Dual Interface
- Standard: USB plus Serial
Bluetooth:
- Built-in type, MFi iAP2 certified
Temperature
- Operating: 0 40 degrees Celsius (32 104 degrees Fahrenheit)
- Storage: -20 60 degrees Celsius (-4 140 degrees Fahrenheit)
Humidity
- Operating: 10 80 percent RH
- Storage: 10 90 percent RH
Emulation
- SLCS, BPL-Z, BPL-E
Drivers
- Windows Driver (Euro Plus/Seagull), OPOS Driver,
- Linux / Mac CUPS Driver,
- Virtual COM USB/Ethernet Driver, Utility Program,
- Label Artist
SDKs
- Android SDK, iOS SDK, Windows SDK
Fonts
- 10 SLCS Resident Bitmap Fonts
- One SLCS Resident Scalable Font
- 16 BPL-Z Resident Bitmap Fonts
- One BPL-Z Resident Scalable Font
- 5 BPL-E Resident Bitmap Fonts
- 23 Code Page
- Unicode supported (UTF-8, UTF-16LE, UTF-16BE)
Graphics
- Supporting user-defined fonts, graphics, formats, and logos
