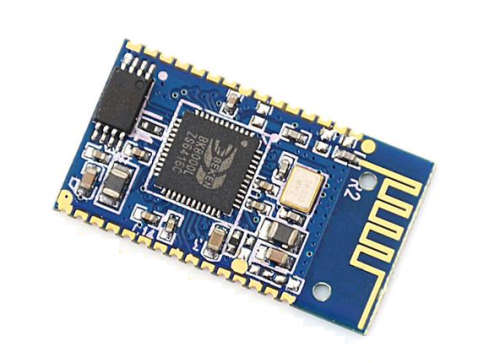

BK8000L F-6188 Wireless Bluetooth Stereo Audio Module Transmission ***LOCAL STOCK***

BK8000L F-6188 Wireless Bluetooth Stereo Audio Module Transmission

F-6188 Bluetooth module is a self-developed intelligent wireless audio data transmission product, which is a low-cost, cost-effective stand.
The body sound wireless transmission solution, the module uses BEKEN's BK8000L chip to provide high quality sound quality and compatibility for the module, and the overall performance is superior. The F-6188 Bluetooth module is driver-free. Customers only need to connect the module to the application, they can quickly realize the wireless transmission of music, enjoy the fun of wireless music, and support SPP programs.

This module is mainly used for short-distance music transmission, and can be easily set up with Bluetooth for digital products such as laptops, mobile phones, PDAs, etc.
Connected to achieve wireless transmission of music.
Bluetooth audio
Bluetooth stereo headset
Speakerphone
Bluetooth wireless transmission audio

1.Model:BK8000L
2.Name:F-6188 V4.0
3.Bluetooth :V2.1+EDR
4.Supply voltage :DC2.8-4.2V
5.Bluetooth protocol: HFPV1.5, A2DPV1.2, AVRCPV1.4, HSP1.2, GAVDP1.2, IOP
6.Working current :≤45mA
7.Standby current :<500uA
8.Temperature range: -40°C ~ + 85°C
9.Wireless transmission range: >10 meters
10.Transmission power :Class2, 4dbm
11.Sensitivity :-80dBm <0.1% BER
12.Frequency Range :2.4GHz ~ 2.480GHz
13.Decoding audio performance:SBC
14.SNR:≤75db
15.Board size 25 x 13.5mm

Download Manual here.

This item is available in stock and is not drop shipped. This avoids delays, customs charges and extra VAT.
