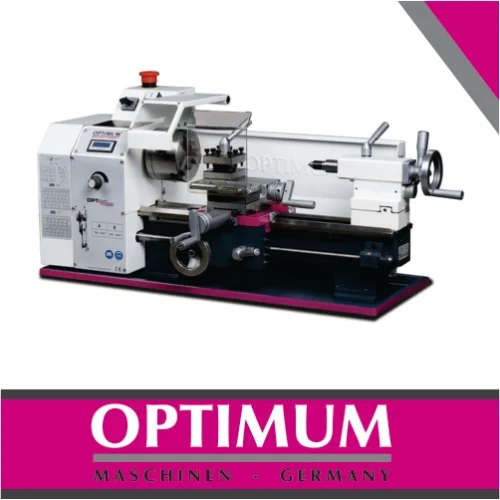

BL3420310 Optimum Lathe 200 x 300 Vario

Lathe with infinitely variable speed control and digital speed

BL3420310 LATHE D200 X 300 VARIO

Lathe with infinitely variable speed control and digital speed

Technical Specifications
Connection 230 V / 1 Ph ~50 Hz
Driving motor spindle 600 W
Spindle taper MT 3
Spindle hole
Tool holder seat
Rod opening lathe chuck
Tool holder seat height max. 12 mm
Centre height 100 mm
Centre width 300 mm
Turning diameter (max.) 200 mm
Turning over cross slide 110 mm
Bed width 100 mm
Spindle speeds 150 2,500 min-1
Number of steps 2 steps, electrically adjustable speed
Travel top slide 55 mm
Travel cross slide 75 mm
Longitudinal feed 0.1 / 0.2 mm/U
Pitch Metric (14) 0.25 3 mm/U (14)
Pitch Inch (12) 44 8 Gg/1 (12)
Tailstock seat MT 2
Tailstock sleeve travel 65 mm
Dimensions (L x W x H) 830 x 425 x 360 mm
Net weight 61 kg

Description

Lathe with infinitely variable speed control and digital speed
Precise manufacturing
Heavily ribbed prism bed made of steel casting, inductively hardened
and precision ground
Hardened and ground bed guideways
Hardened spindle nose (DIN 6350)
Guaranteed true running accuracy of the spindle nose better than 0.009 mm
Automatic longitudinal/leading spindle drive
With longitudinal slide, cross slide and top slide
Right-/left-handed rotation switchable on
Emergency-stop push button
Lathe chuck protection
Thrust bearing
Leading spindle run on two porous bearings
Large threading range due to set of change gears
Change gear train
EMC filter, class B (used in households)

Features:

Digital speed display

Easy to read digital speed display

Chip protection

at the top slide

Quadruplicate tool holder

turnable

Rolled trapezoid thread

Lead screw

Tailstock

Adjustable for taper turning
Tailstock spindle sleeve and handwheel with adjustable precision scaling of 0.02 mm

Main spindle

Hardened and with re-adjustable accurate tapper roller bearings
Taper roller bearing of P5 quality
Cylindrical centring consumption
H ardened spindle nose with a 21 mm spindle hole

Lathe chuck

True running accuracy 0.04 mm

Delivery Information

Three jaw chuck 100 mm
Steady centre MT 2 and MT 3
Splash board and Chip tray
Quadruple tool holder
Change gear kit
Operating tool
