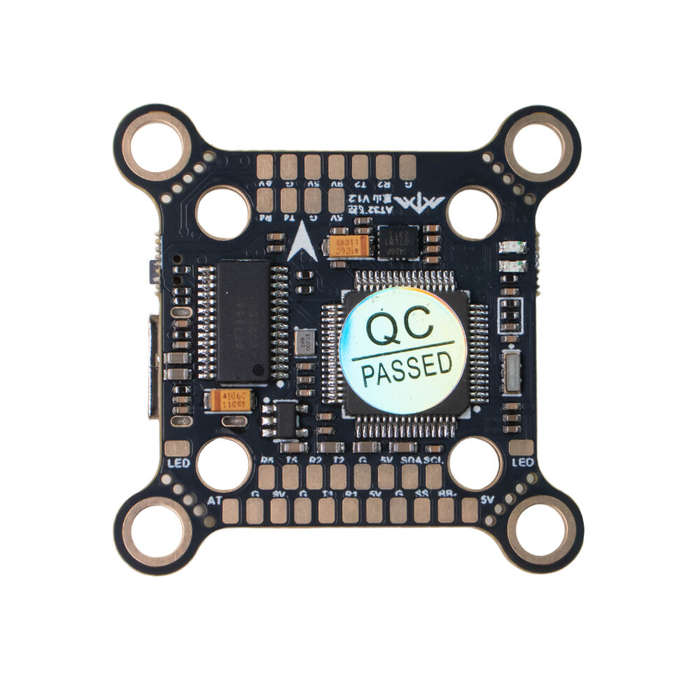

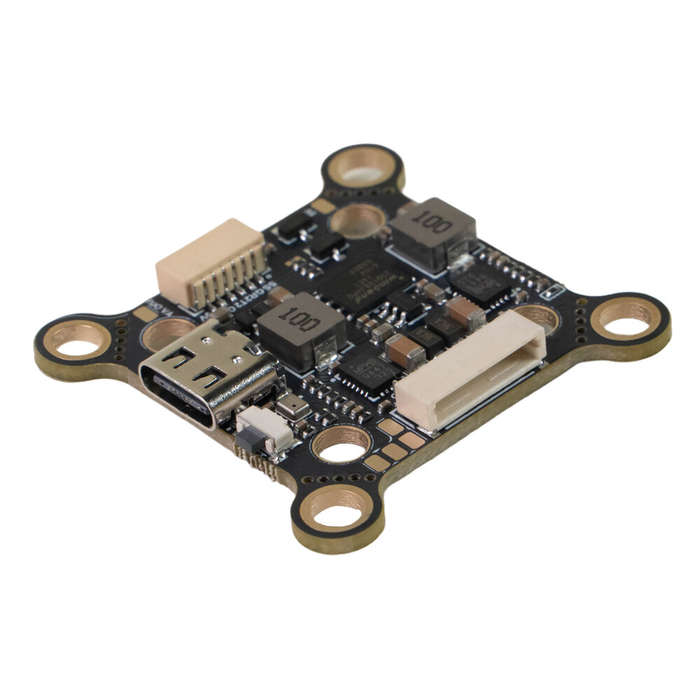

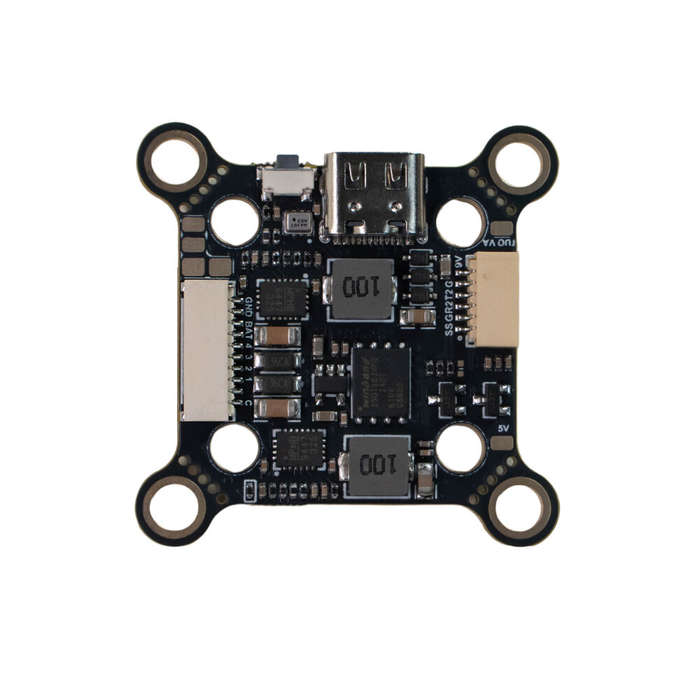

Specification:
Brand: Greatmountain
MCU: AT32 F435 RGT7
IMU: 42688-P/ASM330
Video Overlay/OSD: AT7456E
Barometer: Built-In Barometer
Flash Memory: 16M
BEC: 5V 3.5A / 9V 4A
TVS: Built-In 36V TVS
UART Ports: 4 Ports
Input Voltage: 3-6S Lipo
Product Weight: 6.5G
Product Dimensions: 30x30x6.5MM
Mounting Hole Size: 20/30.5MM
Receiver Protocols: CRSF/SBUS/IBUS/PBUS/WBUS
BB Ring: Supported
Motor Communication: Ports M1-M4 / Back-Solder Pads M5-M8
LED Solder Pads: 2 Ports
HD Transmission: DJI O4 / DJI O3 / Vista / Avatar HD Transmission
Configuration Software: Betaflight 10.10.0 (PC And Mobile)
Note: This flight controller does not support PWM signal and PPM signal!!
Package Included:
1 x Flight Controller
